XBLWDatasheet (PDF)

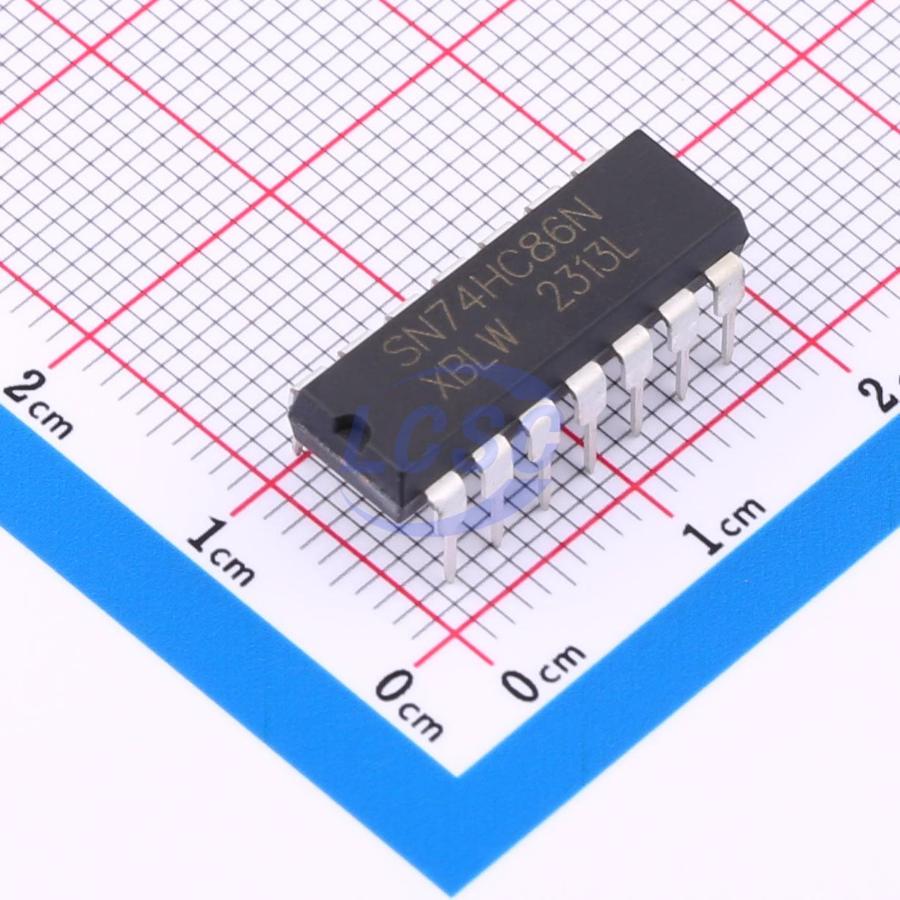

SN74HC86N(XBLW)
2V~6V 11ns 2uA DIP-14 Gates and Inverters RoHS
DIP-14ROHS CompliantActive
Quad 2-input Exclusive-or Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC86N(XBLW)
- Store part #
- C18723533
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,330 in stock
#C18723533
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.20 | ₹96.00 |
| 50+ | ₹15.39 | ₹769.50 |
| 150+ | ₹13.48 | ₹2,022.00 |
| 500+ | ₹12.05 | ₹6,025.00 |
| 2,000+ | ₹10.91 | ₹21,820.00 |
| 5,000+ | ₹10.33 | ₹51,650.00 |
5 × ₹19.20
₹96.00
excl. GST
₹113.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74HC86N(XBLW)
₹96.00 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 11ns
- Output Logic Level - Low
- 100mV
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+105℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 4.5V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 4;2
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.608 g
Overview
The SN74HC86 is a quad 2-input EXCLUSIVE-OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Detect phase differences in input signals
- Create a selectable inverter / buffer
Key features
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Specified from -40℃ to +125℃
- Packaging information: DIP-14/SOP-14/TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS86N(XBLW)#C42415784XBLW · DIP-14 | XBLW | DIP-14 | 1,445 | ₹24.14 · 1,445 in stock | View |
