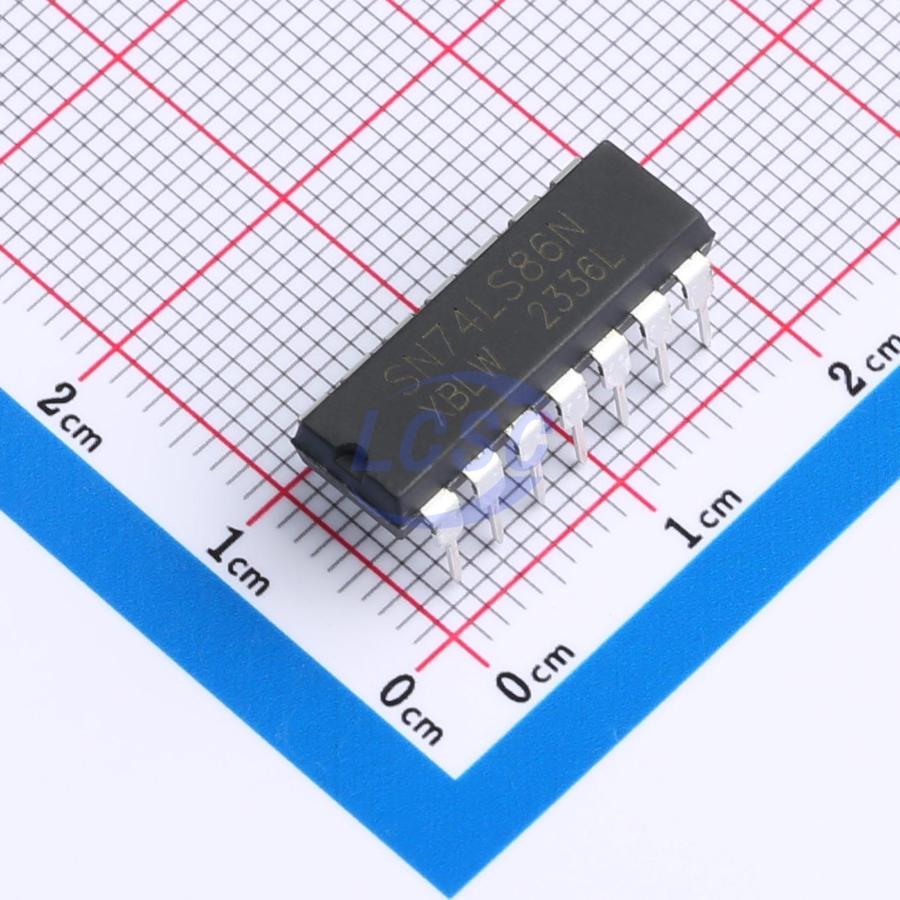

SN74LS86N(XBLW)
2uA 2V~6V 11ns@6V,15pF DIP-14 Gates and Inverters RoHS
DIP-14ROHS CompliantActive
Quad 2-input Exclusive-or Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LS86N(XBLW)
- Store part #
- C42415784
- Package / case
- DIP-14
- Category
- Gates and Inverters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,210 in stock
#C42415784
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.14 | ₹120.70 |
| 50+ | ₹19.25 | ₹962.50 |
| 150+ | ₹17.15 | ₹2,572.50 |
| 500+ | ₹14.53 | ₹7,265.00 |
| 2,500+ | ₹13.36 | ₹33,400.00 |
| 5,000+ | ₹12.65 | ₹63,250.00 |
5 × ₹24.14
₹120.70
excl. GST
₹142.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
SN74LS86N(XBLW)
₹120.70 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- 74LS
- Operating Temperature
- -20℃~+85℃
- Input Logic Level - High
- 1.2V~3.2V
- Input Logic Level - Low
- 800mV~2.8V
- Output Logic Level - High
- 2V~5.81V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Propagation Delay
- 11ns@6V,15pF
- Output Logic Level - Low
- 100mV;260mV
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.645 g
Overview
The SN74LS86 is a quad 2- input EXCLUSIVE- OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Detect phase differences in input signals
- Create a selectable inverter / buffer
Key features
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Specified from -20℃ to +85℃
- Packaging information: DIP-14/SOP-14/TSSOP-14
