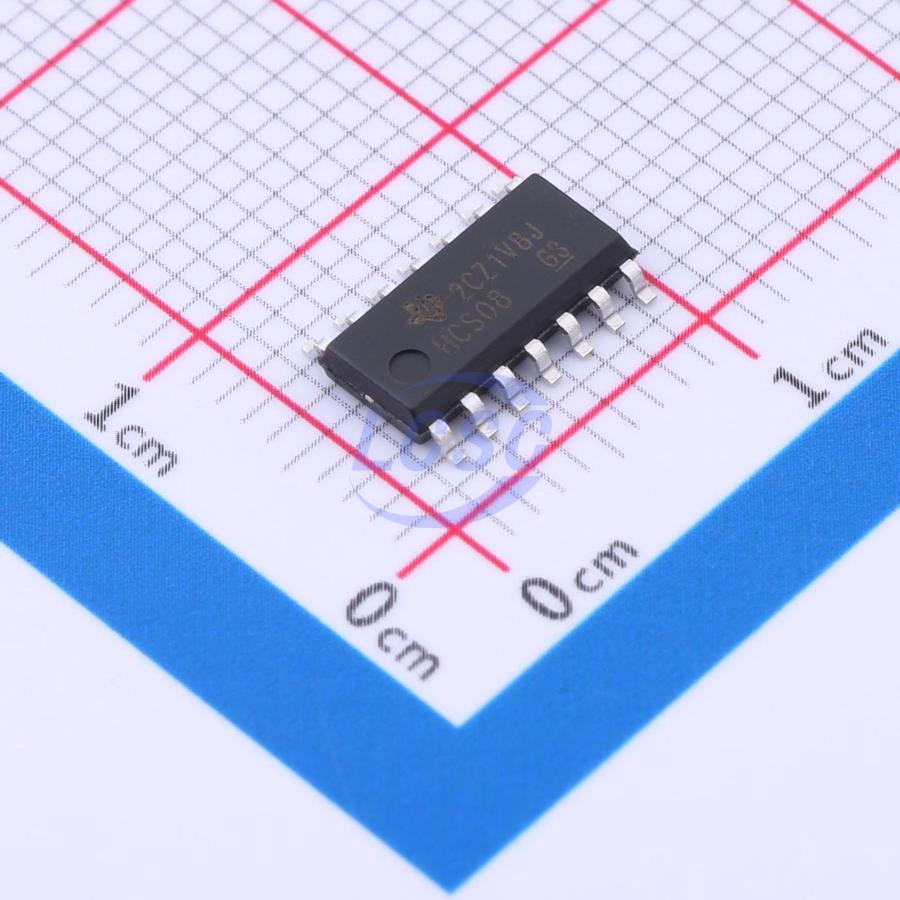

SN74HCS08DR
AND Gate IC 4 Channel Schmitt Trigger input SOIC-14
SOIC-14ROHS3 CompliantActive
Quad 2-Input AND Gates with Schmitt-Trigger Inputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HCS08DR
- Store part #
- C2868021
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,625 in stock
#C2868021
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.08 | ₹70.40 |
| 50+ | ₹12.21 | ₹610.50 |
| 150+ | ₹11.42 | ₹1,713.00 |
| 500+ | ₹10.43 | ₹5,215.00 |
| 2,500+ | ₹9.99 | ₹24,975.00 |
| 5,000+ | ₹9.72 | ₹48,600.00 |
5 × ₹14.08
₹70.40
excl. GST
₹83.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HCS08DR
₹70.40 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74HCS Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 220mV~330mV
- Propagation Delay
- 12ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 1V~3V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 5.4V~5.75V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 7.8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 7.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.402 g
Overview
This device contains four independent dual-input AND gates with Schmitt-trigger inputs. Each logic gate performs the Boolean function Y = A • B in positive logic.
Applications
- Combined power-good signals
- Combined enable signals
Key features
- Wide operating voltage range: 2V to 6V
- Schmitt-trigger inputs for slow or noisy input signals
- Low power consumption
- Typical I<sub>CC</sub> = 100nA
- Typical input leakage current = ±100nA
- Output drive ±7.8mA at 6V
- Operating temperature range: -40℃ to +125℃
