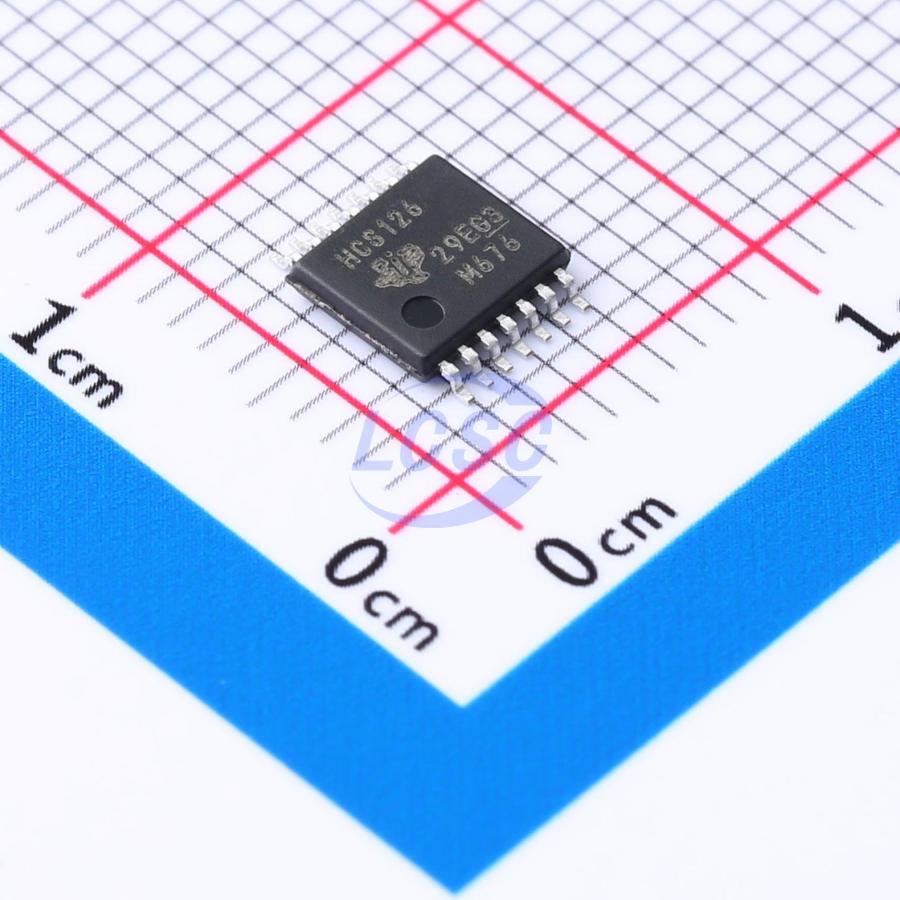

SN74HCS126PWR
Buffer 4 Element 1 Bit per Element Tri-State Output TSSOP-14
TSSOP-14ROHS CompliantActive
Quad buffer with three-state outputs and Schmitt-trigger inputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HCS126PWR
- Store part #
- C2864468
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,285 in stock
#C2864468
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.54 | ₹237.70 |
| 50+ | ₹39.25 | ₹1,962.50 |
| 150+ | ₹35.21 | ₹5,281.50 |
| 500+ | ₹31.61 | ₹15,805.00 |
| 2,000+ | ₹30.61 | ₹61,220.00 |
| 4,000+ | ₹30.02 | ₹1,20,080.00 |
5 × ₹47.54
₹237.70
excl. GST
₹280.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCS126PWR
₹237.70 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Input type
- Schmitt trigger
- Series
- 74HCS
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 1
- Number of Elements
- 4
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 2uA
- Propagation Delay
- 7ns@6V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.326 g
Overview
The device contains four independent buffers with three-state outputs and Schmitt-trigger inputs. Each logic gate performs the Boolean function Y = A in positive logic. Applying a low level to the OE pin places the outputs in a high-impedance state.
Applications
- Enable or disable digital signals
- Control indicator LEDs
- Debounce switches
- Eliminate slow or noisy input signals
Key features
- Wide operating voltage range: 2V to 6V
- Schmitt-trigger inputs for slow or noisy input signals
- Low power consumption
- ICC typical: 100nA
- Input leakage current typical: ±100nA
- Output drive: ±7.8mA at 6V
- Operating temperature range: -40℃ to +125℃, TA
