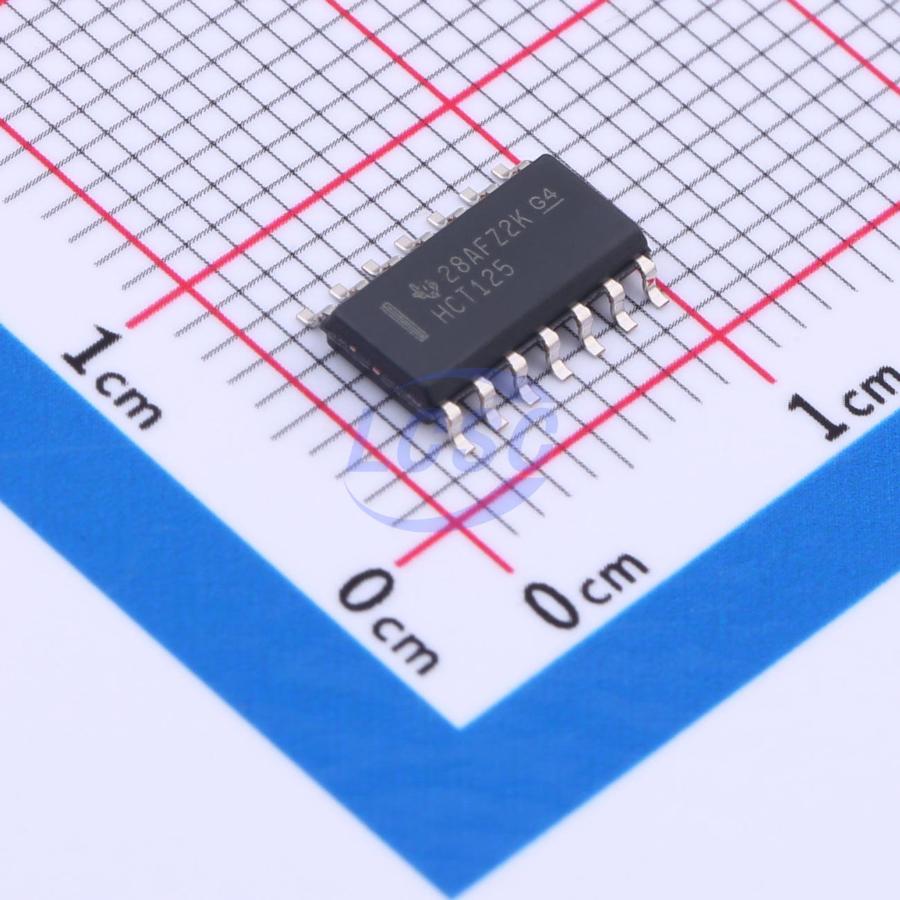

SN74HCT125DR
4.5V~5.5V 1 4 18ns@5.5V,50pF SOIC-14 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-14ROHS3 CompliantActive
Quadruple Bus Buffer Gate with Three-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT125DR
- Store part #
- C352957
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,860 in stock
#C352957
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.24 | ₹246.20 |
| 50+ | ₹39.02 | ₹1,951.00 |
| 150+ | ₹34.62 | ₹5,193.00 |
| 500+ | ₹29.16 | ₹14,580.00 |
| 2,500+ | ₹26.72 | ₹66,800.00 |
| 5,000+ | ₹25.26 | ₹1,26,300.00 |
5 × ₹49.24
₹246.20
excl. GST
₹290.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HCT125DR
₹246.20 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74HCT
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 18ns@5.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
SNx4HCT125 contains four independent buffers with TTL-compatible inputs and three-state outputs. Each gate performs the Boolean function Y = A in positive logic.
Key features
- Operating voltage range: 4.5V to 5.5V
- High-current outputs drive up to 15 LSTTL loads
- Low power consumption, I<sub>CC</sub> max 80μA
- t<sub>pd</sub> typical = 12ns
- Output drive ±6mA at 5V
- Low input current, max 1μA
- TTL voltage-compatible inputs
- High-current 3-state outputs for bus driving or buffered memory address registers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HCT125D,653#C5962Nexperia · SOIC-14 | Nexperia | SOIC-14 | 86,505 | ₹27.51 · 86,505 in stock | View |
 | CD74HCT126M96#C2675949TI · SOIC-14 | TI | SOIC-14 | 28 | ₹40.35 · 28 in stock | View |
 | 74HCT126S14-13#C460508DIODES · SO-14 | DIODES | SO-14 | 20 | ₹16.63 · 20 in stock | View |
 | MC74ACT125DR2G#C113254onsemi · SOIC-14 | onsemi | SOIC-14 | 10 | ₹50.06 · 10 in stock | View |
 | SN74AHCT125DR#C155176TI · SOIC-14 | TI | SOIC-14 | 3,307 | ₹52.91 · 3,307 in stock | View |
