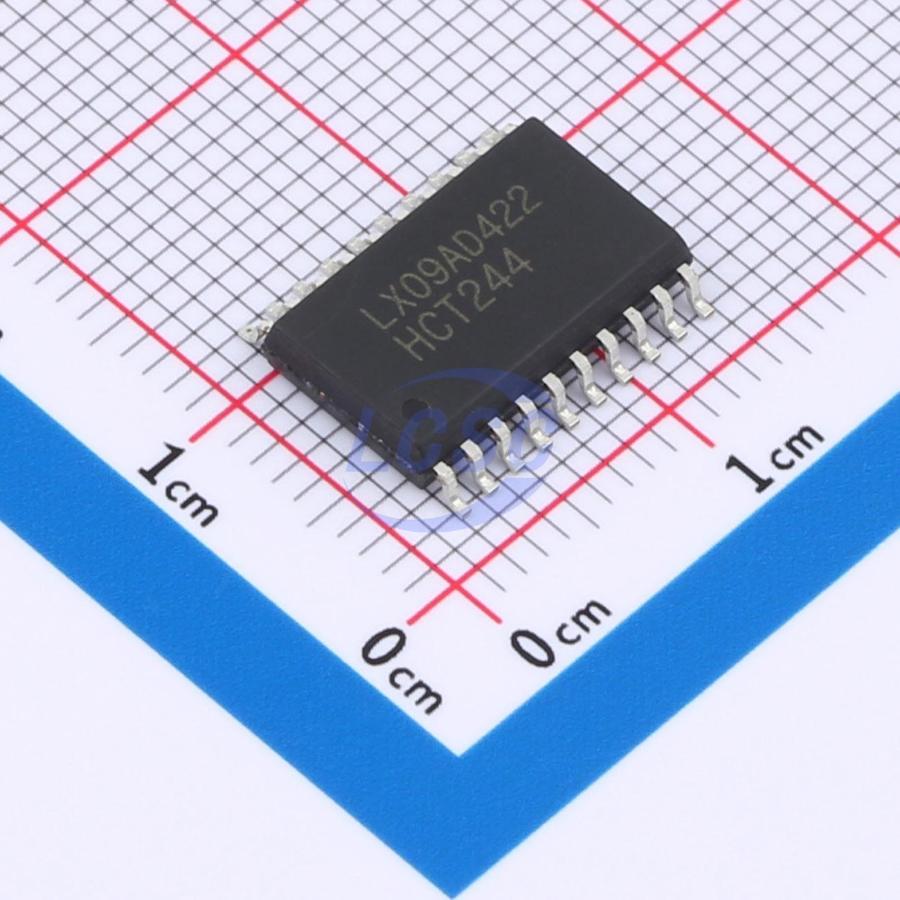

SN74HCT244DWR(LX)
Buffer Driver 2 Element 4 Bit per Element Tri-State Output SOP-20
SOP-20RoHSActive
8-channel buffer/line driver with three-state control SN74HC/HCT244 (LX)
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HCT244DWR(LX)
- Store part #
- C32710667
- Package / case
- SOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C32710667
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.77 | ₹153.85 |
| 50+ | ₹27.12 | ₹1,356.00 |
| 150+ | ₹25.56 | ₹3,834.00 |
| 500+ | ₹23.62 | ₹11,810.00 |
| 2,000+ | ₹22.74 | ₹45,480.00 |
| 4,000+ | ₹22.23 | ₹88,920.00 |
5 × ₹30.77
₹153.85
excl. GST
₹181.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCT244DWR(LX)
₹153.85 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74HCT
- Current - Output Low(IOL)
- 6mA
- Output Type
- Tri-State
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 8uA
- Propagation Delay
- 13ns@4.5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.777 g
Overview
The SN74HC/HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. It features two output enable inputs (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance state. Inputs include clamp diodes, allowing input interfaces to be connected to voltages exceeding VCC using current-limiting resistors.
Key features
- Input levels: SN74HC244: CMOS, SN74HCT244: TTL
- 8-channel bus interface
- Non-inverting tri-state outputs
- Operating temperature range: -40°C~+125°C
- Package types: DIP20/SOP20/TSSOP20/SOP(M)20
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74ACT244DWR(LX)#C32710668lingxingic · SOP-20 | lingxingic | SOP-20 | 150 | ₹27.03 · 150 in stock | View |
