lingxingic

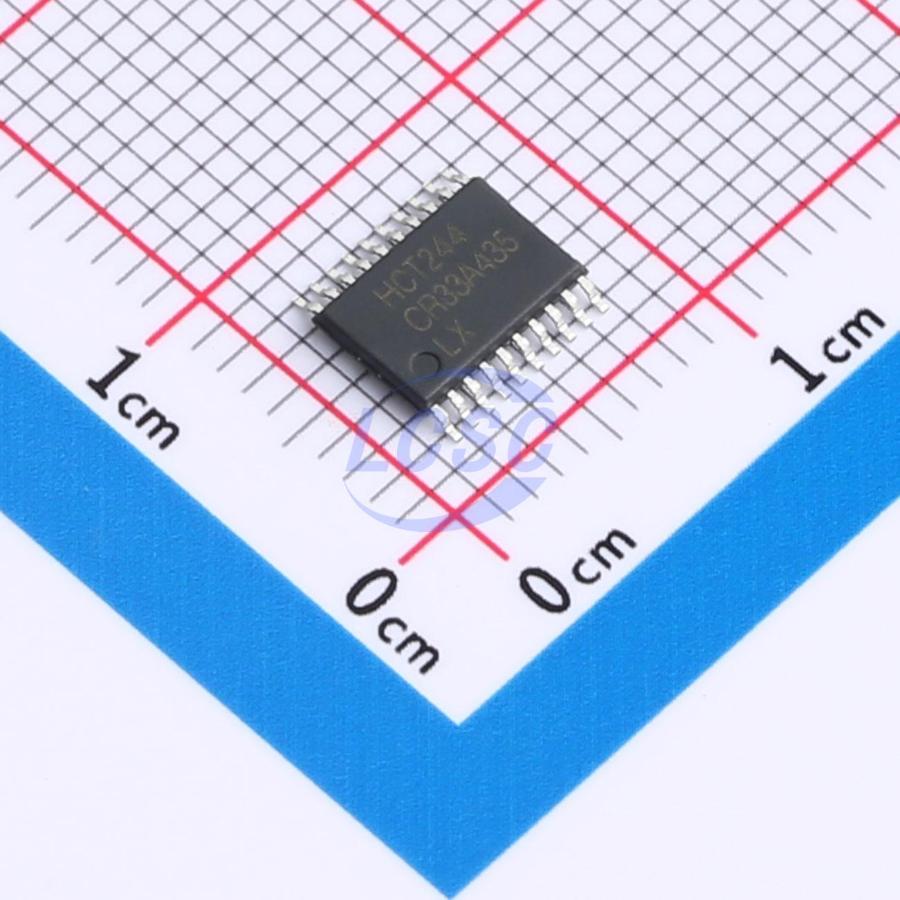

SN74HCT244PWR(LX)

Buffer Driver 2 Element 4 Bit per Element Tri-State Output TSSOP-20

TSSOP-20RoHSActive

8-channel buffer/line driver with three-state control

Manufacturer: lingxingic
Manufacturer part #: SN74HCT244PWR(LX)
Store part #: C41413107
Package / case: TSSOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,835 in stock

#C41413107

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
5+	₹20.60	₹103.00
50+	₹16.02	₹801.00
150+	₹14.06	₹2,109.00
500+	₹11.63	₹5,815.00
2,500+	₹10.53	₹26,325.00
4,000+	₹9.88	₹39,520.00

Quantity (min 5, multiples of 5)

5 × ₹20.60

₹103.00

excl. GST

₹121.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74HCT244PWR(LX)

₹103.00 for 5 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 6mA
Voltage - Supply: 4.5V~5.5V
Series: 74HCT
Current - Output Low(IOL): 6mA
Output Type: Tri-State
Number of Bits per Element: 4
Channel Type: Unidirectional
Number of Elements: 2
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 8uA
Propagation Delay: 13ns@4.5V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.178 g

Overview

The SN74HC/HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. It features two output-enable inputs (1OE and 2OE), each controlling four of the 3-state outputs. A high level on nOE causes the outputs to assume a high-impedance state. Inputs are clamped with diodes to allow the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
