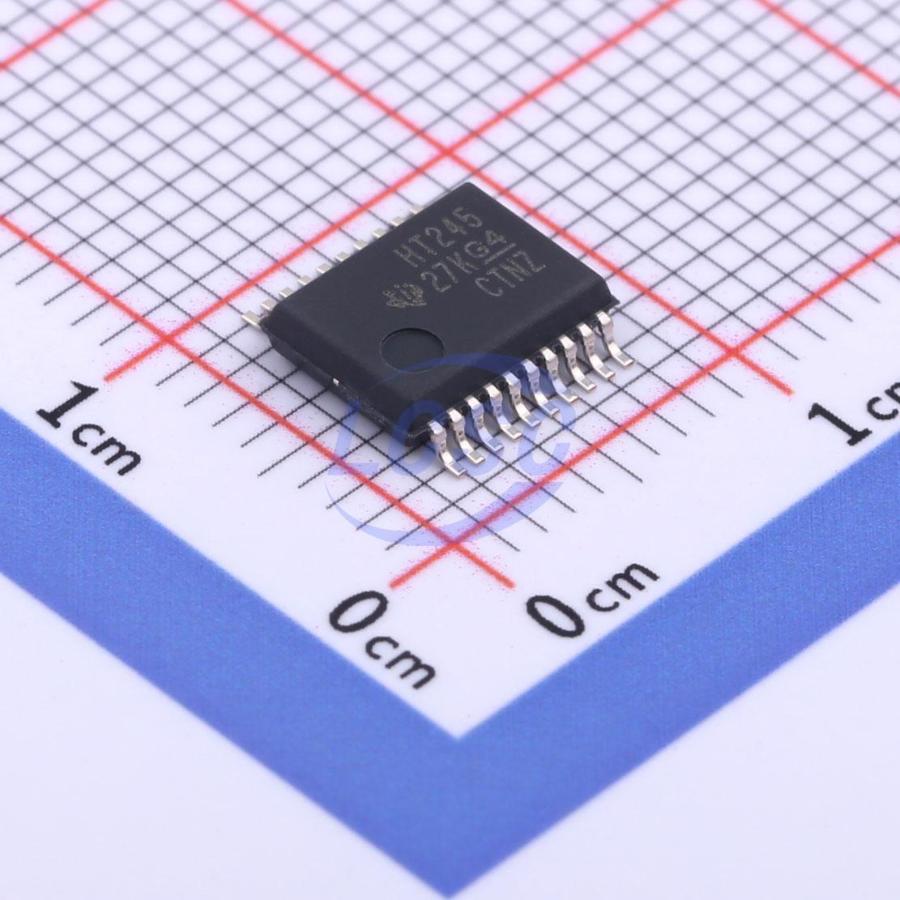

SN74HCT245DBR
Transceiver 1 Element 8 Bit per Element Tri-State Output SSOP-20-208mil
SSOP-20-208milROHS3 CompliantActive
8-bit bus transceiver with three-state outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT245DBR
- Store part #
- C2676027
- Package / case
- SSOP-20-208mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,598 in stock
#C2676027
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.48 | ₹83.48 |
| 10+ | ₹70.69 | ₹706.90 |
| 30+ | ₹61.59 | ₹1,847.70 |
| 100+ | ₹53.99 | ₹5,399.00 |
| 500+ | ₹51.82 | ₹25,910.00 |
| 1,000+ | ₹50.31 | ₹50,310.00 |
1 × ₹83.48
₹83.48
excl. GST
₹98.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCT245DBR
₹83.48 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Series
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 14ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
Applications
- Factory Automation & Control
- Grid Infrastructure
- Electronic Point of Sale
- Multi-Function Printers
- Motor Drivers
- Memory
- Telecom Infrastructure
Key features
- Operating voltage range: 4.5V to 5.5V
- High-current 3-state outputs — direct bus drive or up to 15 LSTTL loads
- Low power consumption, ICC max = 80μA
- tpd typical = 14 ns
- Output drive ±6mA at 5V
- Low input current, max 1μA
- TTL-compatible inputs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74ABT245BDBR#C2675846TI · SSOP-20-208mil | TI | SSOP-20-208mil | 1 | ₹155.10 · 1 in stock | View |
 | SN74ALS245ADBR#C2863354TI · SSOP-20-208mil | TI | SSOP-20-208mil | 6 | ₹129.97 · 6 in stock | View |
 | SN74AHCT245DBR#C8173TI · SSOP-20-208mil | TI | SSOP-20-208mil | 6 | ₹87.21 · 6 in stock | View |
 | SN74ABT245BMDBREP#C2675968TI · SSOP-20-208mil | TI | SSOP-20-208mil | 3 | ₹671.45 · 3 in stock | View |
 | CY74FCT245ATQCT#C202136TI · SSOP-20 | TI | SSOP-20 | 160 | ₹139.30 · 160 in stock | View |
