TIDatasheet (PDF)

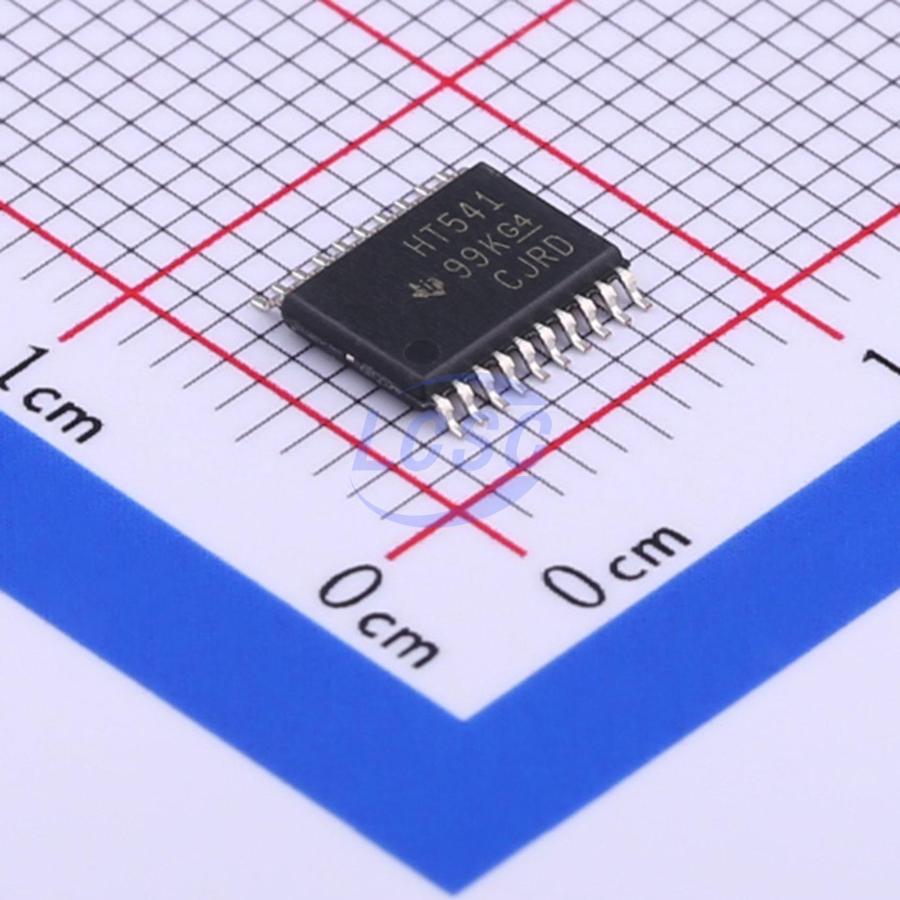

SN74HCT541PWR
4.5V~5.5V 8 1 21ns@5.5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT541PWR
- Store part #
- C436096
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,093 in stock
#C436096
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.06 | ₹67.06 |
| 10+ | ₹52.31 | ₹523.10 |
| 30+ | ₹46.01 | ₹1,380.30 |
| 100+ | ₹38.21 | ₹3,821.00 |
| 500+ | ₹34.52 | ₹17,260.00 |
| 1,000+ | ₹32.56 | ₹32,560.00 |
1 × ₹67.06
₹67.06
excl. GST
₹79.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCT541PWR
₹67.06 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Series
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 21ns@5.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.209 g
Overview
These octal buffers and line drivers are designed to have the performance of the popular ’HC240 series devices and to offer a pinout with inputs and outputs on opposite sides of the package. This arrangement greatly facilitates printed circuit board layout. The 3-state control gate is a 2-input NOR. If either output-enable (OE1 or OE2) input is high, all eight outputs are in the high-impedance state. The ’HCT541 devices provide true data at the outputs.
Applications
- System bus interface driving
- Signal line driving
- Signal buffering applications requiring tri-state output
Key features
- Operating Voltage Range of 4.5 V to 5.5 V
- High-Current 3-State Outputs Interface Directly With System Bus or Can Drive Up To 15 LSTTL Loads
- Low Power Consumption, 80 μA Max ICC
- Typical tₚd = 12 ns
- ±6 mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Inputs Are TTL-Voltage Compatible
- Data Flow-Through Pinout (All Inputs on Opposite Side From Outputs)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ74HCT244BGN#C52145528JSCJ · TSSOP-20 | JSCJ | TSSOP-20 | 990 | ₹30.92 · 990 in stock | View |
 | 74HCT541PW,118#C131314Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 2,456 | ₹92.03 · 2,456 in stock | View |
| 74HCT244PW,118-JSM#C53114424JSMSEMI · TSSOP-20 | JSMSEMI | TSSOP-20 | 2,045 | ₹22.68 · 2,045 in stock | View | |
 | MC74HCT541ADTR2G#C904082onsemi · TSSOP-20 | onsemi | TSSOP-20 | 173 | ₹50.31 · 173 in stock | View |
| MM74HCT541MTC#C897491onsemi · TSSOP-20 | onsemi | TSSOP-20 | 81 | ₹89.87 · 81 in stock | View | |
