XBLW

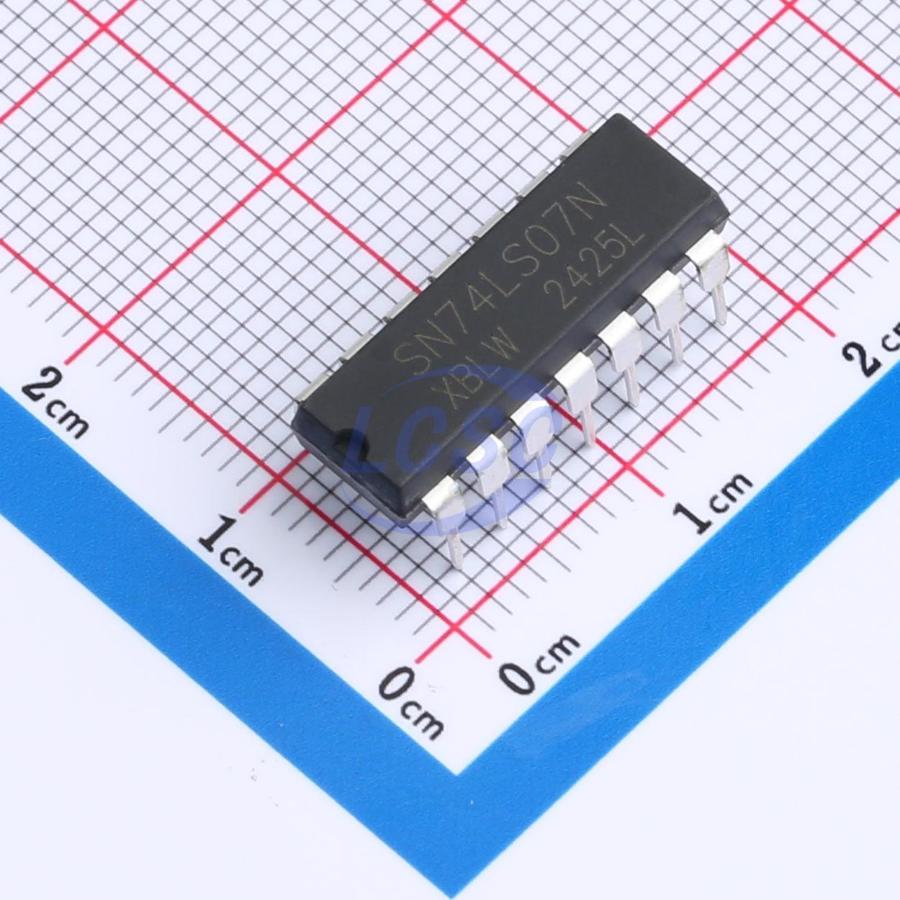

SN74LS07N(XBLW)

2V~6V 6 6 10ns@4.5V,50pF DIP-14 Buffers, Drivers, Receivers, Transceivers RoHS

DIP-14ROHS CompliantActive

Hex Buffer with Open-drain outputs

Manufacturer: XBLW
Manufacturer part #: SN74LS07N(XBLW)
Store part #: C42395514
Package / case: DIP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

995 in stock

#C42395514

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹30.26	₹151.30
50+	₹23.69	₹1,184.50
150+	₹20.88	₹3,132.00
500+	₹17.37	₹8,685.00
2,500+	₹15.80	₹39,500.00
5,000+	₹14.86	₹74,300.00

Quantity (min 5, multiples of 5)

5 × ₹30.26

₹151.30

excl. GST

₹178.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 25 per tube

SN74LS07N(XBLW)

₹151.30 for 5 + GST

Specifications

Series: 74LS
Voltage - Supply: 2V~6V
Output Type: Open-drain
Number of Bits per Element: 6
Channel Type: Unidirectional
Number of Elements: 6
Operating Temperature: -20℃~+85℃
Quiescent Supply Current: 2uA
Propagation Delay: 10ns@4.5V,50pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.535 g

Overview

The SN74LS07 is a contains six buffers. The outputs of the SN74LS07is open-drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. The open-drain outputs require pull-up resistors to perform correctly.
