TIDatasheet (PDF)

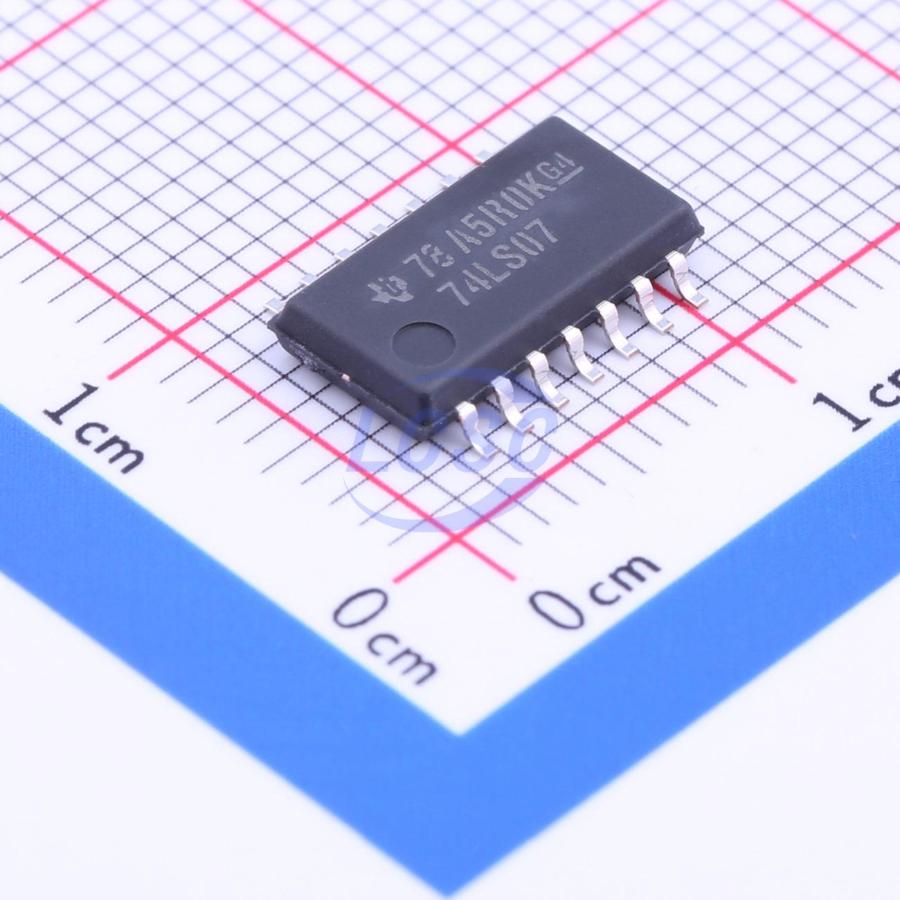

SN74LS07NSR
4.75V~5.25V 6 10ns@5V,15pF SOP-14-208mil Buffers, Drivers, Receivers, Transceivers RoHS
SOP-14-208milROHS3 CompliantActive
Hex Buffers and Drivers With Open-Collector High-Voltage Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LS07NSR
- Store part #
- C89005
- Package / case
- SOP-14-208mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,987 in stock
#C89005
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹158.28 | ₹158.28 |
| 10+ | ₹132.49 | ₹1,324.90 |
| 30+ | ₹118.38 | ₹3,551.40 |
| 100+ | ₹102.35 | ₹10,235.00 |
| 500+ | ₹89.12 | ₹44,560.00 |
| 1,000+ | ₹85.86 | ₹85,860.00 |
1 × ₹158.28
₹158.28
excl. GST
₹186.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LS07NSR
₹158.28 for 1 + GST
Specifications
- Function
- Level shifting
- Current - Output High(IOH)
- 250uA
- Series
- 74LS
- Voltage - Supply
- 4.75V~5.25V
- Output Type
- Open Collector
- Current - Output Low(IOL)
- 40mA
- Channel Type
- Unidirectional
- Number of Elements
- 6
- Operating Temperature
- 0℃~+70℃
- Propagation Delay
- 10ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
These hex buffers and drivers feature high- voltage open- collector outputs to interface with high- level circuits or for driving high- current loads. They are also characterized for use as buffers for driving TTL inputs. The SN74LS07 devices have a rated output voltage of 30 V. The maximum sink current is 40 mA. These circuits are compatible with most TTL families. Inputs are diode- clamped to minimize transmission- line effects, which simplifies design. Typical power dissipation is 140 mW, and average propagation delay time is 12 ns.
Applications
- AV Receivers
- Audio Docks: Portable
- Blu-ray Players and Home Theaters
- MP3 Players or Recorders
- Personal Digital Assistants (PDA)
- Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
- Solid-State Drives (SSD): Client and Enterprise
- TVs: LCD, Digital, and High-Definition (HDTV)
- Tablets: Enterprise
- Video Analytics: Server
- Wireless Headsets, Keyboards, and Mice
Key features
- Convert TTL Voltage Levels to MOS Levels
- High Sink-Current Capability
- Input Clamping Diodes Simplify System Design
- Open-Collector Driver for Indicator Lamps and Relays
