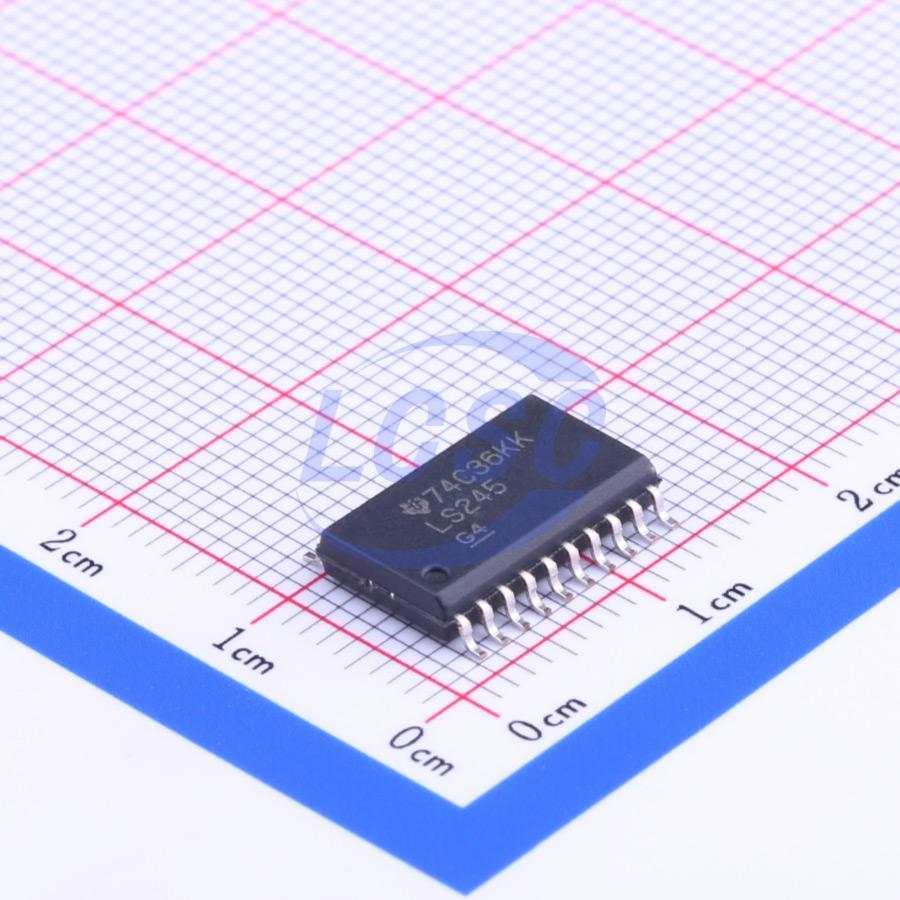

SN74LS245DWR
Schmitt trigger 4.75V~5.25V 8 12ns@5V,45pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS CompliantActive
Octal Bus Transceivers With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LS245DWR
- Store part #
- C129580
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,926 in stock
#C129580
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.59 | ₹105.59 |
| 10+ | ₹86.09 | ₹860.90 |
| 30+ | ₹76.32 | ₹2,289.60 |
| 100+ | ₹66.57 | ₹6,657.00 |
| 500+ | ₹60.94 | ₹30,470.00 |
| 1,000+ | ₹57.89 | ₹57,890.00 |
1 × ₹105.59
₹105.59
excl. GST
₹124.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LS245DWR
₹105.59 for 1 + GST
Specifications
- Function
- Output enable
- Input type
- Schmitt trigger
- Current - Output High(IOH)
- 15mA
- Voltage - Supply
- 4.75V~5.25V
- Series
- 74LS
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Operating Temperature
- 0℃~+70℃
- Propagation Delay
- 12ns@5V,45pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.747 g
Overview
These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The SNx4LS245 devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction control (DIR) input. The output-enable (OE) input can disable the device so that the buses are effectively isolated.
Applications
- Building Automation
- Electronic Point of Sale
- Factory Automation and Control
- Test and Measurement
Key features
- 3-State Outputs Drive Bus Lines Directly
- PNP Inputs Reduce DC Loading on Bus Lines
- Hysteresis at Bus Inputs Improves Noise Margins
- Typical Propagation Delay Times Port to Port, 8 ns
