lingxingicDatasheet (PDF)

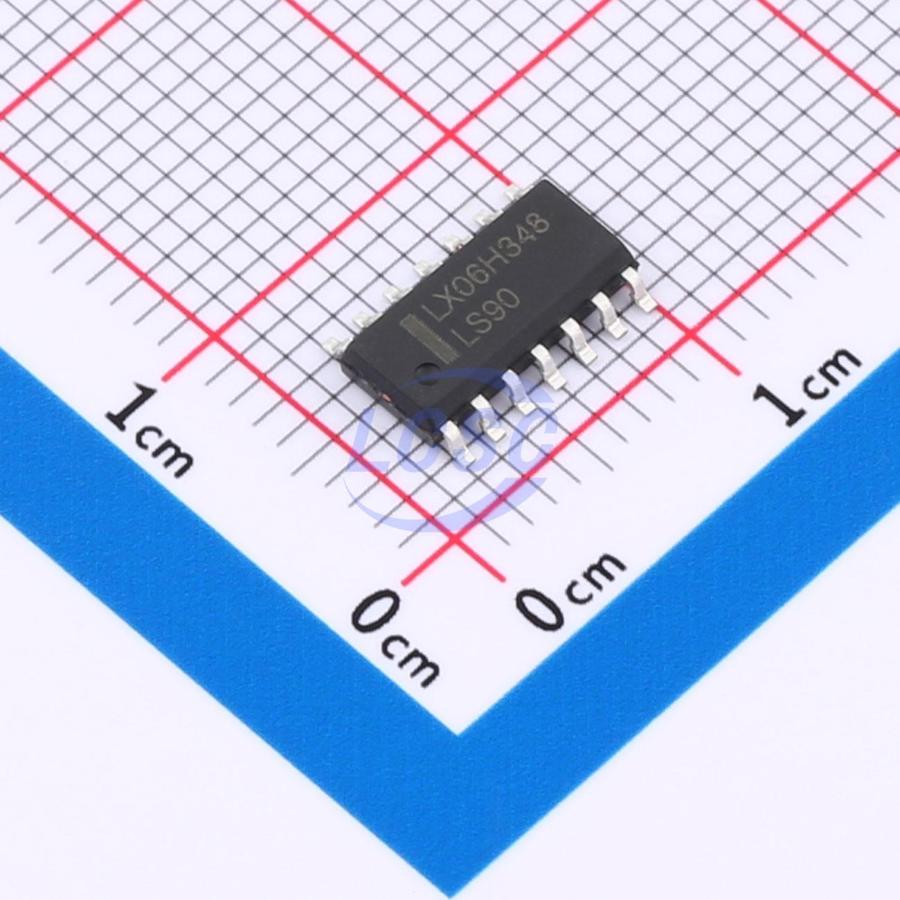

SN74LS90DR(LX)
Falling Edge 1 32MHz SOP-14 Counters, Dividers
SOP-14RoHSActive
Decade and Binary Counters
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LS90DR(LX)
- Store part #
- C22466311
- Package / case
- SOP-14
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,455 in stock
#C22466311
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.29 | ₹166.45 |
| 50+ | ₹29.17 | ₹1,458.50 |
| 150+ | ₹27.41 | ₹4,111.50 |
| 500+ | ₹25.22 | ₹12,610.00 |
| 2,500+ | ₹23.07 | ₹57,675.00 |
| 5,000+ | ₹22.49 | ₹1,12,450.00 |
5 × ₹33.29
₹166.45
excl. GST
₹196.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS90DR(LX)
₹166.45 for 5 + GST
Specifications
- Logic Family
- 74LS
- Voltage - Supply
- 2V~6V
- Trigger Type
- Falling Edge
- Operating Temperature
- -40℃~+125℃
- Reset
- Asynchronous
- Number of Elements
- 1
- Propagation Delay
- 50ns@5V,15pF
- Count Rate
- 32MHz
- Features
- Multi-mode counting;Reset function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.25 g
Overview
The SN74LS90 is a decade and binary counter. Output QA is connected to in CKB for BCD count. Output QD is disconnected to input CKA for bi - quinary count. In the counting modes, state changes are initiated by the falling edge of the clock.
Key features
- Temperature range: -40°C to +125°C
- Packaging information: DIP14/SOP14/TSSOP14
