TIDatasheet (PDF)

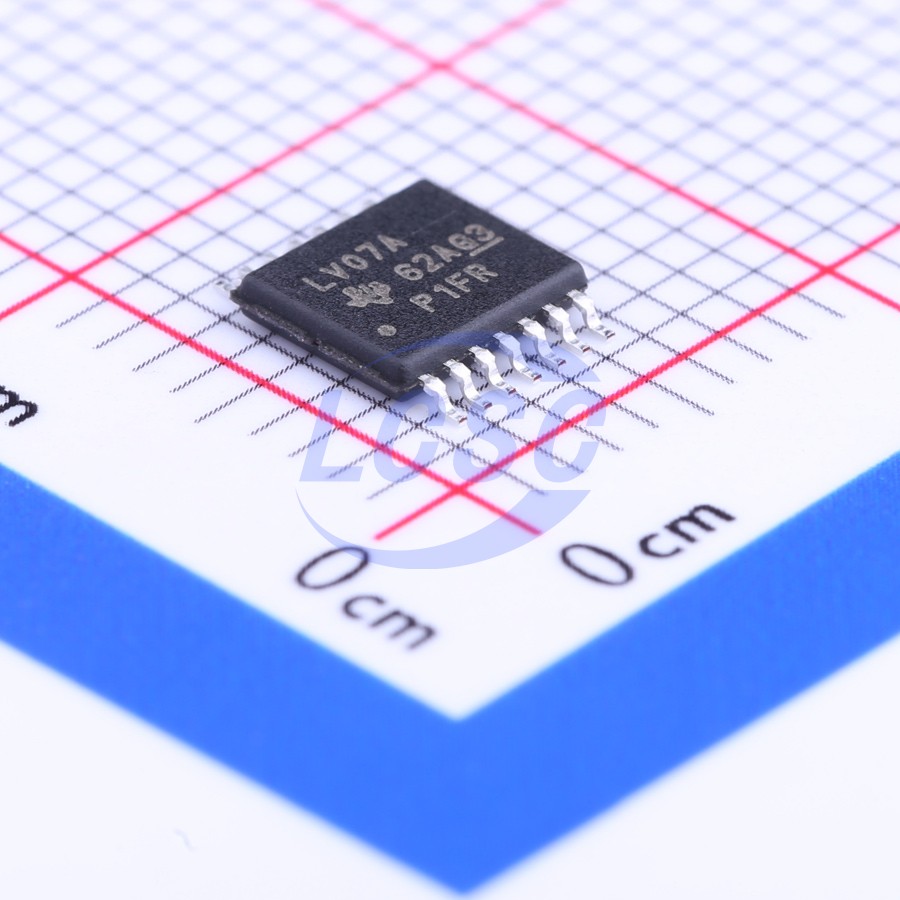

SN74LV07APWR
2V~5.5V 1 6 7.5ns@5V,50pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-14ROHS3 CompliantActive
Hex Buffers/Drivers With Open-Drain Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LV07APWR
- Store part #
- C133848
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,690 in stock
#C133848
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.16 | ₹215.80 |
| 50+ | ₹33.58 | ₹1,679.00 |
| 150+ | ₹29.48 | ₹4,422.00 |
| 500+ | ₹24.36 | ₹12,180.00 |
| 2,000+ | ₹22.08 | ₹44,160.00 |
| 4,000+ | ₹20.70 | ₹82,800.00 |
5 × ₹43.16
₹215.80
excl. GST
₹254.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV07APWR
₹215.80 for 5 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Open-drain
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 20uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 2.5uA
- Series
- 74LV
- Current - Output Low(IOL)
- 16mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 6
- Propagation Delay
- 7.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
These hex buffers/drivers are designed for 2- V to 5.5- V VCC operation. The SN74LV07A device performs the Boolean function Y = A in positive logic.
Applications
- Servers
- Telecom Infrastructures
- TV Set-Top Boxes
Key features
- 2-V to 5.5-V VCC Operation
- Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) >2.3V at VCC = 3.3V, TA = 25℃
- Outputs are Disabled During Power Up and Power Down With Inputs Tied to VCC
- Support Mixed-Mode Voltage Operation on All Ports
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model
