TIDatasheet (PDF)

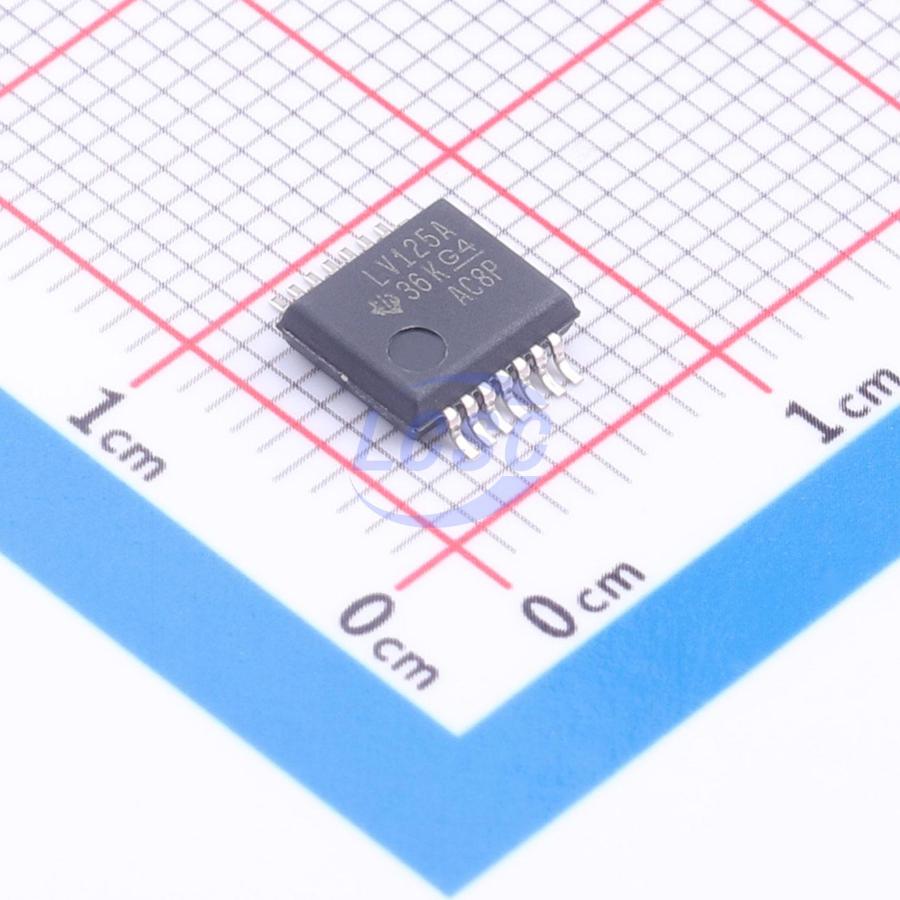

SN74LV125ADBR
2V~5.5V 4 4 9.5ns@5V,50pF SSOP-14-5.2mm Buffers, Drivers, Receivers, Transceivers RoHS
SSOP-14-5.2mmROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- SN74LV125ADBR
- Store part #
- C2864033
- Package / case
- SSOP-14-5.2mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
945 in stock
#C2864033
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.49 | ₹127.45 |
| 50+ | ₹24.93 | ₹1,246.50 |
| 150+ | ₹24.55 | ₹3,682.50 |
| 500+ | ₹24.17 | ₹12,085.00 |
5 × ₹25.49
₹127.45
excl. GST
₹150.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV125ADBR
₹127.45 for 5 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 20uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 16mA
- Series
- 74LV
- Current - Output Low(IOL)
- 16mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Propagation Delay
- 9.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.629 g
Overview
SN74LV125A quad bus buffer gates are designed for 2V to 5.5V VCC operation.
Applications
- Flow meters
- SSD: Enterprise
- Power over Ethernet (PoE)
- Programmable Logic Controllers
- Motor drive & control
- Electronic Point of Sale
Key features
- 2V to 5.5V VCC operation
- tpd max 6ns at 5V
- VOLP (output ground bounce) typical < 0.8V (VCC = 3.3V, TA = 25℃)
- VOHV (output VOH undershoot) typical > 2.3V at VCC = 3.3V, TA = 25℃
- Mixed-mode voltage operation on all ports
- Partial power-down mode support
- Latch-up performance exceeds 250mA per JESD 17
- ESD protection exceeds JESD 22: 4000V HBM, 200V MM, –2000V CDM
