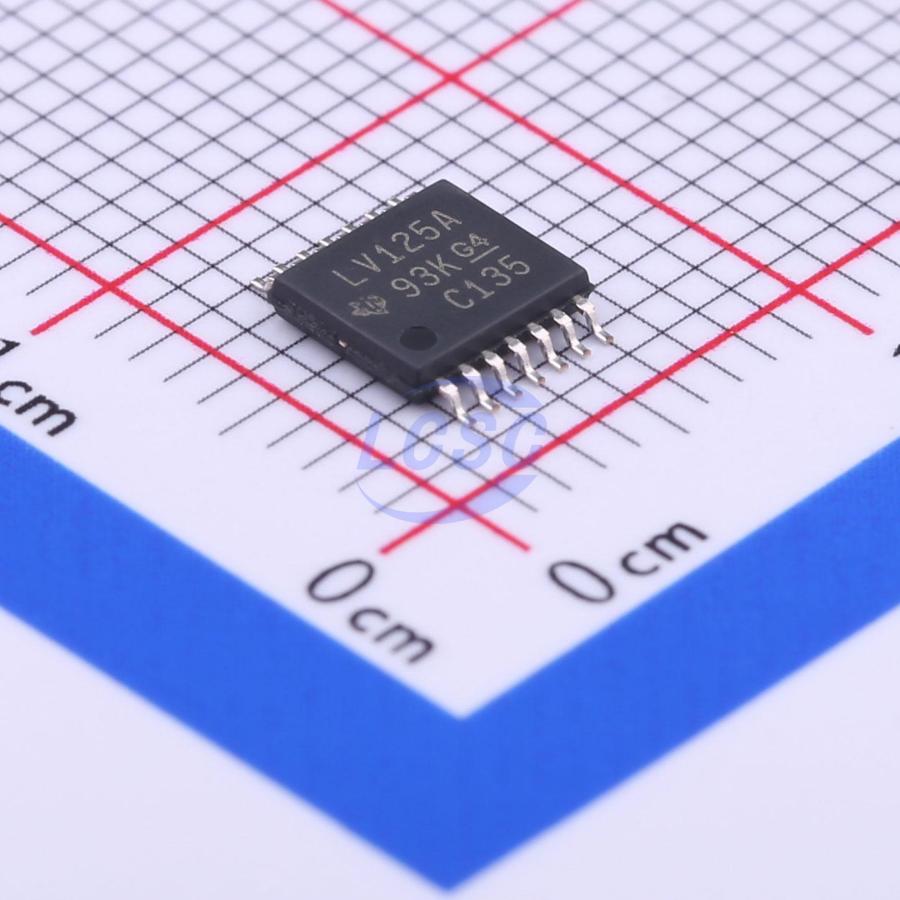

SN74LV125APWR
2V~5.5V 1 4 7.5ns@5V,50pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-14ROHS3 CompliantActive
Quadruple Bus Buffer Gates With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LV125APWR
- Store part #
- C406868
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,470 in stock
#C406868
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.84 | ₹62.84 |
| 10+ | ₹50.01 | ₹500.10 |
| 30+ | ₹44.57 | ₹1,337.10 |
| 100+ | ₹37.61 | ₹3,761.00 |
| 500+ | ₹34.57 | ₹17,285.00 |
| 1,000+ | ₹30.01 | ₹30,010.00 |
1 × ₹62.84
₹62.84
excl. GST
₹74.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV125APWR
₹62.84 for 1 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 20uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 16mA
- Series
- 74LV
- Current - Output Low(IOL)
- 16mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Propagation Delay
- 7.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.199 g
Overview
The SN74LV125A quadruple bus buffer gate is designed for 2-V to 5.5-V operation.
Applications
- Flow Meters
- Solid State Drives (SSDs): Enterprise
- Power Over Ethernet (PoE)
- Programmable Logic Controllers
- Motor Drives and Controls
- Electronic Points of Sale
Key features
- 2-V to 5.5-V operation
- Max t(pd) of 6 ns at 5 V
- Typical V(OLP) (Output Ground Bounce) < 0.8 V at V(CC)=3.3 V, T(A)=25 ℃
- Typical V(OHV) (Output V(OH) Undershoot) > 2.3 V at V(CC)=3.3 V, T(A)=25 ℃
- Support Mixed-Mode Voltage Operation on All Ports
- Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22: 4000-V Human-Body Model, 200-V Machine Model, 2000-V Charged-Device Model
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS4GT126XQ#C42459616RUNIC · TSSOP-14 | RUNIC | TSSOP-14 | 250 | ₹25.51 · 250 in stock | View |
 | RS4GT125XQ#C42459614RUNIC · TSSOP-14 | RUNIC | TSSOP-14 | 3,435 | ₹25.51 · 3,435 in stock | View |
 | SN74AHC126PWR#C132984TI · TSSOP-14 | TI | TSSOP-14 | 1,940 | ₹47.47 · 1,940 in stock | View |
 | 74VHC125MTCX#C6143onsemi · TSSOP-14 | onsemi | TSSOP-14 | 172 | ₹66.03 · 172 in stock | View |
 | SN74HCS126QPWRQ1#C2867187TI · TSSOP-14 | TI | TSSOP-14 | 6 | ₹97.57 · 6 in stock | View |
