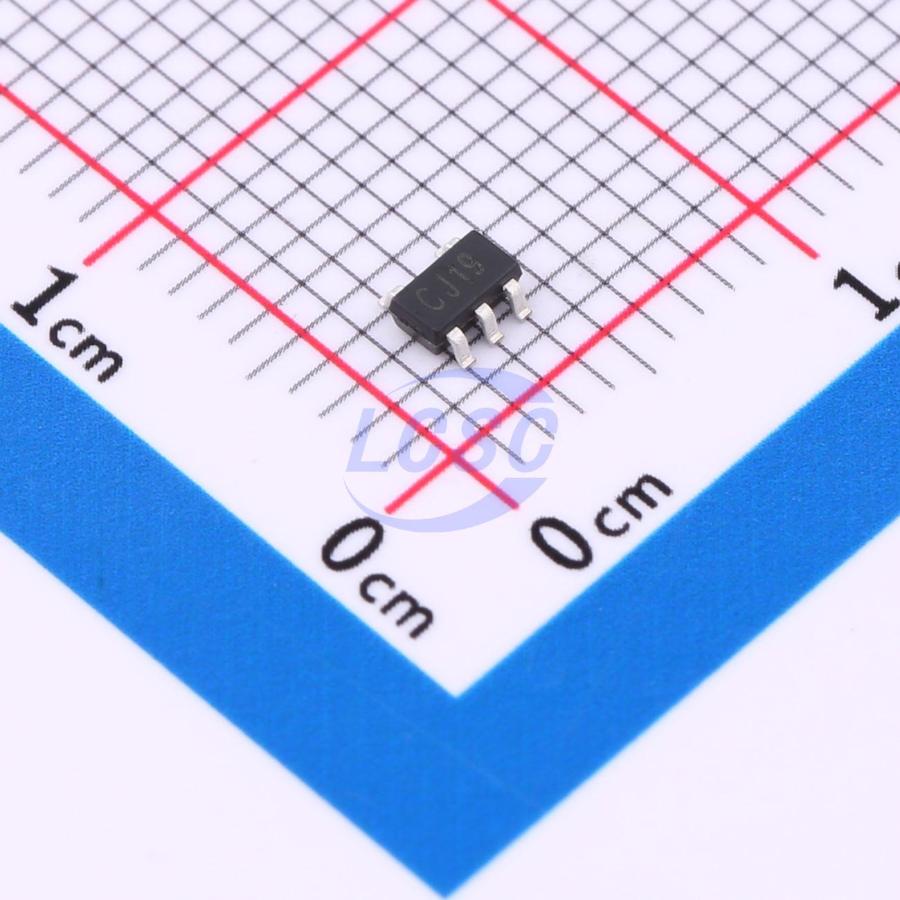

SN74LV1T125DB(LX)
Buffer Driver Tri-State Output SOT-23-5
SOT-23-5RoHSActive
SN74LV1T125 (LX) Single-supply Single-channel Level-shifting Buffer/Line Driver with Tri-state Control
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LV1T125DB(LX)
- Store part #
- C22469966
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,170 in stock
#C22469966
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.84 | ₹98.40 |
| 100+ | ₹7.78 | ₹778.00 |
| 300+ | ₹6.75 | ₹2,025.00 |
| 3,000+ | ₹5.98 | ₹17,940.00 |
| 6,000+ | ₹5.36 | ₹32,160.00 |
| 9,000+ | ₹5.05 | ₹45,450.00 |
10 × ₹9.84
₹98.40
excl. GST
₹116.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LV1T125DB(LX)
₹98.40 for 10 + GST
Specifications
- Voltage - Supply
- 1.6V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 1uA
- Function
- Level shifting;Output enable
- Current - Output High(IOH)
- 8mA
- Series
- 74LV
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 6.4ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
SN74LV1T125 is a single-supply bus buffer/line driver with 3-state output. The low input switching threshold supports 1.8V input voltage at VCC = 3.3V, enabling level-up translation from 1.8V to 3.3V. In addition, the 5V-tolerant input pin supports level-down translation (3.3V → 2.5V translation at VCC = 2.5V). The output-enable input (OE) controls the 3-state output. A high level on OE forces the output into a high-impedance state. Output levels are powered by the supply voltage and support 1.8V, 2.5V, 3.3V, and 5.0V CMOS logic levels. The VCC range of 1.8V to 5.0V provides broad compatibility with controllers and processors.
Key features
- Single-supply voltage translator for 1.8V, 2.5V, 3.3V, and 5.0V
- Up translation: 1.2V → 1.8V at VCC = 1.8V; 1.5V → 2.5V at VCC = 2.5V; 1.8V → 3.3V at VCC = 3.3V; 3.3V → 5.0V at VCC = 5.0V
- Down translation: 3.3V → 1.8V at VCC = 1.8V; 3.3V → 2.5V at VCC = 2.5V; 5.0V → 3.3V at VCC = 3.3V
- 5V-tolerant inputs
- Operating temperature range: -40°C ~ +125°C
- Package: SOT23-5/SOT353
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G125DB(LX)#C22469934lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 3,830 | ₹5.68 · 3,830 in stock | View |
 | SN74LVC1G34DB(LX)#C22469929lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 2,180 | ₹5.98 · 2,180 in stock | View |
 | SN74LVC1G07DB(LX)#C22469941lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 190 | ₹5.31 · 190 in stock | View |
