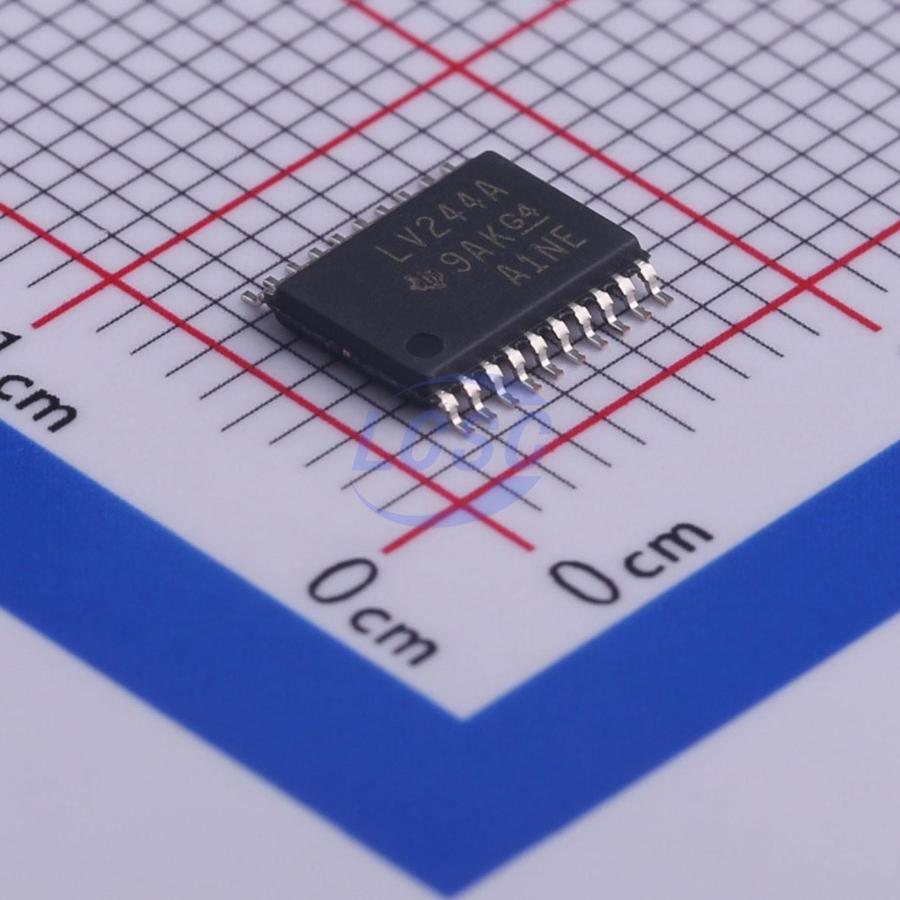

SN74LV244APWR
2V~5.5V 4 2 4.9ns@5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
Octal Buffers and Drivers With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LV244APWR
- Store part #
- C475502
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,435 in stock
#C475502
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.77 | ₹163.85 |
| 50+ | ₹26.25 | ₹1,312.50 |
| 150+ | ₹23.46 | ₹3,519.00 |
| 500+ | ₹19.96 | ₹9,980.00 |
| 2,000+ | ₹18.42 | ₹36,840.00 |
| 4,000+ | ₹17.48 | ₹69,920.00 |
5 × ₹32.77
₹163.85
excl. GST
₹193.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV244APWR
₹163.85 for 5 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 20uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 16mA
- Series
- 74LV
- Current - Output Low(IOL)
- 16mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 4.9ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.333 g
Overview
The SN74LV244A octal buffers and line drivers are designed for 2-V to 5.5-VCC operation. The SN74LV244A devices are designed specifically to improve both performance and density of the 3- state memory address drivers, clock drivers, and busoriented receivers and transmitters. These devices are organized as two 4-bit line drivers with separate output-enable (OE(overline)) inputs.
Applications
- Servers and Network Switches
- LED Displays
- Telecom Infrastructure
- Motor-Drive Control Boards
Key features
- 2-V to 5.5-VCC Operation
- Max tpd of 6.5 ns at 5 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25℃
- Support Mixed-Mode Voltage Operation on All Ports
- Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 250-mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
