SN74LV32APWR
20uA 2V~5.5V 7.5ns@5V,50pF TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive

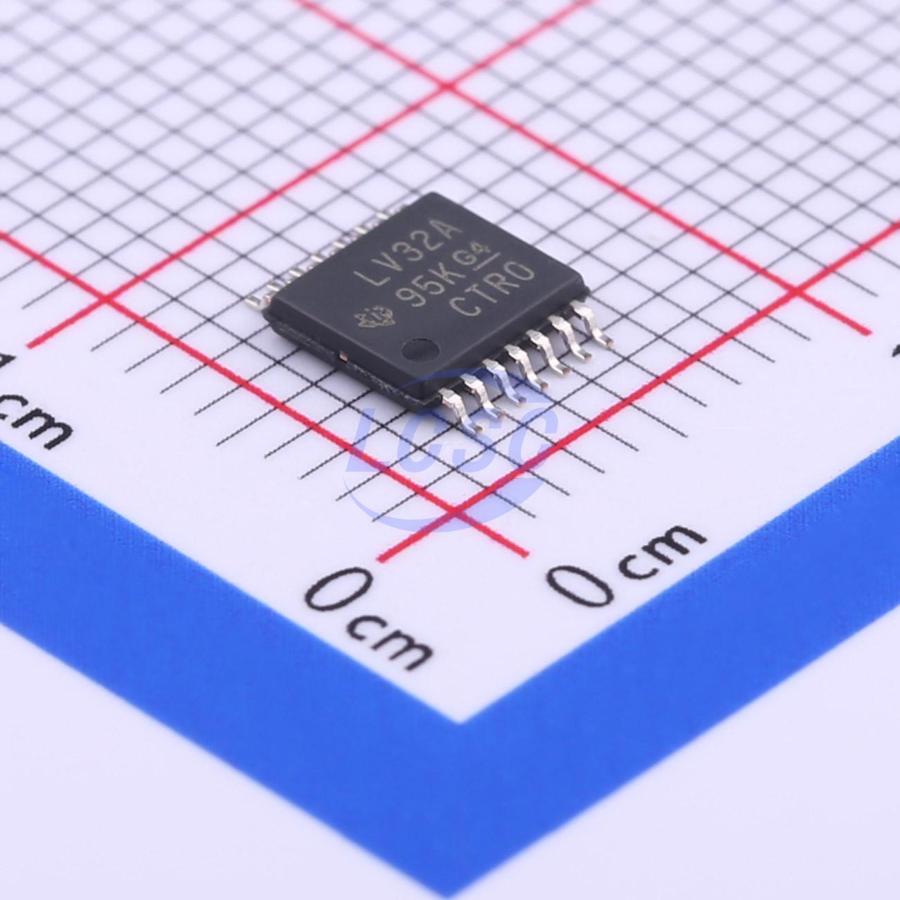

Quadruple 2-lnput Positive-Or Gates
- Manufacturer
- TI
- Manufacturer part #
- SN74LV32APWR
- Store part #
- C406869
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,705 in stock
#C406869
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.95 | ₹219.75 |
| 50+ | ₹34.79 | ₹1,739.50 |
| 150+ | ₹30.88 | ₹4,632.00 |
| 500+ | ₹24.30 | ₹12,150.00 |
| 2,000+ | ₹22.13 | ₹44,260.00 |
| 4,000+ | ₹20.82 | ₹83,280.00 |
5 × ₹43.95
₹219.75
excl. GST
₹259.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV32APWR
₹219.75 for 5 + GST
Specifications
- Features
- Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV
- Input Logic Level - High
- 1.5V
- Logic Family
- 74LV Series
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 20uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 12mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 7.5ns@5V,50pF
- Current - Output Low(IOL)
- 12mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.178 g
Overview
This quadruple 2-input positive-OR gates is designed for 2-V to 5.5-V CC operation. The SN74LV32A device performs the Boolean function Y = A + B or Y = A(overline) • B(overline)(overline) in positive logic.
Applications
- Printers
- E-Meters
- Motor Controls: Permanent Magnets
- Servers and High Performance Computing
- Automotive Infotainment
Key features
- 2-V to 5.5-V CC Operation
- Max tpd of 6.5 ns at 5 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25℃
- Support Mixed-Mode Voltage Operation on All Ports
- Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model
