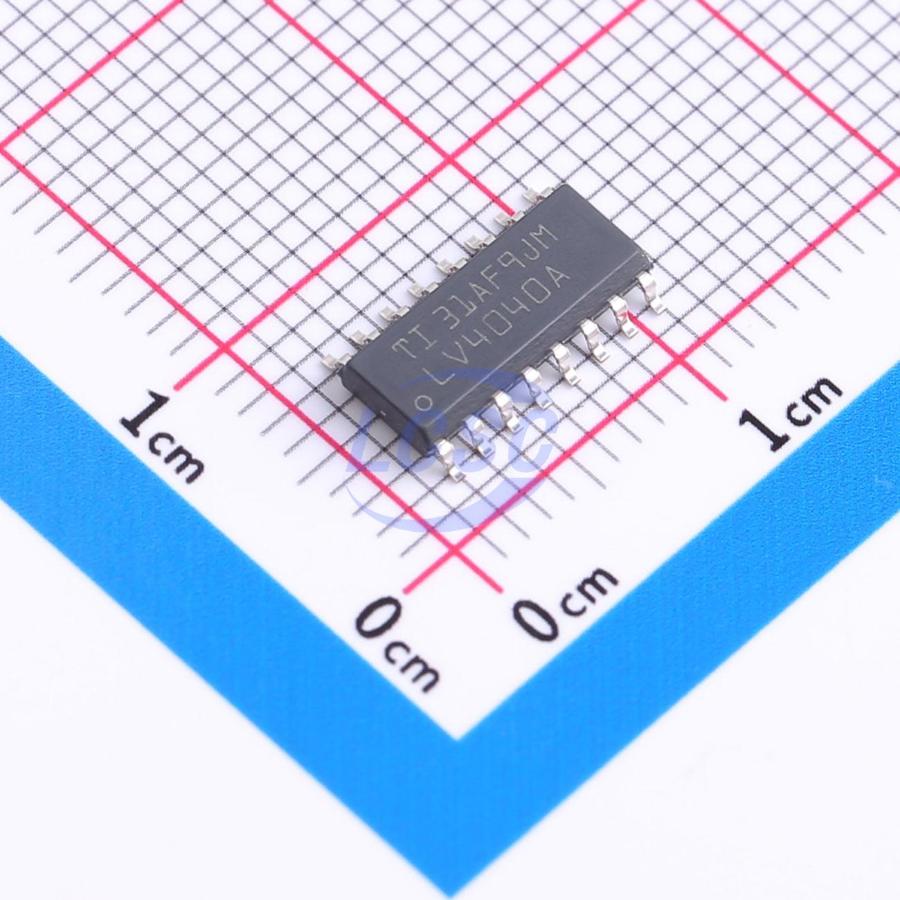

SN74LV4040ADR
Falling Edge 1 95MHz SOIC-16 Counters, Dividers RoHS
12-BIT ASYNCHRONOUS BINARY COUNTERS
- Manufacturer
- TI
- Manufacturer part #
- SN74LV4040ADR
- Store part #
- C2675437
- Package / case
- SOIC-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,078 in stock
#C2675437
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.32 | ₹77.32 |
| 10+ | ₹66.31 | ₹663.10 |
| 30+ | ₹58.32 | ₹1,749.60 |
| 100+ | ₹51.84 | ₹5,184.00 |
| 500+ | ₹49.89 | ₹24,945.00 |
| 1,000+ | ₹48.59 | ₹48,590.00 |
1 × ₹77.32
₹77.32
excl. GST
₹91.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LV4040ADR
₹77.32 for 1 + GST
Specifications
- Logic Family
- 74LV
- Voltage - Supply
- 2V~5.5V
- Direction
- Up Counter
- Trigger Type
- Falling Edge
- Timing
- Asynchronous
- Operating Temperature
- -40℃~+85℃
- Reset
- Asynchronous
- Number of Elements
- 1
- Propagation Delay
- 10.5ns
- Count Rate
- 95MHz
- Features
- Reset function;Low-power mode
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The 'LV4040A devices are 12-bit asynchronous binary counters with the outputs of all stages available externally. A high level at the clear (CLR) input asynchronously clears the counter and resets all outputs low. The count is advanced on a high-to-low transition at the clock (CLK) input. Applications include time-delay circuits, counter controls, and frequency-dividing circuits. These devices are fully specified for partial-power-down applications using the Ioff condition. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
Applications
- time-delay circuits
- counter controls
- frequency-dividing circuits
Key features
- 2-V to 5.5-V Vcc Operation
- Support Mixed-Mode Voltage Operation on All Ports
- High On-Off Output-Voltage Ratio
- Low Crosstalk Between Switches
- Individual Switch Controls
- Extremely Low Input Current Ioff
- Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 100 mA Per JESD78, Class II
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4040BM(LX)#C22390247lingxingic · SOP-16 | lingxingic | SOP-16 | 2,340 | ₹17.19 · 2,340 in stock | View |
 | SN74HC4040DR(LX)#C41413105lingxingic · SOP-16 | lingxingic | SOP-16 | 105 | ₹31.01 · 105 in stock | View |
| SN74HC4040NSR#C2861322TI · SO-16 | TI | SO-16 | 92 | ₹66.44 · 92 in stock | View | |
| 74HC4040D/S400118#C3828746Nexperia · SO-16 | Nexperia | SO-16 | On request | Price on request | Quote | |
| MC74HC4040ADR2#C3828350onsemi · SOIC-16 | onsemi | SOIC-16 | On request | Price on request | Quote | |
