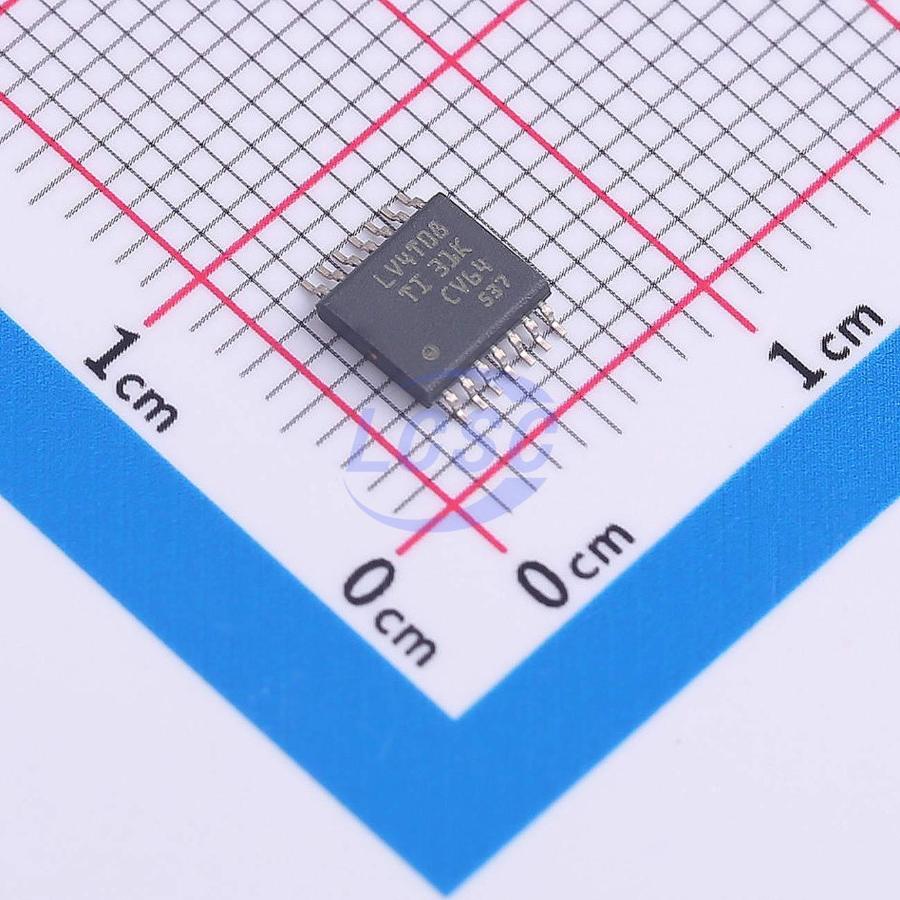

SN74LV4T08PWR

Schmitt trigger 1.8V~5.5V 9.7ns@5V,50pF 20uA TSSOP-14 Gates and Inverters RoHS

TSSOP-14ROHS3 CompliantActive

Quadruple 2-Input Positive-AND Gates With Integrated Translation

Manufacturer: TI
Manufacturer part #: SN74LV4T08PWR
Store part #: C22396828
Package / case: TSSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,711 in stock

#C22396828

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
1+	₹75.72	₹75.72
10+	₹66.61	₹666.10
30+	₹62.05	₹1,861.50
100+	₹57.50	₹5,750.00
500+	₹54.68	₹27,340.00
1,000+	₹53.37	₹53,370.00

Quantity (min 1)

1 × ₹75.72

₹75.72

excl. GST

₹89.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LV4T08PWR

₹75.72 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Tri-State
Input Type: Schmitt trigger
Logic Family: 74LV
Voltage - Supply: 1.8V~5.5V
Output Logic Level - Low: 200mV;150mV;250mV;350mV
Propagation Delay: 9.7ns@5V,50pF
Features: Controllable output enable;Overvoltage-tolerant input
Input Logic Level - Low: 500mV;650mV;750mV;850mV
Input Logic Level - High: 1.1V;1.28V;1.45V;2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.28V;2V;2.6V;4.1V
Quiescent Current(Iq): 20uA
Current - Output High(IOH): 8mA
Number of Channels: 4;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.204 g

Overview

The SN74LV4T08 contains four independent 2-input AND Gates with Schmitt-trigger inputs. Each gate performs the Boolean function Y = A • B in positive logic. The output level is referenced to the supply voltage (VCC) and supports 1.8-V, 2.5-V, 3.3-V, and 5-V CMOS levels. The input is designed with a lower threshold circuit to support up translation for lower voltage CMOS inputs (for example, 1.2V input to 1.8V output or 1.8V input to 3.3V output). In addition, the 5-V tolerant input pins enable down translation (for example, 3.3V to 2.5V output).

Applications

Enable or disable a digital signal
Controlling an indicator LED
Translation between communication modules and system controllers

Key features

Wide operating range of 1.8V to 5.5V Single-supply voltage translator (refer to LVxT Enhanced Input Voltage)
Up translation:
1.2V to 1.8V
1.5V to 2.5V
1.8V to 3.3V
3.3V to 5.0V
Down translation:
5.0V, 3.3V, 2.5V to 1.8V
5.0V, 3.3V to 2.5V
5.0V to 3.3V
5.5V tolerant input pins
Supports standard pinouts
Up to 150 Mbps with 5-V or 3.3-V VCC
Latch-up performance exceeds 250 mA per JESD 17
