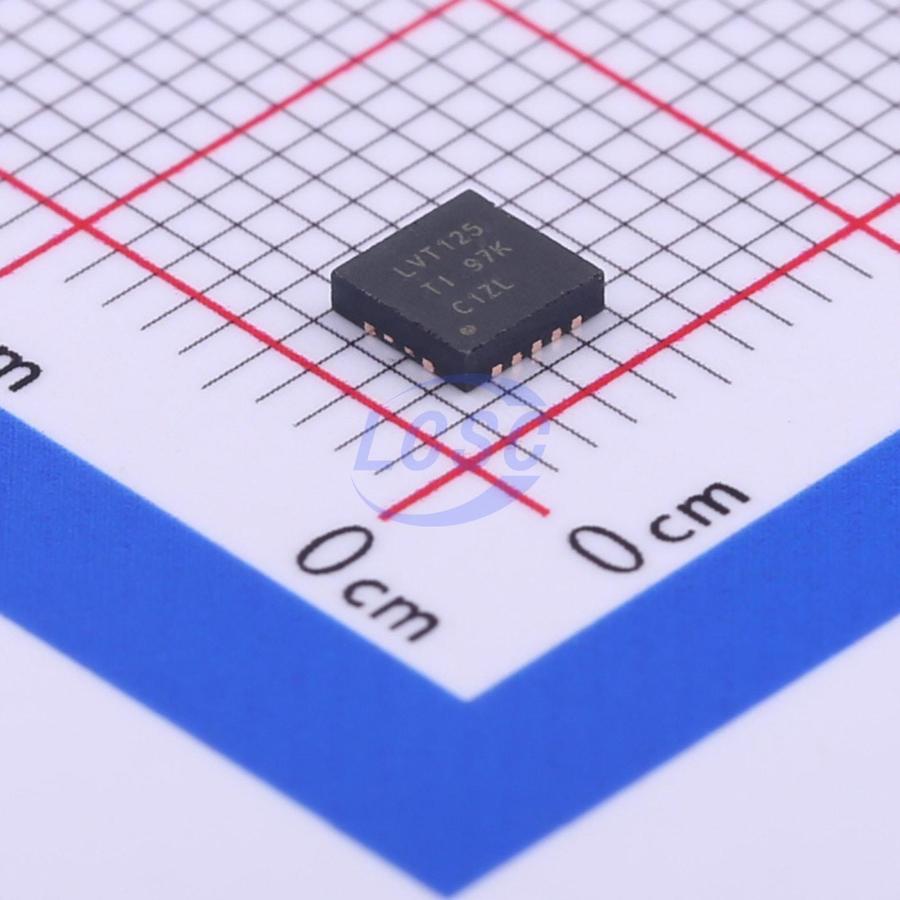

SN74LV4T125RGYR

1.6V~5.5V 1 4 3.2ns@5V,15pF VQFN-14-EP(3.5x3.5) Buffers, Drivers, Receivers, Transceivers RoHS

VQFN-14-EP(3.5x3.5)ROHS3 CompliantActive

Single Power Supply Quadruple Buffer Translator GATE With 3 - State Output CMOS Logic Level Shifter

Manufacturer: TI
Manufacturer part #: SN74LV4T125RGYR
Store part #: C411879
Package / case: VQFN-14-EP(3.5x3.5)
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,009 in stock

#C411879

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹105.59	₹105.59
10+	₹84.95	₹849.50
30+	₹74.75	₹2,242.50
100+	₹64.31	₹6,431.00
500+	₹58.23	₹29,115.00
1,000+	₹55.20	₹55,200.00

Quantity (min 1)

1 × ₹105.59

₹105.59

excl. GST

₹124.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LV4T125RGYR

₹105.59 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 1.6V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 20uA
Function: Level shifting;Output enable
Current - Output High(IOH): 16mA
Series: 74LV
Current - Output Low(IOL): 16mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 4
Propagation Delay: 3.2ns@5V,15pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.121 g

Overview

SN74LV4T125 is a low-voltage CMOS buffer gate that operates at a wider voltage range for portable, telecom, industrial, and automotive applications. The output level is referenced to the supply voltage and is able to support 1.8-V, 2.5-V, 3.3-V, and 5-V CMOS levels. The input is designed with a lower threshold circuit to match 1.8 V input logic at VCC = 3.3 V and can be used in 1.8 V to 3.3 V level-up translation. In addition, the 5-V tolerant input pins enable down translation (for example, 3.3 V to 2.5 V output at VCC = 2.5 V). The wide VCC range of 1.8 V to 5.5 V allows the generation of desired output levels to connect to controllers or processors. The SN74LV4T125 device is designed with current-drive capability of 8 mA to reduce line reflections, overshoot, and undershoot caused by high-drive outputs. Supports Standard Logic Pinouts CMOS Output B Compatible with AUP125, LVC125

Applications

Tablet
Smartphone
Personal Computer
Industrial
Automotive

Key features

Single-supply voltage translation; supply voltage options: 5.0V, 3.3V, 2.5V, 1.8V
Operating voltage range: 1.8V~5.5V
Up-level translation support; translation ranges: 1.2V~1.8V (VCC = 1.8V), 1.5V~2.5V (VCC = 2.5V), 1.8V~3.3V (VCC = 3.3V), 3.3V~5.0V (VCC = 5.0V)
Down-level translation support; translation ranges: 3.3V~1.8V (VCC = 1.8V), 3.3V~2.5V (VCC = 2.5V), 5.0V~3.3V (VCC = 3.3V)
Logic output levels referenced to VCC
Up to 50MHz operation at 3.3V VCC
Input pins tolerant to 5.5V
Operating temperature range: -40℃~125℃
Lead-free package option available; SC-70(RGY) package dimensions: 3.5×3.5×1mm
Latch-up performance exceeds 250mA, compliant with JESD 17
ESD performance per JESD 22: HBM 2000V (A114-B, Class II), MM 200V (A115-A), CDM 1000V (C101)
Standard logic pinout compatible
CMOS output compatible with AUP125, LVC125
8mA output drive capability, reducing line reflections, overshoot, and undershoot caused by high-drive outputs
