TIDatasheet (PDF)

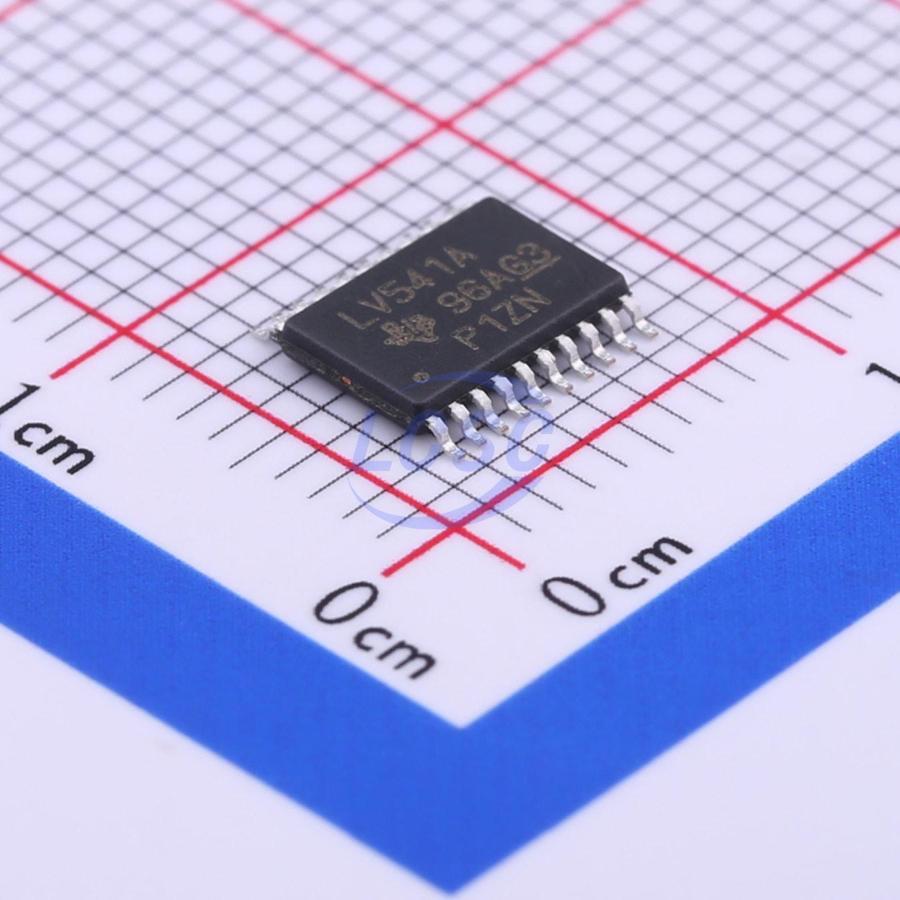

SN74LV541APWR
2V~5.5V 8 1 7ns@5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
Octal Buffers/Drivers With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LV541APWR
- Store part #
- C406870
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,571 in stock
#C406870
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.80 | ₹120.80 |
| 10+ | ₹96.65 | ₹966.50 |
| 30+ | ₹84.67 | ₹2,540.10 |
| 100+ | ₹72.92 | ₹7,292.00 |
| 500+ | ₹62.68 | ₹31,340.00 |
| 1,000+ | ₹58.99 | ₹58,990.00 |
1 × ₹120.80
₹120.80
excl. GST
₹142.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV541APWR
₹120.80 for 1 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 20uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 16mA
- Series
- 74LV
- Current - Output Low(IOL)
- 16mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 7ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.237 g
Overview
The SN74LV541A device is an octal buffer/driver designed for 2-V to 5.5-V CC operation.
Applications
- Smart Grids
- TVs
- Set-Top-Boxes
- Audio
- Servers
- Surveillance Cameras
- Network Switches Infotainment
Key features
- 2-V to 5.5-V CC Operation
- Max t(pd) of 6 ns at 5 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25℃
- Support Mixed-Mode Voltage Operation on All Ports
- Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22: 3000-V Human-Body Model, 200-V Machine Model, 2000-V Charged-Device Model
