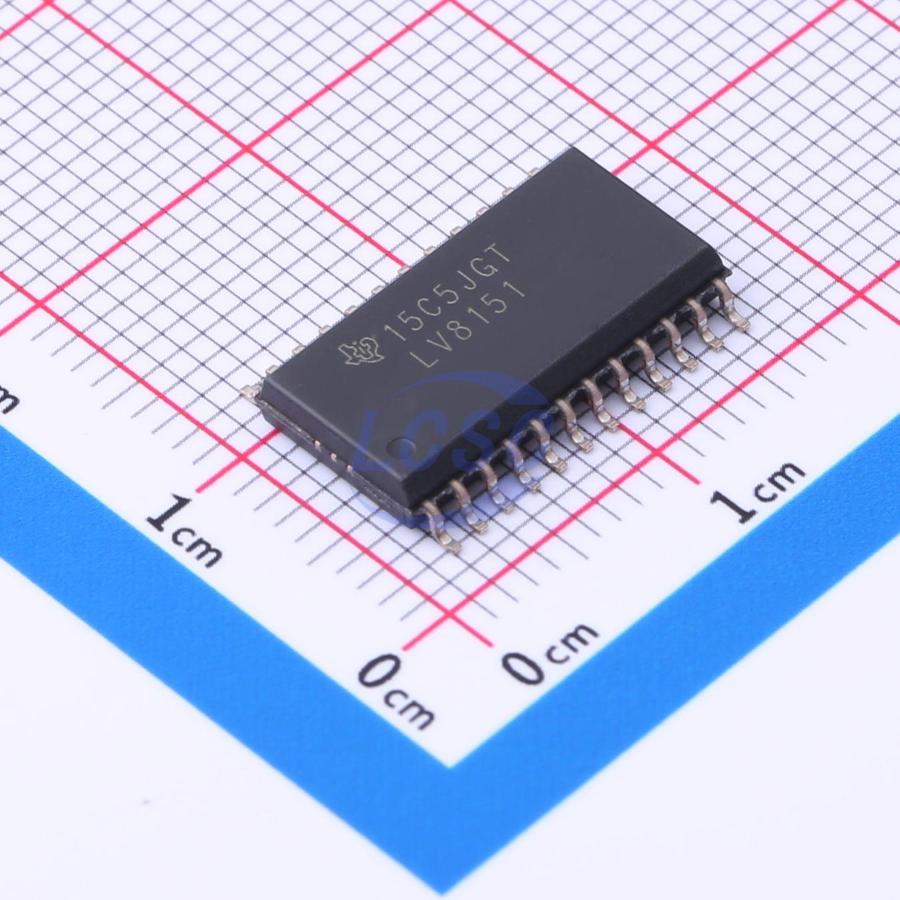

SN74LV8151DWR
Schmitt trigger 2V~5.5V 12mA 20uA 12mA 1 SOIC-24-300mil Gates and Inverters - Multi-Function, Configurable RoHS
SOIC-24-300milROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- SN74LV8151DWR
- Store part #
- C2859850
- Package / case
- SOIC-24-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,003 in stock
#C2859850
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹145.28 | ₹145.28 |
| 10+ | ₹128.58 | ₹1,285.80 |
| 30+ | ₹112.53 | ₹3,375.90 |
| 100+ | ₹100.83 | ₹10,083.00 |
| 500+ | ₹95.84 | ₹47,920.00 |
| 1,000+ | ₹93.46 | ₹93,460.00 |
1 × ₹145.28
₹145.28
excl. GST
₹171.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV8151DWR
₹145.28 for 1 + GST
Specifications
- Logic Family
- 74LV
- Input type
- Schmitt trigger
- Propagation Delay
- 9ns@5V,15pF
- Voltage - Supply
- 2V~5.5V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - Low
- 100mV;400mV;440mV;550mV
- Input Logic Level - Low
- 500mV
- Input Logic Level - High
- 1.5V
- Current - Output Low(IOL)
- 12mA
- Output Logic Level - High
- 2V;2.48V;3.8V
- Quiescent Current(Iq)
- 20uA
- Current - Output High(IOH)
- 12mA
- Features
- Power shutdown protection;Noise suppression function
- Number of Gates
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.45 g
