TIDatasheet (PDF)

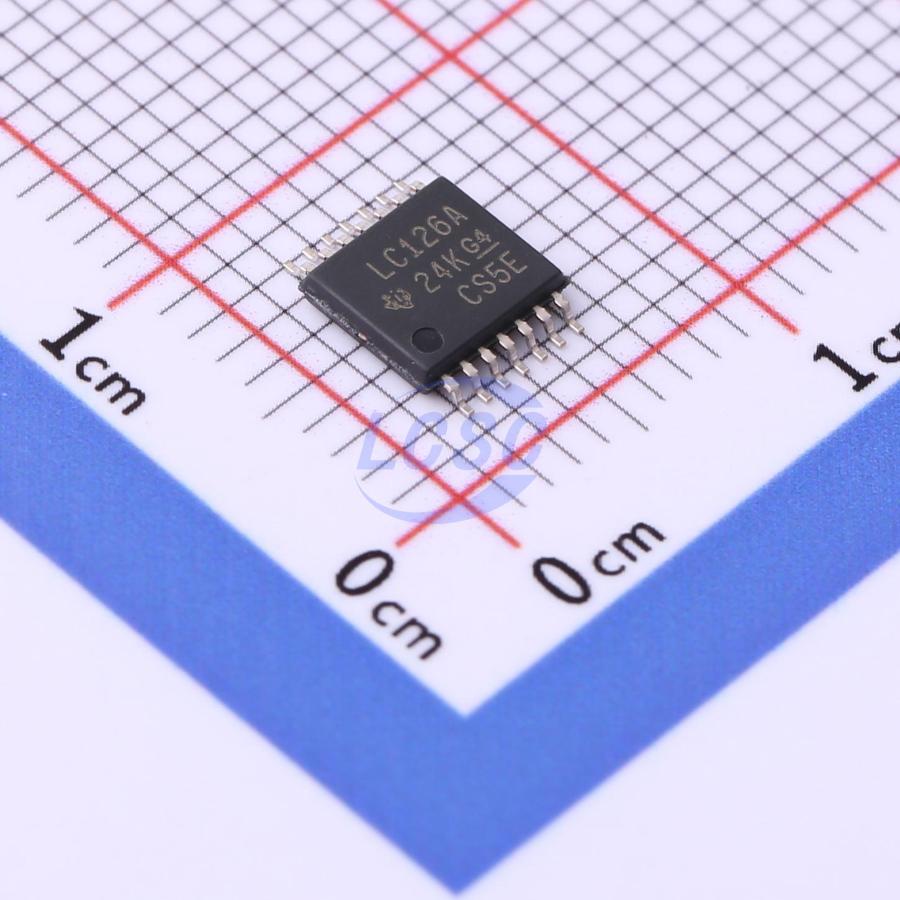

SN74LVC126APWR
1.65V~3.6V 1 4 2.5ns@3.3V,50pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-14ROHS3 CompliantActive
Quadruple Bus Buffer Gate with 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC126APWR
- Store part #
- C7815
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,135 in stock
#C7815
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.90 | ₹269.50 |
| 50+ | ₹44.53 | ₹2,226.50 |
| 150+ | ₹40.52 | ₹6,078.00 |
| 500+ | ₹34.23 | ₹17,115.00 |
| 2,000+ | ₹32.00 | ₹64,000.00 |
| 4,000+ | ₹30.67 | ₹1,22,680.00 |
5 × ₹53.90
₹269.50
excl. GST
₹318.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LVC126APWR
₹269.50 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Propagation Delay
- 2.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.091 g
Overview
This quadruple bus buffer gate is designed for 1.65- V to 3.6 -VCC operation. The SN74LVC126A features independent line drivers with 3- state outputs. Each output is disabled when the associated output- enable (OE) input is low. Inputs can be driven from either 3.3- V or 5- V devices. This feature allows the use of this device as a translator in a mixed 3.3- V/5- V system environment.
Applications
- Bus buffer line driver
- Level shifting for mixed-voltage systems
Key features
- Operates From 1.65 V to 3.6 V
- Specified From - 40℃ to 85℃ and From - 40℃ to 125℃
- Inputs Accept Voltages to 5.5 V
- Max tpd of 4.7 ns at 3.3 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOLV (Output VOL Undershoot) >2 V at VCC = 3.3 V, TA = 25℃
- Latch- Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 - 2000- V Human- Body Model (A114- A) - 200- V Machine Model (A115- A)
