TECH PUBLIC

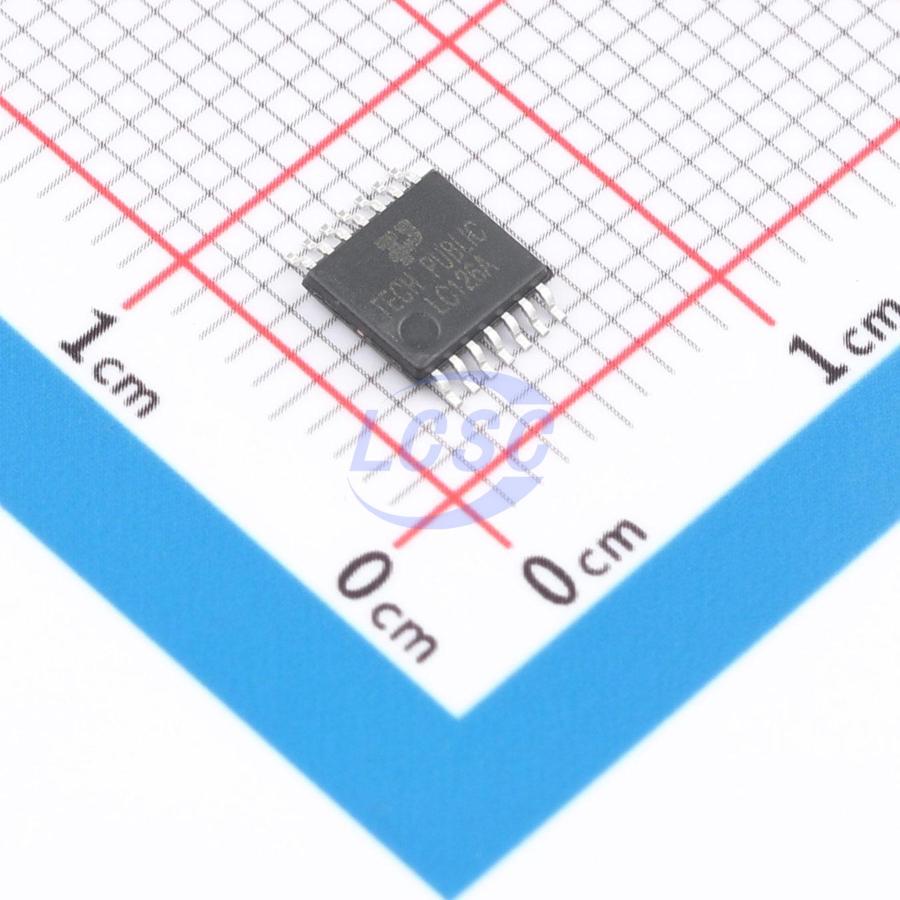

SN74LVC126APWR-TP

Schmitt trigger 1.65V~3.6V 1 TSSOP-14 Buffers, Drivers, Receivers, Transceivers

TSSOP-14RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74LVC126APWR-TP
Store part #: C54561942
Package / case: TSSOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,485 in stock

#C54561942

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
5+	₹38.49	₹192.45
50+	₹30.10	₹1,505.00
150+	₹26.50	₹3,975.00
500+	₹22.01	₹11,005.00
2,500+	₹20.02	₹50,050.00
5,000+	₹18.81	₹94,050.00

Quantity (min 5, multiples of 5)

5 × ₹38.49

₹192.45

excl. GST

₹227.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74LVC126APWR-TP

₹192.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Output High(IOH): 50mA
Input type: Schmitt trigger
Series: 74LVC
Voltage - Supply: 1.65V~3.6V
Output Type: Tri-State
Current - Output Low(IOL): 50mA
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 40uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.193 g

Overview

This is a quad buffer/line driver with 3-state outputs controlled by an output enable input (nOE). When nOE is HIGH, the outputs are in a high-impedance off-state. The inputs can be driven by 2.7V or 3.6V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs allows the circuit to tolerate slower input rise and fall times.

Key features

Wide supply voltage range: 1.65V to 3.6V
CMOS low power consumption
Overvoltage-tolerant inputs up to 5.5V
Latch-up performance exceeds 250mA
Direct TTL-level interface compatible
ESD protection: HBM ANSI/ESDA/JEDEC JS-003 Class A exceeds 6000V, CDM ANSI/ESDA/JEDEC JS-002 C3 exceeds 2000V
IOFF circuit enables partial power-down mode operation
JEDEC compliant: JESD8-7 (1.65V to 1.95V), JESD8-5 (2.3V to 2.7V), JESD8C (2.7V to 3.6V)
Package: TSSOP-14
