SN74LVC16244ADGGR
1.65V~3.6V 4 4 4.1ns@3.3V,50pF TSSOP-48-6.1mm Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-48-6.1mmROHS3 CompliantActive

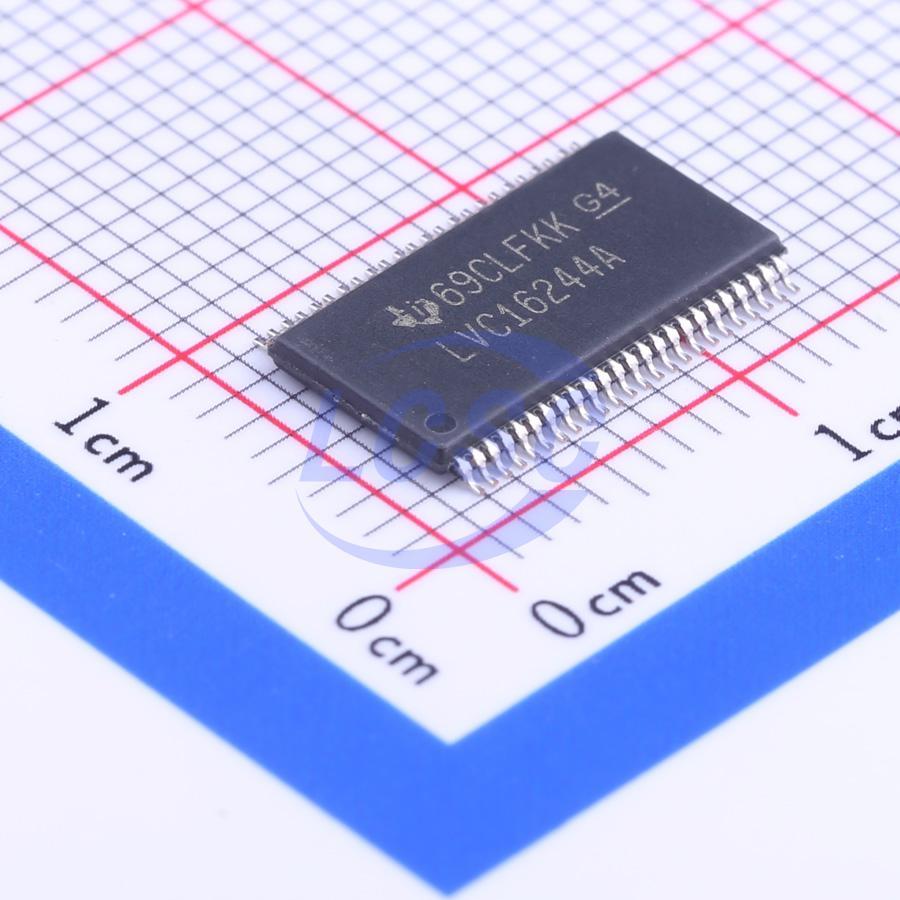

16-Bit Buffer/Driver With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC16244ADGGR
- Store part #
- C7822
- Package / case
- TSSOP-48-6.1mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,817 in stock
#C7822
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹225.86 | ₹225.86 |
| 10+ | ₹190.39 | ₹1,903.90 |
| 30+ | ₹167.98 | ₹5,039.40 |
| 100+ | ₹145.36 | ₹14,536.00 |
| 500+ | ₹134.91 | ₹67,455.00 |
| 1,000+ | ₹130.55 | ₹1,30,550.00 |
1 × ₹225.86
₹225.86
excl. GST
₹266.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LVC16244ADGGR
₹225.86 for 1 + GST
Specifications
- Voltage - Supply
- 1.65V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 20uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Propagation Delay
- 4.1ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.427 g
Overview
This 16-bit buffer/driver is designed for 1.65-V to 3.6-V VCC operation. The SN74LVC16244A device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.
Applications
- Servers
- PCs and Notebooks
- Network Switches
- Wireless and Telecom Infrastructures
- TV Set-top Boxes
- Electronic Points of Sale
Key features
- Member of the Texas Instruments Widebus™ Family
- Operates From 1.65 V to 3.6 V
- Inputs Accept Voltages to 5.5 V
- Max tpd of 4.1 ns at 3.3 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
- Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
- Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V VCC)
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CLVC16244AIDGGRQ1#C2675919TI · TSSOP-48-6.1mm | TI | TSSOP-48-6.1mm | 20 | ₹267.66 · 20 in stock | View |
| SN74ALVC16244ADGGR#C2675916TI · TSSOP-48-6.1mm | TI | TSSOP-48-6.1mm | 6 | ₹410.25 · 6 in stock | View | |
 | SN74LVCH162244AGR#C2676133TI · TSSOP-48-6.1mm | TI | TSSOP-48-6.1mm | 16 | ₹189.28 · 16 in stock | View |
| SN74LVC16244ADGG#C2869447TI · TSSOP-48-6.1mm | TI | TSSOP-48-6.1mm | On request | Price on request | Quote | |
 | SN74LVCH16244ADGGR#C7673TI · TSSOP-48-6.2mm | TI | TSSOP-48-6.2mm | On request | Price on request | Quote |
