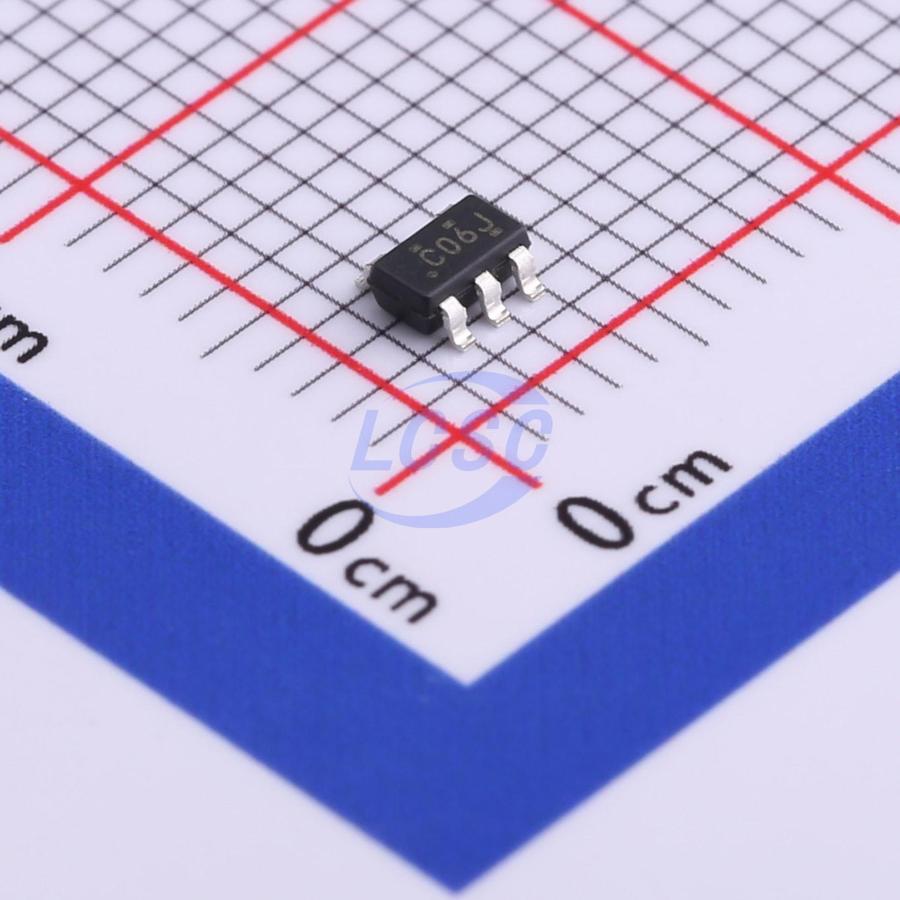

SN74LVC1G06DBVR

This single inverter buffer and driver is designed for 1.65-V to 5.5–VCC operation. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. The output of the SN74LVC1G06 device is opendrain and can be connected to other open-drain outputs to implement active-low wired-OR or activehigh wired-AND functions. The maximum sink current is 32 mA. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.

Applications

• AV Receivers
• Blu-ray Players and Home Theaters
• DVD Recorders and Players
• Desktop or Notebook PCs
• Digital Radio or Internet Radio Players
• Digital Video Cameras (DVC)
• Embedded PCs
• GPS: Personal Navigation Devices
• Mobile Internet Devices
• Network Projector Front-Ends
• Portable Media Players
• Pro Audio Mixers
• Smoke Detectors
• Solid State Drive (SSD): Enterprise
• High-Definition (HDTV)
• Tablets: Enterprise
• Audio Docks: Portable
• DLP Front Projection Systems
• DVR and DVS
• Digital Picture Frame (DPF)
• Digital Still Cameras

Key features

• ESD Protection Exceeds JESD 22
• 2000-V Human Body Model (A114-A)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
• Available in the NanoFree Package
• Supports 5-V VCC Operation
• Input and Open-Drain Output Accept Voltages up to 5.5 V
• Maximum tpd of 4.5 ns at 3.3 V at 125°C
• Low Power Consumption, 10-μA Maximum ICC
• ±24 -mA Output Drive at 3.3 V for open-drain devices
• Supports Partial-Power-Down Mode and BackDrive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• Can Be Used For Up or Down Translation
• Schmitt Trigger Action on All Ports
