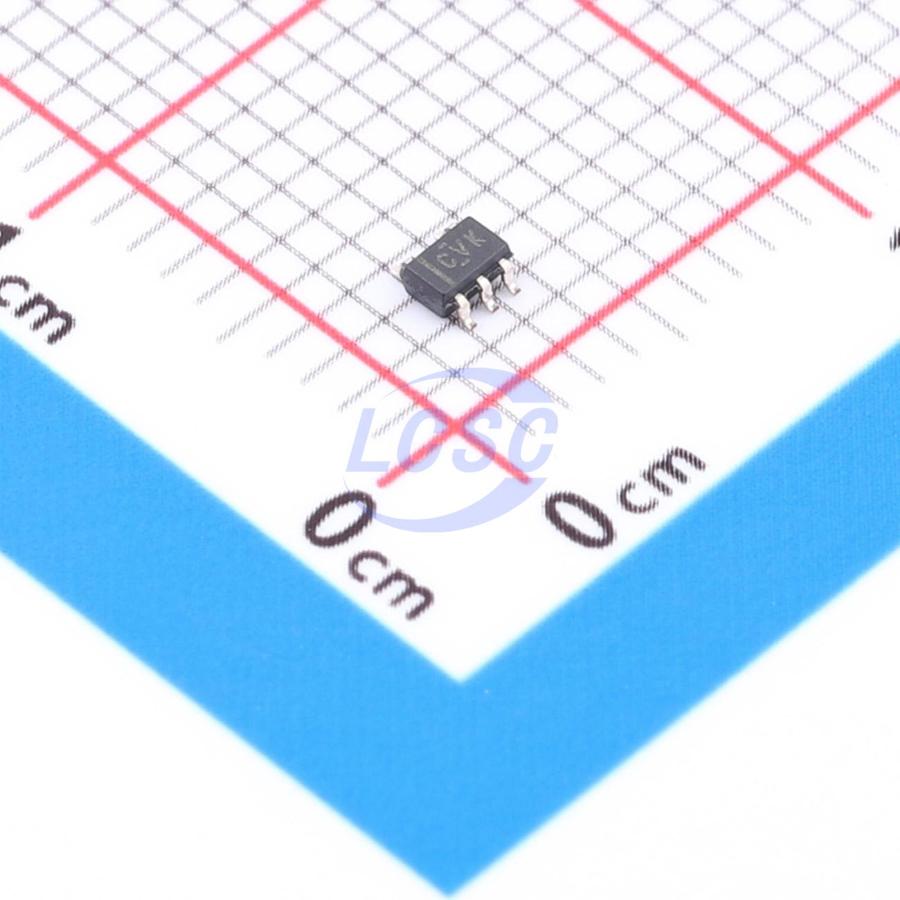

SN74LVC1G07MDCKREP

This single buffer/driver is designed for 1.65-V to 5.5–VCC operation. The output of the SN74LVC1G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32 mA. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Key features

• Controlled Baseline One Assembly/Test Site, One Fabrication Site
• Extended Temperature Performance of -55℃ to 125℃
• Enhanced Diminishing Manufacturing Sources (DMS) Support
• Enhanced Product-Change Notification
• Qualification Pedigree
• Supports 5-V VCC Operation
• Input and Open-Drain Output Accept Voltages up to 5.5 V
• Max tpd of 5.7 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22:
• 2000-V Human-Body Model (A114-A)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
