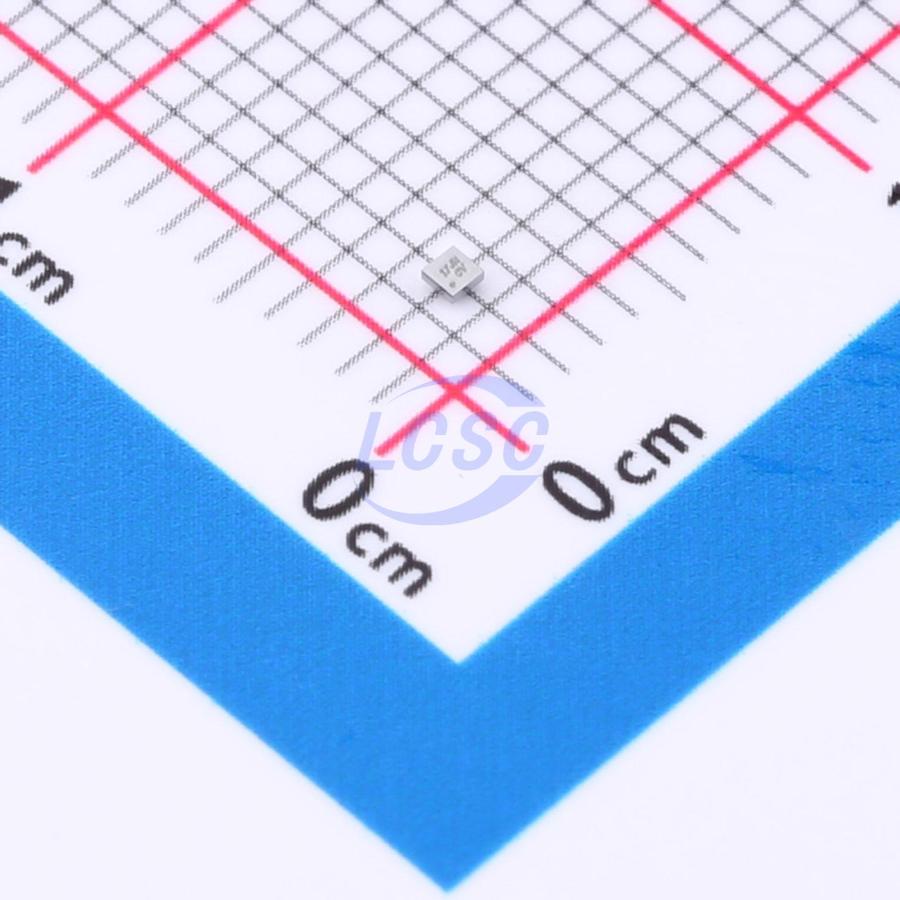

SN74LVC1G07YZVR

This single-buffer/driver is designed for 1.65V to 5.5V VCC operating voltage. The SN74LVC1G07 device features an open-drain output that can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. Maximum sink current is 32mA. The SN74LVC1G07 is available in multiple packages, including the ultra-small DPW package measuring 0.8mm×0.8mm.

Applications

• AV receivers
• Blu-ray players & home theater DVD recorders and players
• Desktop or laptop PCs, digital audio broadcast or internet radio players
• Digital video cameras (DVC)
• Embedded computers, GPS: personal navigation devices
• Mobile internet devices, network projector front ends
• Portable media players
• Professional audio mixers
• Smoke detectors
• Solid-state drives (SSD)
• Enterprise HDTV
• Tablets: enterprise
• Audio interface boxes: portable
• DLP front projection systems
• DVR and DVS
• Digital photo frames (DPF)
• Digital cameras

Key features

• Ultra-small 0.64mm² package (DPW) with 0.5mm pitch
• 5V VCC operation supported
• Inputs and open-drain outputs support up to 5.5V
• Up or down translation capable
• tPD max 4.2ns at 3.3V
• Low power, 10μA max ICC
• ±24mA output drive at 3.3V
• Ioff supports hot insertion, partial power-down mode, and back-drive protection
• Latch-up performance exceeds 100mA per JESD 78 Class II
• ESD protection exceeds JESD 22 requirements
• 2000V Human Body Model (A114-A)
• 200V Machine Model (A115-A)
• 1000V Charged Device Model (C101)
