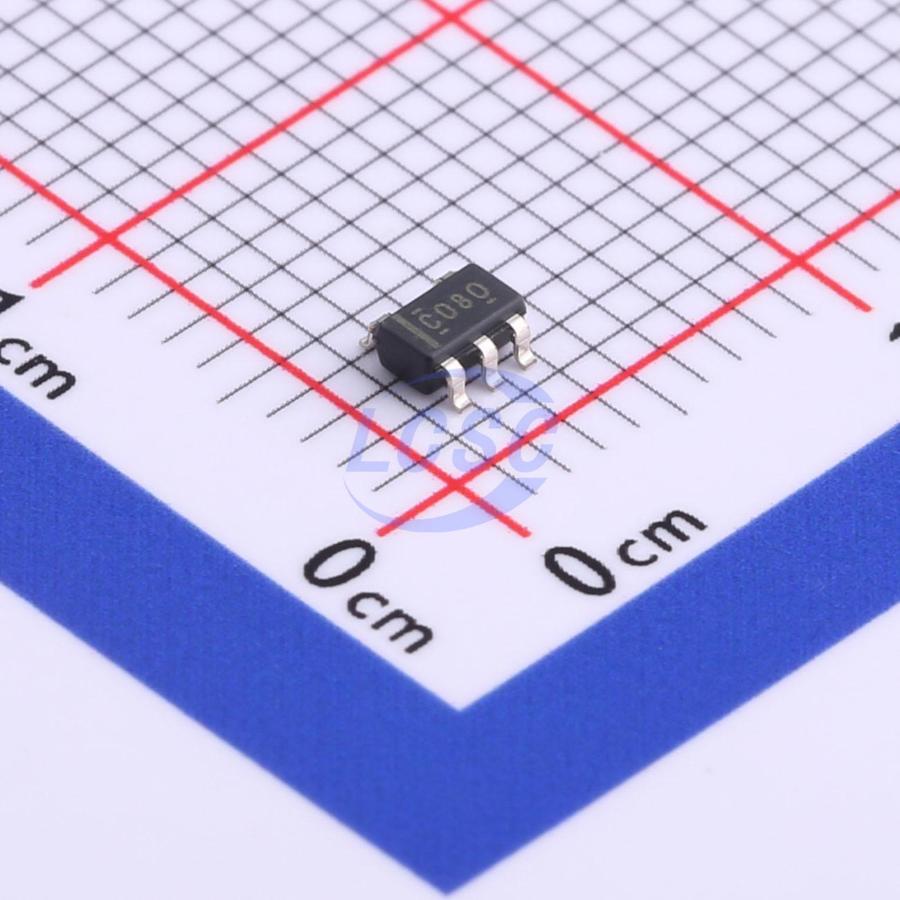

SN74LVC1G08QDBVRQ1
AND Gate IC 1 Channel SOT-23-5
SOT-23-5ROHS3 CompliantActive
Single-channel dual-input positive AND gate
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G08QDBVRQ1
- Store part #
- C840098
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,965 in stock
#C840098
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.31 | ₹171.55 |
| 50+ | ₹27.25 | ₹1,362.50 |
| 150+ | ₹24.22 | ₹3,633.00 |
| 500+ | ₹20.45 | ₹10,225.00 |
| 3,000+ | ₹18.77 | ₹56,310.00 |
| 6,000+ | ₹17.77 | ₹1,06,620.00 |
5 × ₹34.31
₹171.55
excl. GST
₹202.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G08QDBVRQ1
₹171.55 for 5 + GST
Specifications
- Features
- Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC Series
- Output Logic Level - High
- 1.2V;1.9V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 6ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
Applications
- Fully compliant with automotive application standards
- Combines power-good signals from multiple supply rails
- Passes signal when condition is true
- Combines active-low fault signals
