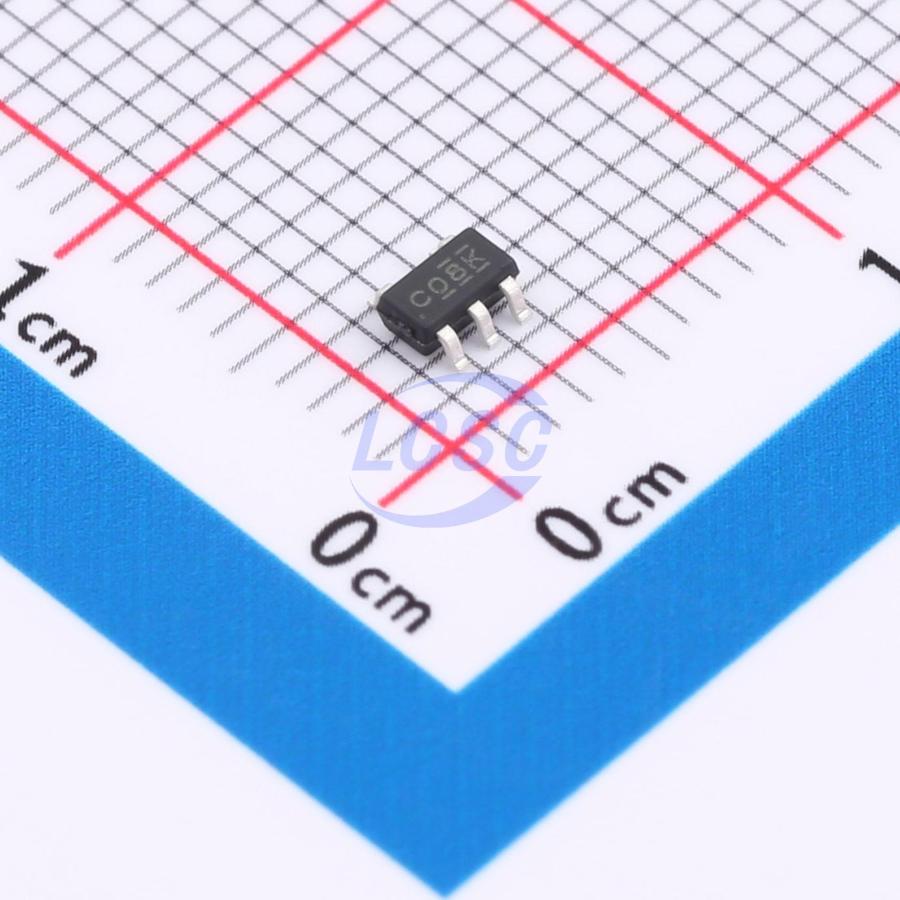

SN74LVC1G08DBVR-JSM
AND Gate IC 1 Channel SOT-23-5
SOT-23-5LROHS CompliantActive
2-input AND gate integrated circuit
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SN74LVC1G08DBVR-JSM
- Store part #
- C7421707
- Package / case
- SOT-23-5L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C7421707
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.40 | ₹54.00 |
| 100+ | ₹4.35 | ₹435.00 |
| 300+ | ₹3.84 | ₹1,152.00 |
| 3,000+ | ₹3.44 | ₹10,320.00 |
| 6,000+ | ₹3.12 | ₹18,720.00 |
| 9,000+ | ₹2.98 | ₹26,820.00 |
10 × ₹5.40
₹54.00
excl. GST
₹63.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G08DBVR-JSM
₹54.00 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V
- Output Logic Level - High
- 1.64V;1.47V;2.15V;2.73V;4V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 10mV;110mV;200mV;350mV
- Propagation Delay
- 10ns@5V,15pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G08GW-Q100-JSM#C53114393JSMSEMI · SOT-23-5 | JSMSEMI | SOT-23-5 | 1,940 | ₹5.87 · 1,940 in stock | View |
 | 74LVC1G08GV,125-JSM#C53114430JSMSEMI · SOT-23-5 | JSMSEMI | SOT-23-5 | 10,160 | ₹9.95 · 10,160 in stock | View |
