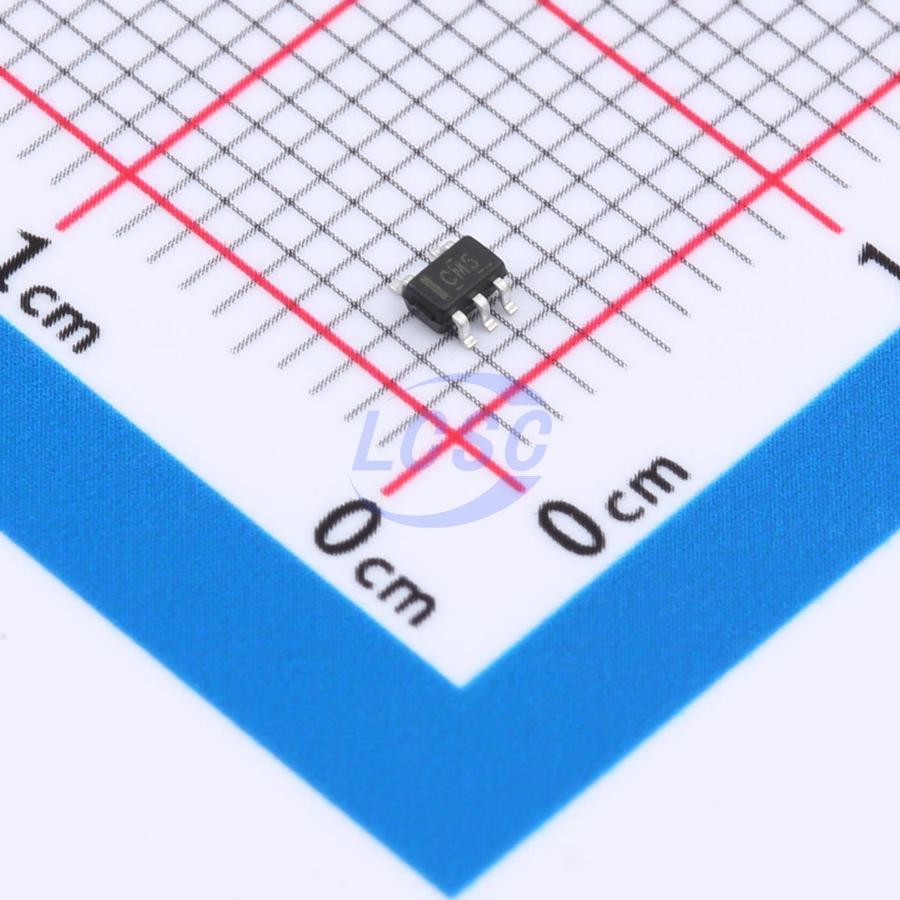

SN74LVC1G125DCKR-MS
1.65V~5.5V 1 1 4.7ns@3.3V,50pF SC-70-5 Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-5ROHS CompliantActive
Bus buffer gate, single-line driver, three-state output
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SN74LVC1G125DCKR-MS
- Store part #
- C45360154
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,650 in stock
#C45360154
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.25 | ₹72.50 |
| 100+ | ₹5.73 | ₹573.00 |
| 300+ | ₹4.96 | ₹1,488.00 |
| 3,000+ | ₹4.30 | ₹12,900.00 |
| 6,000+ | ₹3.85 | ₹23,100.00 |
| 9,000+ | ₹3.61 | ₹32,490.00 |
10 × ₹7.25
₹72.50
excl. GST
₹85.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G125DCKR-MS
₹72.50 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 4.7ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The bus buffer gate operates over a supply voltage range of 1.65V to 5.5V. The device is a single line driver with 3-state outputs. When the output-enable input is high, the outputs are disabled. The device fully supports partial power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow when the device is powered down.
Applications
- Cable modem termination systems
- Video communication systems
- High-speed data acquisition and generation
- Motor control
- Power line communication modems
Key features
- 3-state outputs
- Wide supply voltage range, 1.65V to 5.5V
- Inputs accept voltages up to 5.5V
- Maximum propagation delay of 4.7ns at 3.3V
- ±24mA output drive capability at 3.3V
- Ioff supports partial power-down mode
