TIDatasheet (PDF)

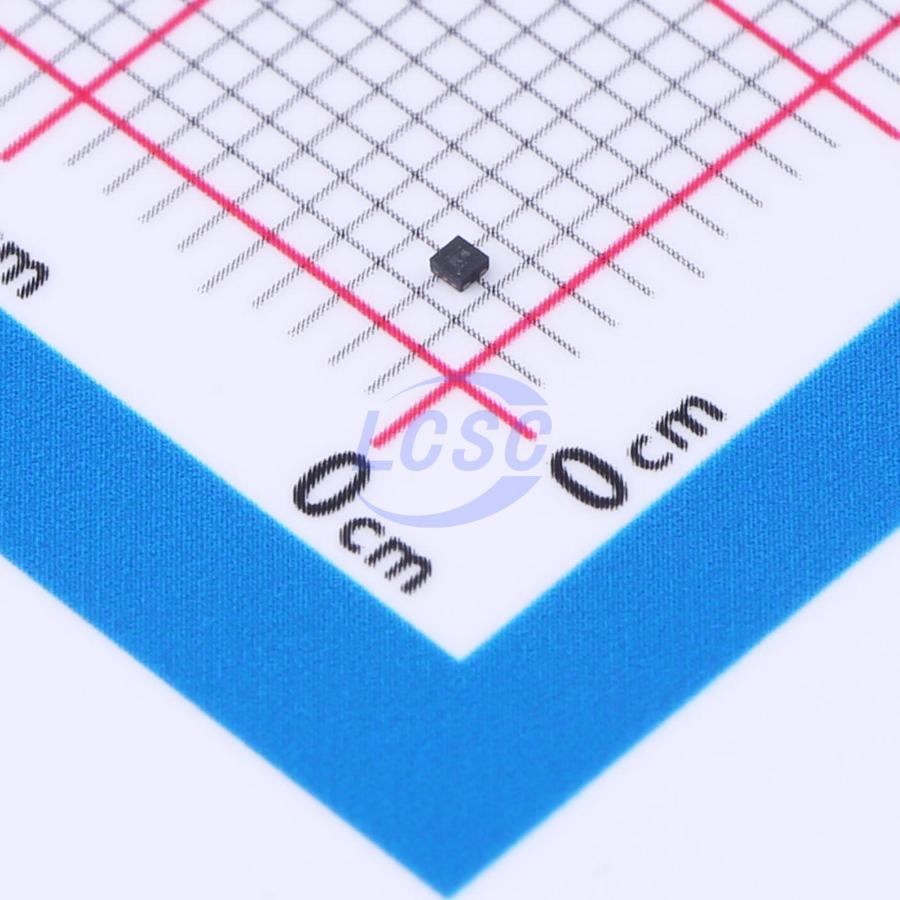

SN74LVC1G125DPWR
1.65V~5.5V 1 1 3.1ns@3.3V,15pF X2-SON-5-EP(0.8x0.8) Buffers, Drivers, Receivers, Transceivers RoHS
X2-SON-5-EP(0.8x0.8)ROHS3 CompliantActive
Single Bus Buffer Gate With 3-State Output
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G125DPWR
- Store part #
- C2675700
- Package / case
- X2-SON-5-EP(0.8x0.8)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C2675700
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.44 | ₹177.20 |
| 50+ | ₹28.10 | ₹1,405.00 |
| 150+ | ₹24.95 | ₹3,742.50 |
| 500+ | ₹21.04 | ₹10,520.00 |
| 3,000+ | ₹19.28 | ₹57,840.00 |
| 6,000+ | ₹18.23 | ₹1,09,380.00 |
5 × ₹35.44
₹177.20
excl. GST
₹209.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G125DPWR
₹177.20 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3.1ns@3.3V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
This bus buffer gate is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G125 device is a single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is high. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The SN74LVC1G125 device is available in a variety of packages including the ultra-small DPW package with a body size of 0.8 mm x 0.8 mm.
Applications
- Cable Modem Termination System
- High-Speed Data Acquisition and Generation
- Power Line Communication Modem
- SSD: Internal or External
- Video Broadcasting and Infrastructure: Scalable Platform
- Video Broadcasting: IP-Based Multi-Format Transcoder
- Video Communications System
Key features
- Available in the Ultra Small 0.64–mm² Package (DPW) With 0.5 mm Pitch
- Supports 5-V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Provides Down Translation to VCC
- Max tpd of 3.7 ns at 3.3 V
- Low Power Consumption, 10-μA Max ICC
- ±24-mA Output Drive at 3.3 V
- Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
