TECH PUBLICDatasheet (PDF)

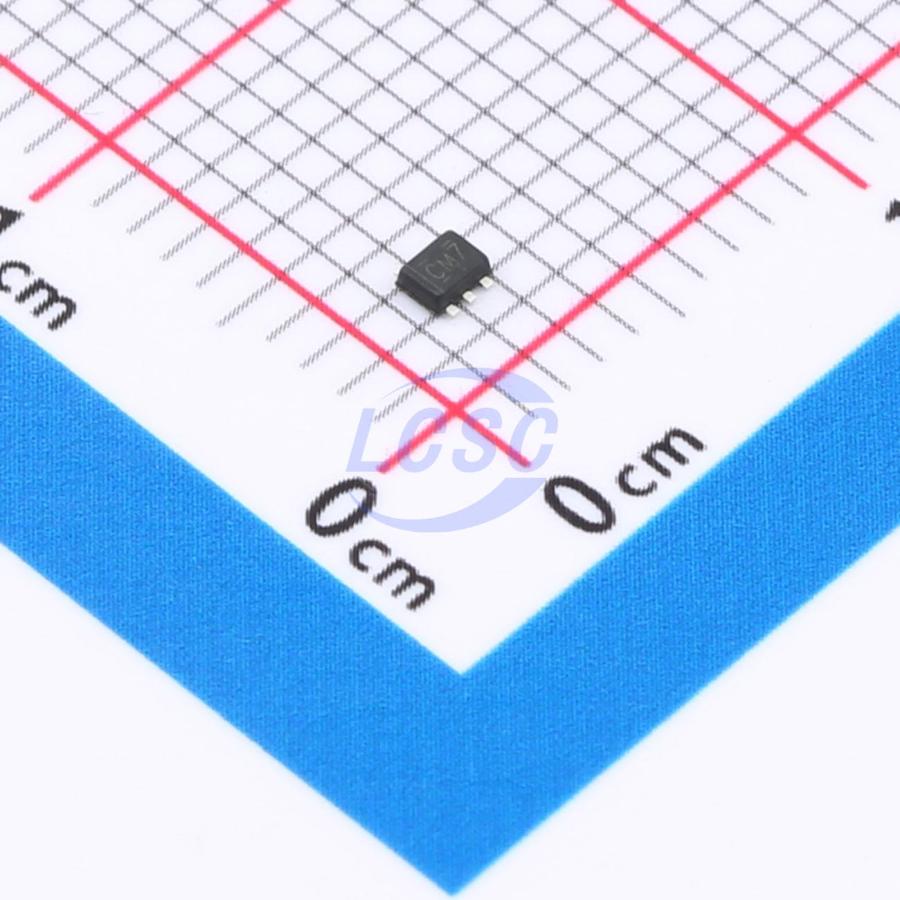

SN74LVC1G125DRLR-TP
1.65V~5.5V 1 3ns@5V,50pF SOT-553 Buffers, Drivers, Receivers, Transceivers
SOT-553RoHSActive
BUS BUFFER/LINE DRIVER 3-STATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G125DRLR-TP
- Store part #
- C48886799
- Package / case
- SOT-553
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,090 in stock
#C48886799
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.67 | ₹96.70 |
| 100+ | ₹7.61 | ₹761.00 |
| 300+ | ₹6.58 | ₹1,974.00 |
| 1,000+ | ₹5.79 | ₹5,790.00 |
| 4,000+ | ₹5.17 | ₹20,680.00 |
| 8,000+ | ₹4.87 | ₹38,960.00 |
10 × ₹9.67
₹96.70
excl. GST
₹114.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74LVC1G125DRLR-TP
₹96.70 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Output enable;Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
The SN74LVC1G125 is a single bus buffer/line driver with 3-state output. When the output enable (OE) is high, the output is disabled. Conversely, when OE is low, true data is passed from input A to output Y. The device features a power-off protection circuit that prevents damage when power is removed.
Applications
- AV Receivers
- Audio Docking Stations
- Blu-ray Players & Home Theater Systems
- Embedded PCs
- Personal Digital Assistants
- Power Supplies: Telecom/Server AC/DC
- Solid State Drives
- Wireless Headsets, Keyboards & Mice
Key features
- Operating voltage range: 1.65V to 5.5V
- Inputs tolerant up to 5.5V
- High noise immunity
- Low power consumption
- ESD protection exceeds JESD 22
- Human Body Model: 2000V (A114-A)
- Machine Model: 200V (A115-A)
- Charged Device Model: 1000V (C101)
