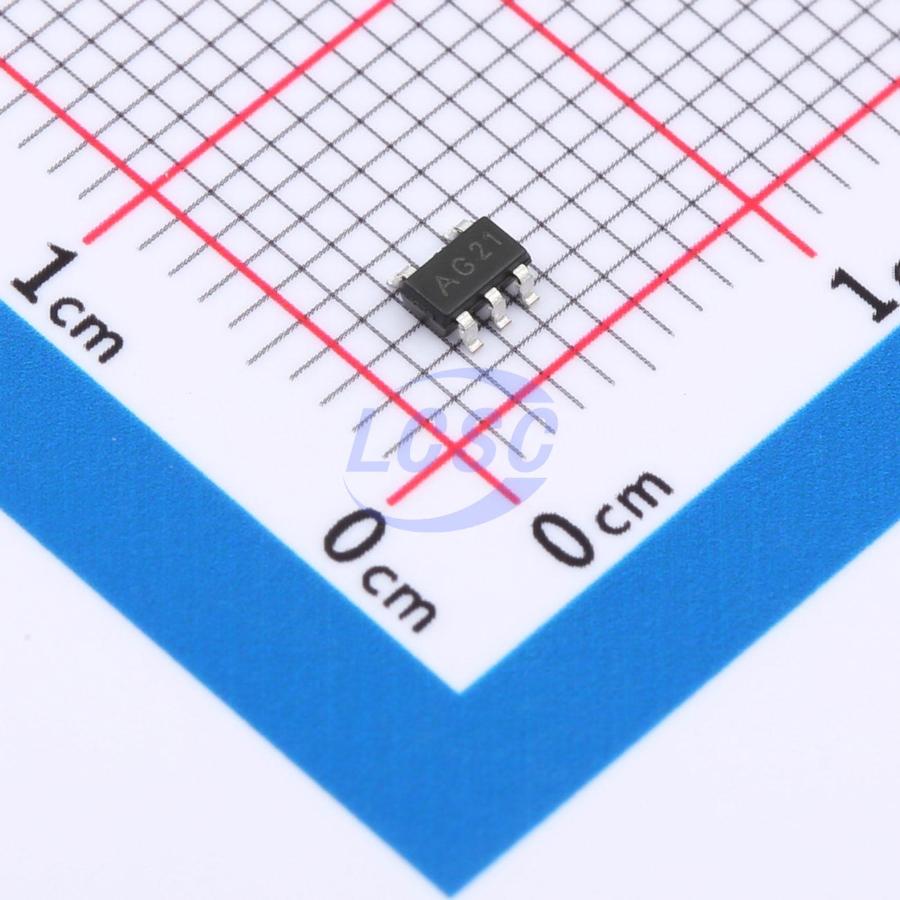

SN74LVC1G126DB(LX)
Buffer Driver Tri-State Output SOT-23-5
SOT-23-5RoHSActive
Single Buffer/Line Driver with Three-State Control SN74LVC1G126 (LX)
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LVC1G126DB(LX)
- Store part #
- C22469936
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,060 in stock
#C22469936
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.03 | ₹50.30 |
| 100+ | ₹3.97 | ₹397.00 |
| 300+ | ₹3.45 | ₹1,035.00 |
| 3,000+ | ₹3.06 | ₹9,180.00 |
| 6,000+ | ₹2.74 | ₹16,440.00 |
| 9,000+ | ₹2.58 | ₹23,220.00 |
10 × ₹5.03
₹50.30
excl. GST
₹59.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G126DB(LX)
₹50.30 for 10 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Output Type
- Tri-State
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 6ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.051 g
Overview
SN74LVC1G126 is a single buffer/line driver with 3-state output. The 3-state output is controlled by the output enable input (OE); when OE is driven low, the output enters a high-impedance state. The input is compatible with 3.3V or 5V logic levels, allowing the device to operate in mixed 3.3V/5V voltage environments.
Key features
- Supply voltage range: 1.65V~5.5V
- ±24 mA output drive (VCC = 3.0V)
- CMOS low power consumption
- 5V input compatible
- Operating temperature range: -40°C~+125°C
- Package: SOT-23-5/SOT-353
