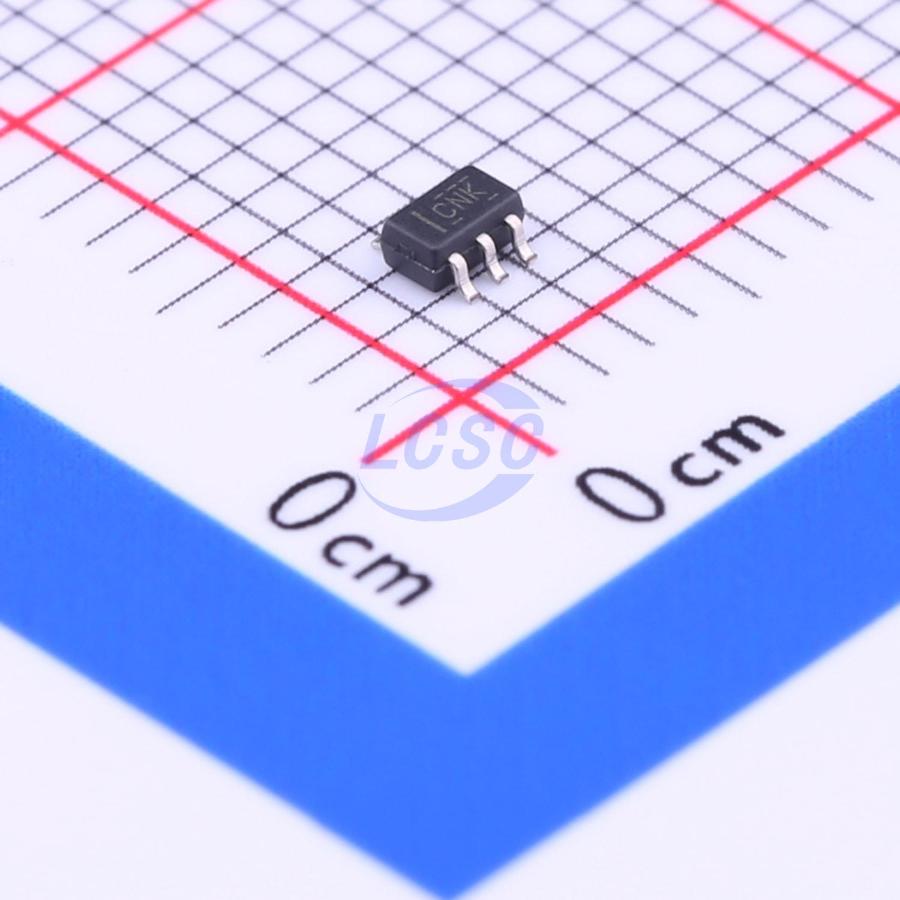

SN74LVC1G126DCKR
1.65V~5.5V 1 1 3.7ns@3.3V,15pF SC-70-5 Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-5ROHS3 CompliantActive
Single Bus Buffer Gate With 3-State Output
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G126DCKR
- Store part #
- C88039
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,020 in stock
#C88039
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.06 | ₹90.60 |
| 100+ | ₹7.54 | ₹754.00 |
| 300+ | ₹6.77 | ₹2,031.00 |
| 3,000+ | ₹5.90 | ₹17,700.00 |
| 6,000+ | ₹5.45 | ₹32,700.00 |
| 9,000+ | ₹5.23 | ₹47,070.00 |
10 × ₹9.06
₹90.60
excl. GST
₹106.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G126DCKR
₹90.60 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3.7ns@3.3V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
This single buffer is designed for 1.65-V to 3.6-V VCC operation. The LVC1G126 device is a single line driver with 3-state output. The output is disabled when the output-enable input is low.
Applications
- Cable Modem Termination Systems
- High-Speed Data Acquisition and Generation
- Power Line Communication Modems
- SSDs: Internal or External
- Video Broadcasting and Infrastructure: Scalable Platforms
- Video Broadcasting: IP-Based Multi-Format Transcoders
- Video Communication Systems
Key features
- Available in the Texas Instruments NanoFree Package
- Supports 5-V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Provides Down Translation to VCC
- Max tpd of 3.7 ns at 3.3 V
- Low Power Consumption, 10-μA Max ICC
- ±24-mA Output Drive at 3.3 V
- OFF Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model 200-V Machine Model 1000-V Charged-Device Model
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G240DCKR#C470957TI · SC-70-5 | TI | SC-70-5 | 9,500 | ₹22.61 · 9,500 in stock | View |
 | CLVC1G125IDCKREP#C2676114TI · SC-70-5 | TI | SC-70-5 | 27 | ₹340.02 · 27 in stock | View |
| CLVC1G125MDCKREP#C2652117TI · SC-70-5 | TI | SC-70-5 | 19 | ₹303.13 · 19 in stock | View | |
| SN74LVC1G125DCKT#C2675550TI · SC-70-5 | TI | SC-70-5 | 175 | ₹17.16 · 175 in stock | View | |
 | SN74LVC1G240DCKR(AT)#C54973444AOTE · SC-70-5 | AOTE | SC-70-5 | 2,990 | ₹13.23 · 2,990 in stock | View |
