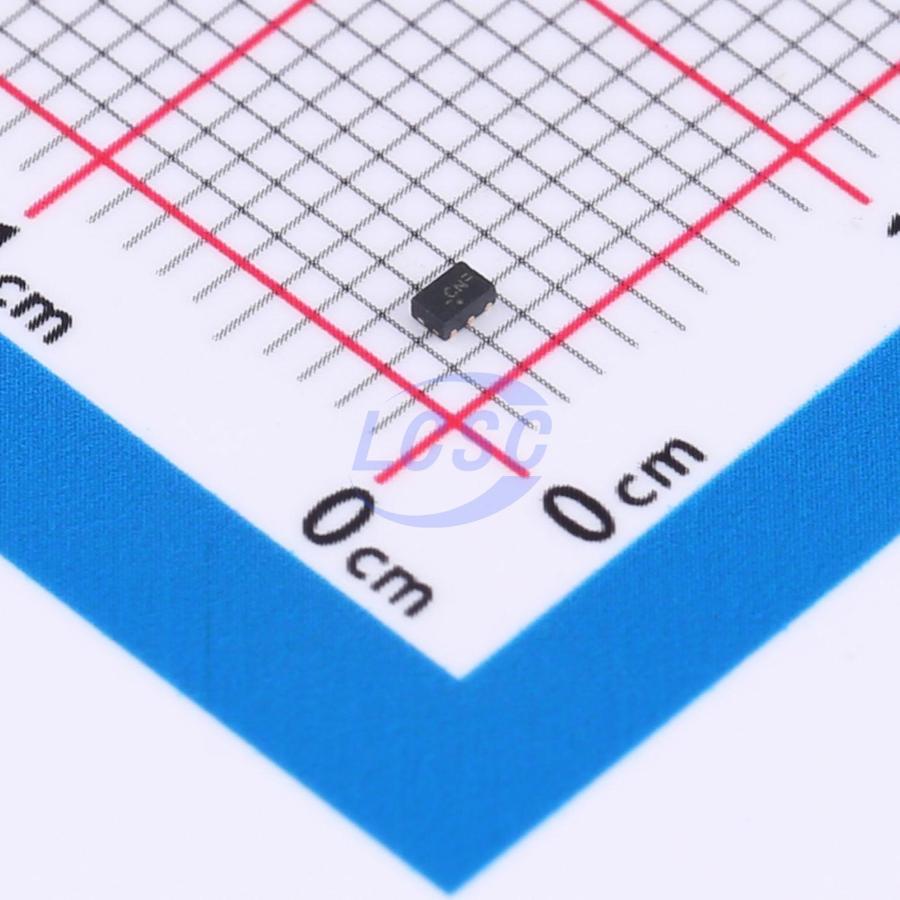

SN74LVC1G126DRYR(UMW)
Buffer DFN-6(1x1.5)
DFN-6(1x1.5)ROHS CompliantActive
IC BUFFER DFN-6(1x1.5)
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC1G126DRYR(UMW)
- Store part #
- C7598678
- Package / case
- DFN-6(1x1.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,830 in stock
#C7598678
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.17 | ₹51.70 |
| 100+ | ₹4.54 | ₹454.00 |
| 300+ | ₹4.22 | ₹1,266.00 |
| 1,000+ | ₹3.98 | ₹3,980.00 |
| 5,000+ | ₹3.80 | ₹19,000.00 |
| 10,000+ | ₹3.70 | ₹37,000.00 |
10 × ₹5.17
₹51.70
excl. GST
₹61.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SN74LVC1G126DRYR(UMW)
₹51.70 for 10 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Output Type
- Tri-State
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+85℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 5ns@3.3V,15pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
UMW SN74LVC1G126 is a high-performance single non-inverting buffer operating over a supply voltage range of 1.65V ~ 5.5V. The device is fabricated using advanced CMOS technology to achieve ultra-high speed and high output drive capability.
Key features
- Designed for 1.65V ~ 5.5V VCC operating voltage
- Overvoltage-tolerant inputs
- 24 mA balanced output sink and source current capability
- Near-zero quiescent supply current, significantly reducing system power consumption requirements
- Lead-free, RoHS compliant
- Active-low tri-state output enable input
