SN74LVC1G17DBVR

Schmitt trigger 1.65V~5.5V 1 1 4.6ns@3.3V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS

PopularSOT-23-5ROHS3 CompliantActive

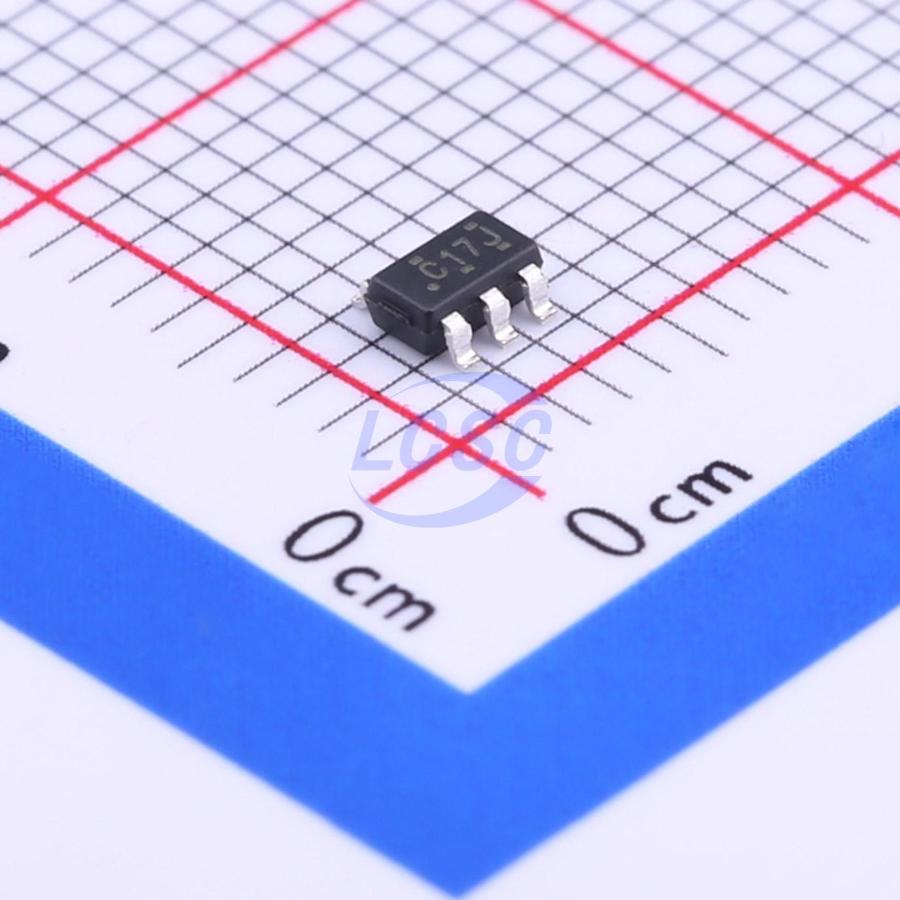

Single Schmitt-Trigger Buffer

Manufacturer: TI
Manufacturer part #: SN74LVC1G17DBVR
Store part #: C7836
Package / case: SOT-23-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

53,670 in stock

#C7836

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹22.42	₹112.10
50+	₹17.13	₹856.50
150+	₹14.54	₹2,181.00
500+	₹12.22	₹6,110.00
3,000+	₹11.59	₹34,770.00
6,000+	₹11.22	₹67,320.00

Quantity (min 5, multiples of 5)

5 × ₹22.42

₹112.10

excl. GST

₹132.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G17DBVR

₹112.10 for 5 + GST

Specifications

Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Type: Push-pull
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Function: Power-off isolation;Level shifting
Current - Output High(IOH): 32mA
Series: 74LVC
Current - Output Low(IOL): 32mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Propagation Delay: 4.6ns@3.3V,15pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.057 g

Overview

This single Schmitt-trigger buffer is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G17 device contains one buffer and performs the Boolean function Υ = A The CMOS device has high output drive while maintaining low static power dissipation over a broad Vcc operating range. The SN74LVC1G17 is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8mmx0.8mm

Applications

AV Receiver
Audio Dock: Portable
Blu-ray Player and Home Theater
MP3 Player/Recorder
Personal Digital Assistant (PDA)
Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
Solid State Drive (SSD): Client and Enterprise
TV: LCD/Digital and High-Definition (HDTV)
Tablet: Enterprise
Video Analytics: Server
Wireless Headset, Keyboard, and Mouse

Key features

Available in Ultra Small 0.64-mm² Package (DPW) With 0.5-mm Pitch
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Max tpd of 4.6 ns at 3.3 V
Low Power Consumption, 10-μA Max ICC
±24-mA Output Drive at 3.3 V
Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)

Alternatives

Similar parts — check the datasheet before substituting.
