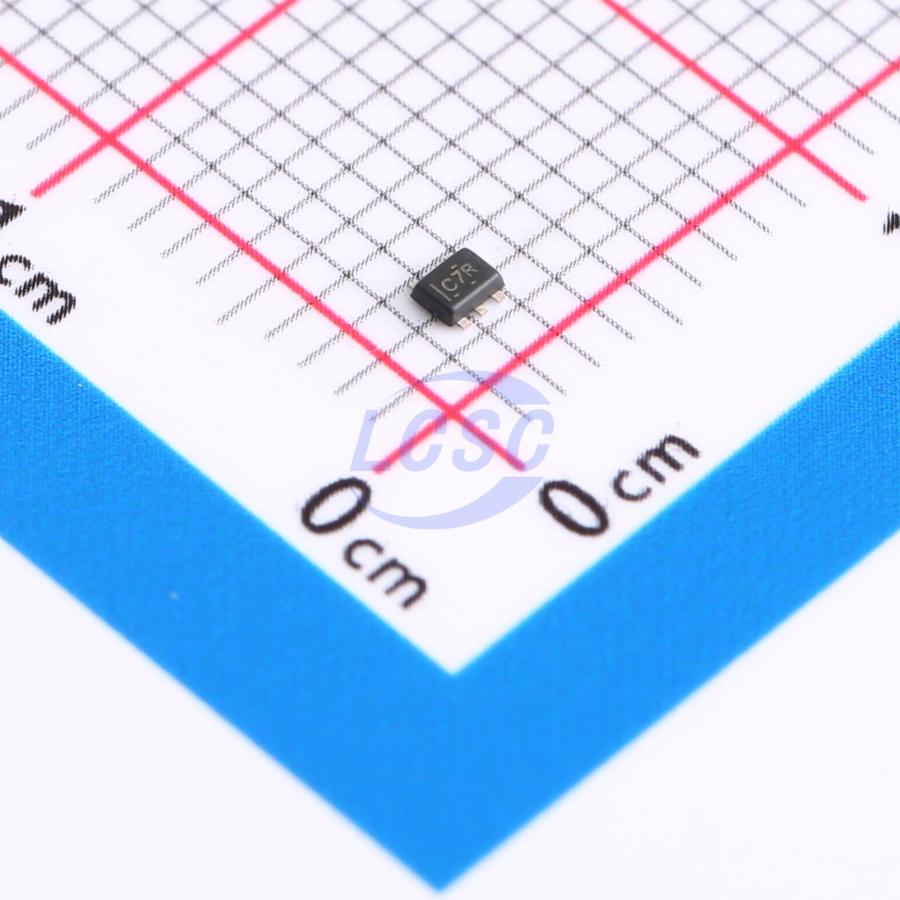

SN74LVC1G17DRLR

Buffer 1 Element 1 Bit per Element Push-Pull Output SOT-553-5

SOT-553-5ROHS3 CompliantActive

Single-channel Schmitt trigger buffer

Manufacturer: TI
Manufacturer part #: SN74LVC1G17DRLR
Store part #: C2652096
Package / case: SOT-553-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,208 in stock

#C2652096

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
1+	₹60.01	₹60.01
10+	₹48.49	₹484.90
30+	₹43.49	₹1,304.70
100+	₹37.19	₹3,719.00
500+	₹34.36	₹17,180.00
1,000+	₹32.63	₹32,630.00

Quantity (min 1)

1 × ₹60.01

₹60.01

excl. GST

₹70.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74LVC1G17DRLR

₹60.01 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Type: Push-pull
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Function: Power-off isolation;Level shifting
Current - Output High(IOH): 32mA
Series: 74LVC
Current - Output Low(IOL): 32mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Propagation Delay: 1.5ns@3.3V,15pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.027 g

Overview

This single-channel Schmitt-trigger buffer is designed for 1.65V to 5.5V VCC operation. The SN74LVC1G17 device contains one buffer and performs the Boolean function Y = A. The CMOS device features high output drive while maintaining low quiescent power dissipation across a wide VCC operating range. The SN74LVC1G17 is available in multiple packages, including the ultra-small DPW package with a footprint of 0.8mm × 0.8mm.

Applications

AV Receivers
Audio Interface Box: Portable
Blu-ray Players & Home Theater
MP3 Players/Recorders
Personal Digital Assistants (PDA)
Power Supplies: Telecom/Server AC/DC Power: Single Controller: Analog and Digital
Solid State Drives (SSD): Client and Enterprise
TVs: LCD TV/DTV and HDTV
Tablets: Enterprise
Video Analytics: Server
Wireless Headsets, Keyboards and Mice

Key features

Ultra-small 0.64mm² package (DPW) with 0.5mm pitch
5V VCC operation supported
Input voltage up to 5.5V
toff max 4.6ns at 3.3V
Low power consumption, ICC max 10μA
Output drive ±24mA at 3.3V
loff supports hot insertion, partial power-down mode, and back-drive protection
Latch-up performance exceeds JESD78 Class II spec by 100mA
ESD protection exceeds JESD22 requirements
2000V Human Body Model (A114-A)
200V Machine Model (A115-A)
1000V Charged Device Model (C101)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
NL17SZ17XV5T2G#C152502onsemi · SOT-553-5	onsemi	SOT-553-5	95	₹13.96 · 95 in stock	View
74LVC1G34Z-7#C842520DIODES · SOT-553-5	DIODES	SOT-553-5	70	₹19.58 · 70 in stock	View
SN74LVC1G34DRLR#C2872902TI · SOT-553-5	TI	SOT-553-5	725	₹25.56 · 725 in stock	View
TP74LVC1G17X5#C48543231TECH PUBLIC · SOT-553	TECH PUBLIC	SOT-553	3,970	₹11.05 · 3,970 in stock	View
SN74LVC1G126DRLR#C2675520TI · SOT-553-5	TI	SOT-553-5	94	₹92.24 · 94 in stock	View
