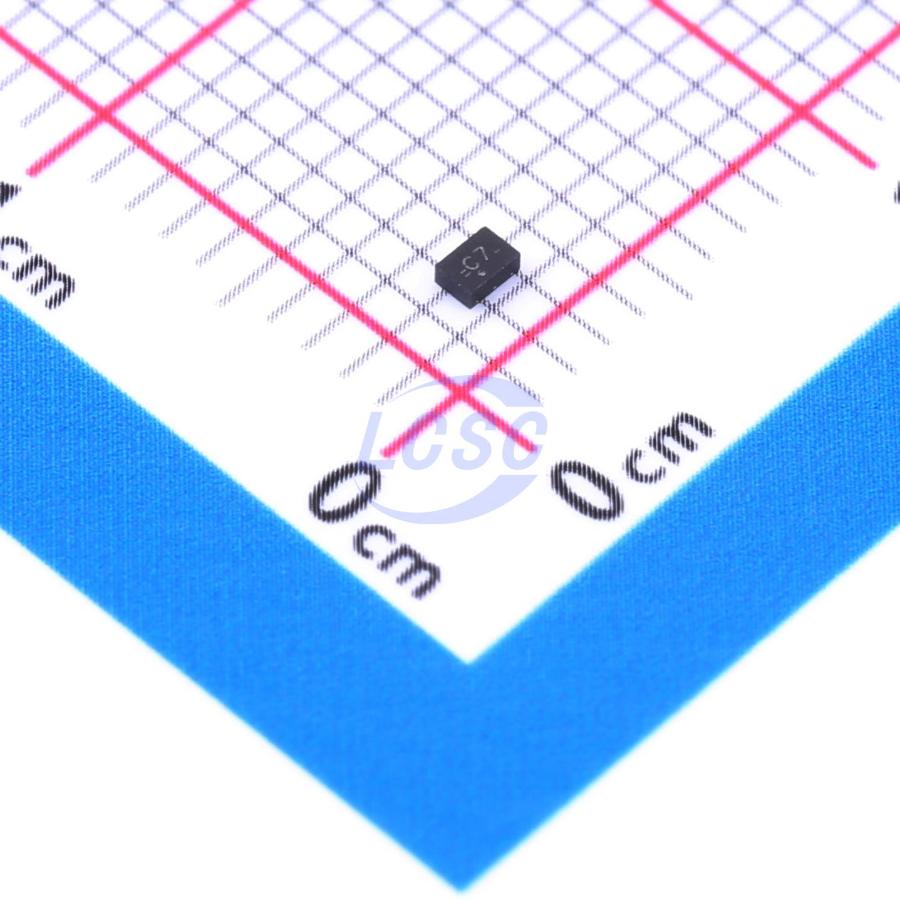

SN74LVC1G17DRYR

Buffer 1 Element 1 Bit per Element Push-Pull Output SON-6(1x1.5)

SON-6(1x1.5)ROHS3 CompliantActive

Single-channel Schmitt trigger buffer

Manufacturer: TI
Manufacturer part #: SN74LVC1G17DRYR
Store part #: C2675521
Package / case: SON-6(1x1.5)
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

175 in stock

#C2675521

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
5+	₹40.97	₹204.85
50+	₹34.90	₹1,745.00
150+	₹31.94	₹4,791.00
500+	₹29.28	₹14,640.00
2,500+	₹28.55	₹71,375.00
5,000+	₹28.11	₹1,40,550.00

Quantity (min 5, multiples of 5)

5 × ₹40.97

₹204.85

excl. GST

₹241.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

SN74LVC1G17DRYR

₹204.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Type: Push-pull
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Function: Power-off isolation;Level shifting
Current - Output High(IOH): 32mA
Series: 74LVC
Current - Output Low(IOL): 32mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Propagation Delay: 4.6ns@3.3V,15pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.01 g

Overview

This single-channel Schmitt-trigger buffer is designed for 1.65V to 5.5V VCC operation. The SN74LVC1G17 device contains one buffer and performs the Boolean function Y = A. The CMOS device features high output drive while maintaining low quiescent power dissipation across a wide VCC operating range. The SN74LVC1G17 is available in multiple packages, including the ultra-small DPW package with a footprint of 0.8mm × 0.8mm.

Applications

AV Receivers
Audio Interface Box: Portable
Blu-ray Players & Home Theater
MP3 Players/Recorders
Personal Digital Assistants (PDA)
Power Supplies: Telecom/Server AC/DC Power: Single Controller: Analog and Digital
Solid State Drives (SSD): Client and Enterprise
TVs: LCD TV/DTV and HDTV
Tablets: Enterprise
Video Analytics: Server
Wireless Headsets, Keyboards and Mice

Key features

Ultra-small 0.64mm² package (DPW) with 0.5mm pitch
5V VCC operation supported
Input voltage up to 5.5V
toff max 4.6ns at 3.3V
Low power consumption, ICC max 10μA
Output drive ±24mA at 3.3V
loff supports hot insertion, partial power-down mode, and back-drive protection
Latch-up performance exceeds JESD78 Class II spec by 100mA
ESD protection exceeds JESD22 requirements
2000V Human Body Model (A114-A)
200V Machine Model (A115-A)
1000V Charged Device Model (C101)
