XBLW

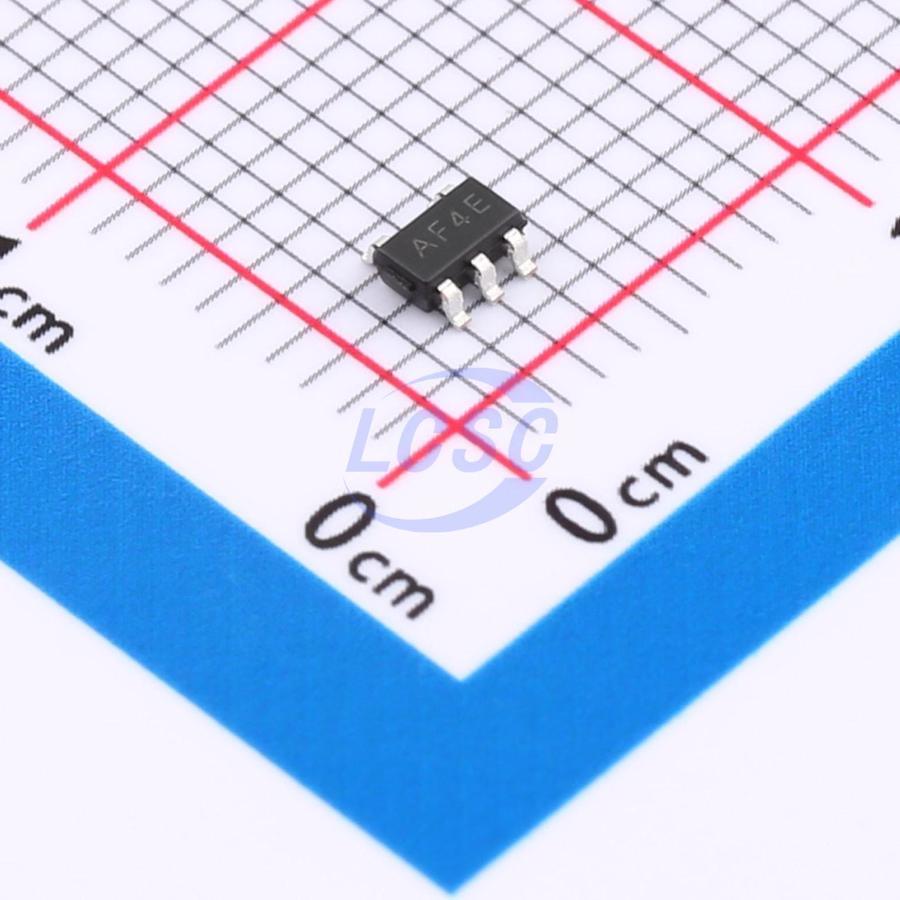

SN74LVC1G17T235(XBLW)

Schmitt trigger 1.65V~5.5V 1 7ns@4.5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-23-5ROHS CompliantActive

Single Schmitt Trigger Buffer

Manufacturer: XBLW
Manufacturer part #: SN74LVC1G17T235(XBLW)
Store part #: C41408437
Package / case: SOT-23-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,310 in stock

#C41408437

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.87	₹78.70
100+	₹6.22	₹622.00
300+	₹5.38	₹1,614.00
3,000+	₹4.76	₹14,280.00
6,000+	₹4.27	₹25,620.00
9,000+	₹4.02	₹36,180.00

Quantity (min 10, multiples of 10)

10 × ₹7.87

₹78.70

excl. GST

₹92.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G17T235(XBLW)

₹78.70 for 10 + GST

Specifications

Function: Level shifting
Current - Output High(IOH): 24mA
Input type: Schmitt trigger
Series: 74LVC
Voltage - Supply: 1.65V~5.5V
Current - Output Low(IOL): 24mA
Output Type: Push-pull
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 4uA
Propagation Delay: 7ns@4.5V,50pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.055 g

Overview

The SN74LVCiG17 provides a buffer function with Schmitt trigger input. It is capable of transforming slowly changing input signals into sharply defined outputs. The input can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment.
