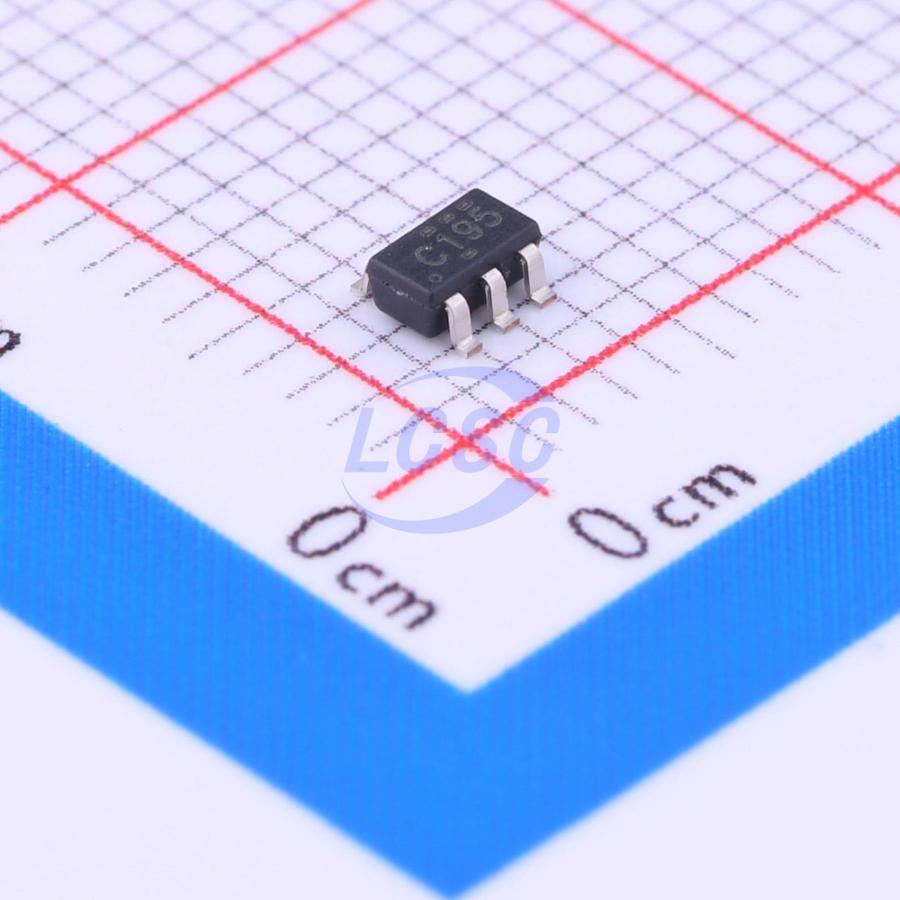

SN74LVC1G19DBVR

This decoder/demultiplexer is designed for 1.65-V to 5.5–V CC operation. The SN74LVC1G19 device is a 1-of-2 decoder / demultiplexer. When E input is high, the decoder will be disabled and both outputs will be high. When E input is low, the A input selects which output will be low. This device is fully specified for partial-power-down applications using l_off.

Applications

• AV Receivers
• Audio Docks
• Portable Blu-ray Players and Home Theater
• MP3 Players/Recorders
• Personal Digital Assistants (PDAs)
• Power: Telecom/Server AC/DC Supply
• Single Controller
• Analog and Digital Solid State Drives (SSDs)
• Client and Enterprise TVs: LCD/Digital and High-Definition (HDTVs)
• Tablets
• Enterprise Video Analytics
• Server
• Wireless Headsets, Keyboards, and Mice

Key features

• Available in the Texas Instruments NanoFree Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Supports Down Translation to VCC
• Maximum tpd of 4 ns at 3.3 V
• Low Power Consumption, 10-μA Maximum ICC
• ±24-mA Output Drive at 3.3 V
• VOLP (Output Ground Bounce) < 0.8 V Typical at VCC = 3.3 V, TA = 25°C
• VOHV (Output VOH Undershoot) > 2 V Typical at VCC = 3.3 V, TA = 25°C
• l_off Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 2000-V Human Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
