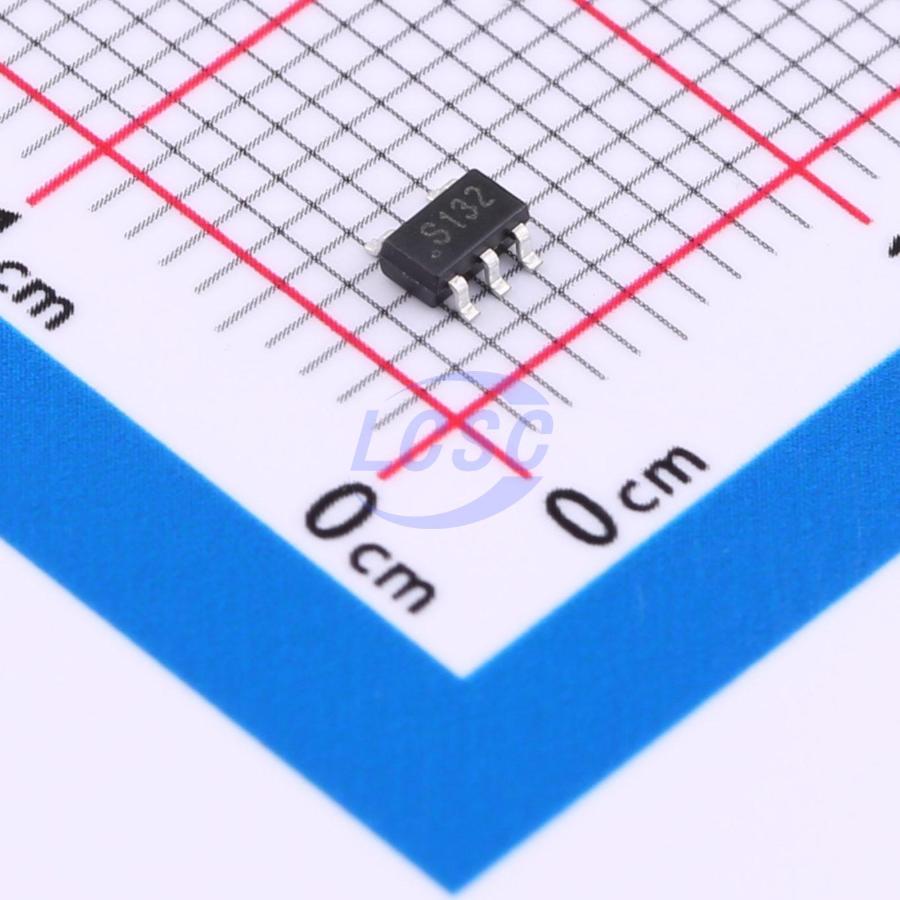

TP74LVC1G32S5
10uA 1.65V~5.5V 8ns@5V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE 2-INPUT POSITIVE-OR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G32S5
- Store part #
- C42460139
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C42460139
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.55 | ₹75.50 |
| 100+ | ₹5.97 | ₹597.00 |
| 300+ | ₹5.19 | ₹1,557.00 |
| 1,000+ | ₹4.59 | ₹4,590.00 |
| 5,000+ | ₹4.11 | ₹20,550.00 |
| 10,000+ | ₹3.88 | ₹38,800.00 |
10 × ₹7.55
₹75.50
excl. GST
₹89.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC1G32S5
₹75.50 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- 74LVC
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 450mV;600mV;800mV
- Propagation Delay
- 8ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The TP74LVC1G32 is a single 2-input OR gate which provides the Function Y = A + B in positive logic circuit. This device has power-down protective circuit.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power: Telecom/Server AC/DC Supply: Single
- Controller: Analog and Digital
- Solid State Drive(SSD): Client and Enterprise
- Wireless Headset, Keyboard, and Mouse
Key features
- Operate from 1.65V to 5.5V
- Low Power Current: Icc = 10μA (Max.)
- ±24mA Output Drive (VCC = 3.0V)
- Power Down Protection
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
