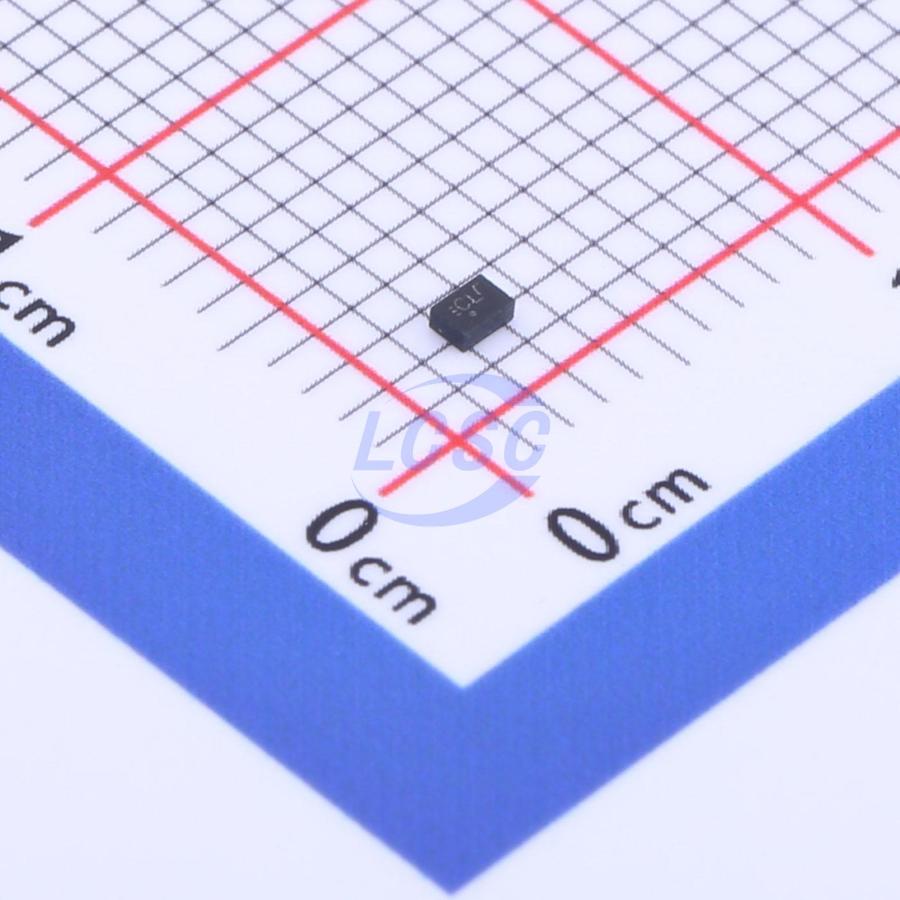

SN74LVC1G57DRYR
Configurable Multifunction Gate IC 1 Channel USON-6(1x1.5)
USON-6(1x1.5)ROHS3 CompliantActive
Configurable Multiple-Function Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G57DRYR
- Store part #
- C2682092
- Package / case
- USON-6(1x1.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2682092
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.47 | ₹157.35 |
| 50+ | ₹24.71 | ₹1,235.50 |
| 150+ | ₹21.41 | ₹3,211.50 |
| 500+ | ₹18.46 | ₹9,230.00 |
| 2,500+ | ₹17.65 | ₹44,125.00 |
| 5,000+ | ₹17.17 | ₹85,850.00 |
5 × ₹31.47
₹157.35
excl. GST
₹185.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SN74LVC1G57DRYR
₹157.35 for 5 + GST
Specifications
- Logic Family
- 74LVC Series
- Input type
- Schmitt trigger
- Propagation Delay
- 6.3ns@3.3V,50pF
- Current - Output Low(IOL)
- 32mA
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Voltage - Supply
- 1.65V~5.5V
- Features
- Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Number of Gates
- 1
- Output Logic Level - Low
- 450mV;300mV;400mV~450mV;550mV~580mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G98DRYR#C2682096TI · SON-6(1x1.5) | TI | SON-6(1x1.5) | 749 | ₹24.65 · 749 in stock | View |
| 74LVC1G58GM,115#C548395Nexperia · XSON-6(1x1.5) | Nexperia | XSON-6(1x1.5) | 4,275 | ₹13.39 · 4,275 in stock | View | |
 | 74LVC1G57GM,115#C548386Nexperia · XSON-6(1x1.5) | Nexperia | XSON-6(1x1.5) | 3,070 | ₹18.97 · 3,070 in stock | View |
 | SN74LVC1G97DRYR#C133546TI · SON-6(1x1.5) | TI | SON-6(1x1.5) | On request | Price on request | Quote |
| SN74LVC1G57DRY2#C2868436TI · SON-6(1x1.5) | TI | SON-6(1x1.5) | On request | Price on request | Quote | |
