TIDatasheet (PDF)

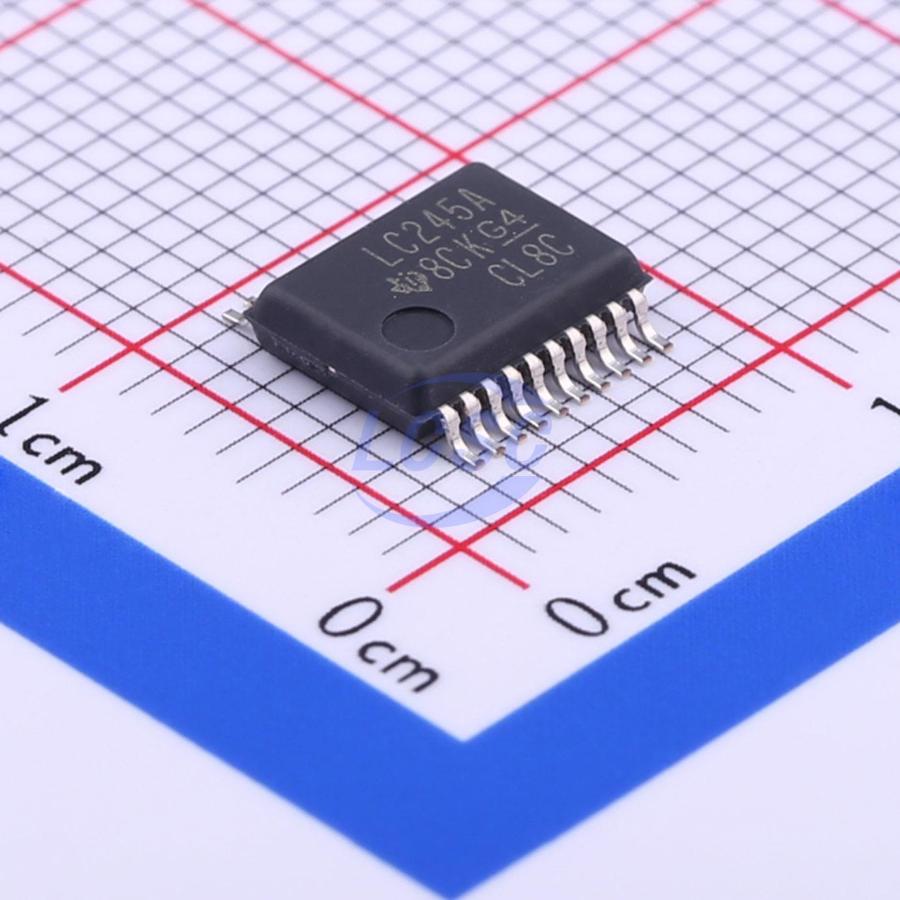

SN74LVC245ADBR
1.65V~3.6V 8 1 3.8ns@3.3V,50pF SSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
SSOP-20ROHS3 CompliantActive
Octal Bus Transceiver With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC245ADBR
- Store part #
- C393617
- Package / case
- SSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,826 in stock
#C393617
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.66 | ₹82.66 |
| 10+ | ₹68.73 | ₹687.30 |
| 30+ | ₹62.64 | ₹1,879.20 |
| 100+ | ₹55.25 | ₹5,525.00 |
| 500+ | ₹51.99 | ₹25,995.00 |
| 1,000+ | ₹48.08 | ₹48,080.00 |
1 × ₹82.66
₹82.66
excl. GST
₹97.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LVC245ADBR
₹82.66 for 1 + GST
Specifications
- Voltage - Supply
- 1.65V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Propagation Delay
- 3.8ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.163 g
Overview
These octal bus transceivers are designed for 1.65-V to 3.6-V VCC operation. The ’LVC245A devices are designed for asynchronous communication between data buses.
Applications
- Cable Modem Termination Systems
- Servers
- LED Displays
- Network Switches
- Telecom Infrastructure
- Motor Drivers
- I/O Expanders
Key features
- Operates From 1.65 V to 3.6 V
- Inputs Accept Voltages to 5.5 V
- Max tpd of 6.3 ns at 3.3 V
- Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃
- IOFF Supports Live Insertion, Partial-Power-Down Mode and Back Drive protection
- Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V VCC)
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model 1000-V Charged-Device Model
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVCH245ADBR#C2675761TI · SSOP-20-208mil | TI | SSOP-20-208mil | 64 | ₹107.73 · 64 in stock | View |
| 74LVC245ADB653#C3754192Nexperia · SSOP-20 | Nexperia | SSOP-20 | On request | ₹30.67 · 0 in stock | View | |
| 74LVC2245ADB,118#C548493Nexperia · SSOP-20-208mil | Nexperia | SSOP-20-208mil | On request | ₹86.64 · 0 in stock | View | |
