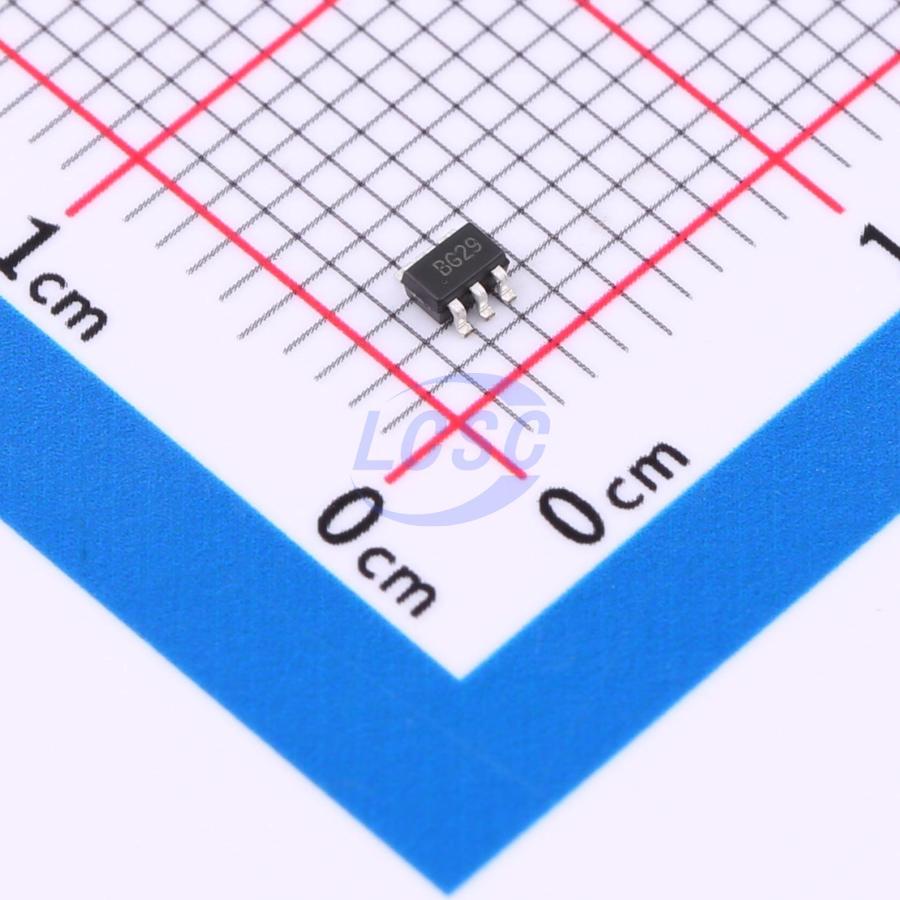

SN74LVC2G07DC(LX)
1.65V~5.5V 1 2 9.1ns@3V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
Dual Buffer (Open-drain)
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LVC2G07DC(LX)
- Store part #
- C22469955
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,520 in stock
#C22469955
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.94 | ₹89.40 |
| 100+ | ₹7.08 | ₹708.00 |
| 300+ | ₹6.14 | ₹1,842.00 |
| 3,000+ | ₹5.44 | ₹16,320.00 |
| 6,000+ | ₹4.87 | ₹29,220.00 |
| 9,000+ | ₹4.59 | ₹41,310.00 |
10 × ₹8.94
₹89.40
excl. GST
₹105.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2G07DC(LX)
₹89.40 for 10 + GST
Specifications
- Function
- Level shifting
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 9.1ns@3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
The SN74LVC2G07 provides two non-inverting buffers. The output of this device is an open drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment.
Applications
- Mixed 3.3V and 5V environments
- Active-low wired-OR function implementation
- Active-high wired-AND function implementation
Key features
- Wide supply voltage range from 1.65V to 5.5V
- 5V tolerant inputs for interfacing with 5V logic
- -24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Specified from -40°C to +125°C
