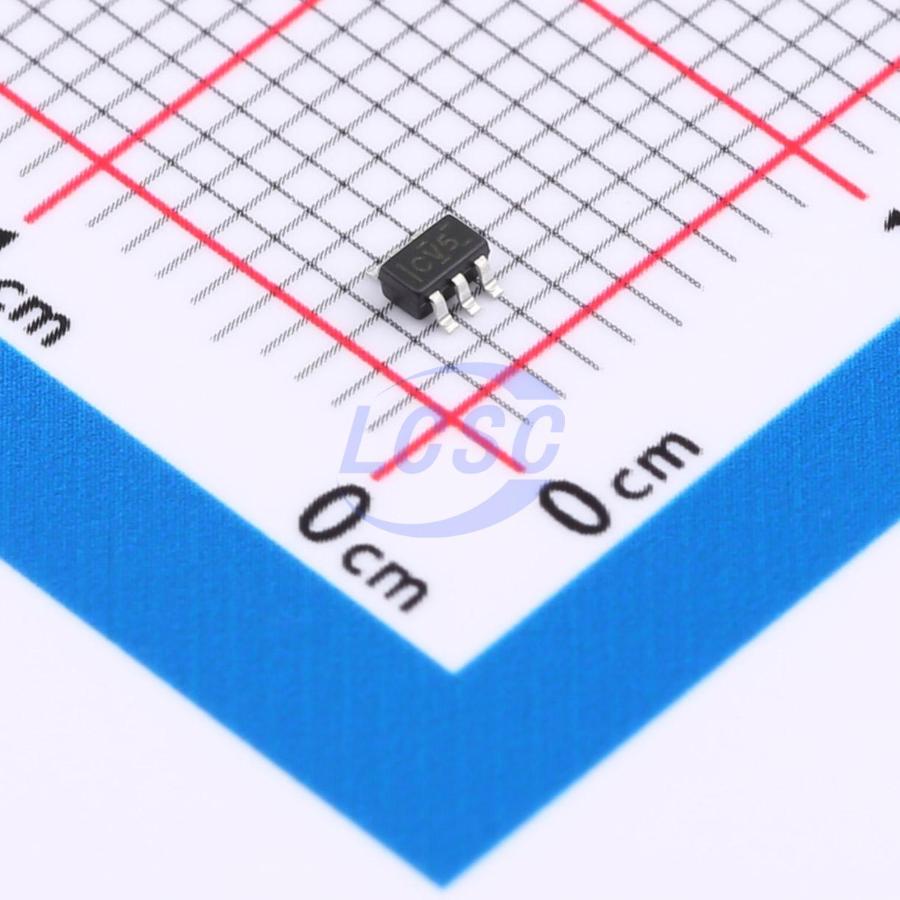

SN74LVC2G07DCKR(UMW)
1.65V~5.5V 1 2 2.3ns@5V,50pF SC70-6 Buffers, Drivers, Receivers, Transceivers RoHS
SC70-6ROHS CompliantActive
Dual buffer, open-drain output
- Manufacturer
- UMW
- Manufacturer part #
- SN74LVC2G07DCKR(UMW)
- Store part #
- C7394023
- Package / case
- SC70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,070 in stock
#C7394023
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.67 | ₹46.70 |
| 100+ | ₹4.07 | ₹407.00 |
| 300+ | ₹3.77 | ₹1,131.00 |
| 3,000+ | ₹3.55 | ₹10,650.00 |
| 6,000+ | ₹3.37 | ₹20,220.00 |
| 9,000+ | ₹3.28 | ₹29,520.00 |
10 × ₹4.67
₹46.70
excl. GST
₹55.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2G07DCKR(UMW)
₹46.70 for 10 + GST
Specifications
- Function
- Level shifting
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -55℃~+125℃
- Number of Elements
- 2
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 2.3ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.073 g
Overview
UMW SN74LVC2G07 is a high-performance dual buffer with open-drain outputs, operating over a supply voltage range of 1.65V to 5.5V. The internal circuit consists of multiple stages, including an open-drain output stage. The open-drain outputs allow users to set the output switching level to a selectable value via external resistors and supply voltage. The logic-high output level is determined by the external supply and can be less than, equal to, or greater than the VCC supply voltage, provided it does not exceed 5.5V.
Key features
- Ultra-high speed: t_PD typical 2.3 ns at V_CC = 5 V
- Designed for 1.65 V to 5.5 V V_CC operation, CMOS compatible
- Overvoltage-tolerant inputs
- LVTTL compatible — interfaces with 5 V TTL logic at V_CC = 3 V
- LVC compatible
- 24 mA output sink current capability
- Near-zero quiescent supply current, significantly reducing system power consumption requirements
- Device complexity: FET=72; equivalent gates=18
- Lead-free, RoHS compliant
