MSKSEMI

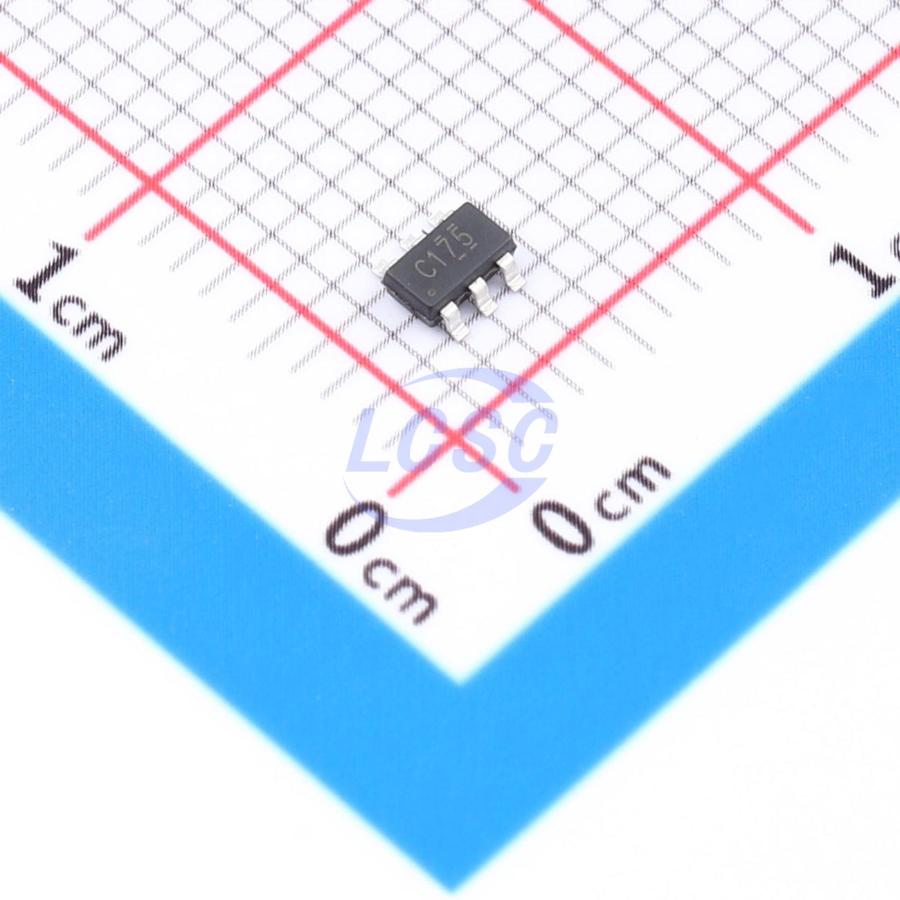

SN74LVC2G17DBVR-MS

Schmitt trigger 1.65V~5.5V 1 2 2.2ns@3.3V,50pF SOT-23-6 Buffers, Drivers, Receivers, Transceivers

SOT-23-6RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: SN74LVC2G17DBVR-MS
Store part #: C52988858
Package / case: SOT-23-6
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,700 in stock

#C52988858

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹10.19	₹101.90
100+	₹8.10	₹810.00
300+	₹7.06	₹2,118.00
3,000+	₹6.28	₹18,840.00
6,000+	₹5.66	₹33,960.00
9,000+	₹5.34	₹48,060.00

Quantity (min 10, multiples of 10)

10 × ₹10.19

₹101.90

excl. GST

₹120.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC2G17DBVR-MS

₹101.90 for 10 + GST

Specifications

Input type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Function: Power-off isolation;Level shifting
Current - Output High(IOH): 32mA
Series: 74LVC
Current - Output Low(IOL): 32mA
Number of Bits per Element: 1
Number of Elements: 2
Propagation Delay: 2.2ns@3.3V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.044 g

Overview

The SN74LVC2G17 dual Schmitt-trigger buffer operates over a voltage range of 1.65V to 5.5V. The device contains two buffers that perform the Boolean function Y = A. Due to the Schmitt-trigger inputs, the device may have different input threshold levels for rising-edge (VT+) and falling-edge (VT−) signals, providing hysteresis (ΔVT), which enables the device to tolerate slow or noisy input signals. The device is fully compatible with partial power-down applications using Ioff. The Ioff circuit disables the outputs, preventing damaging current backflow when the device is powered down.
