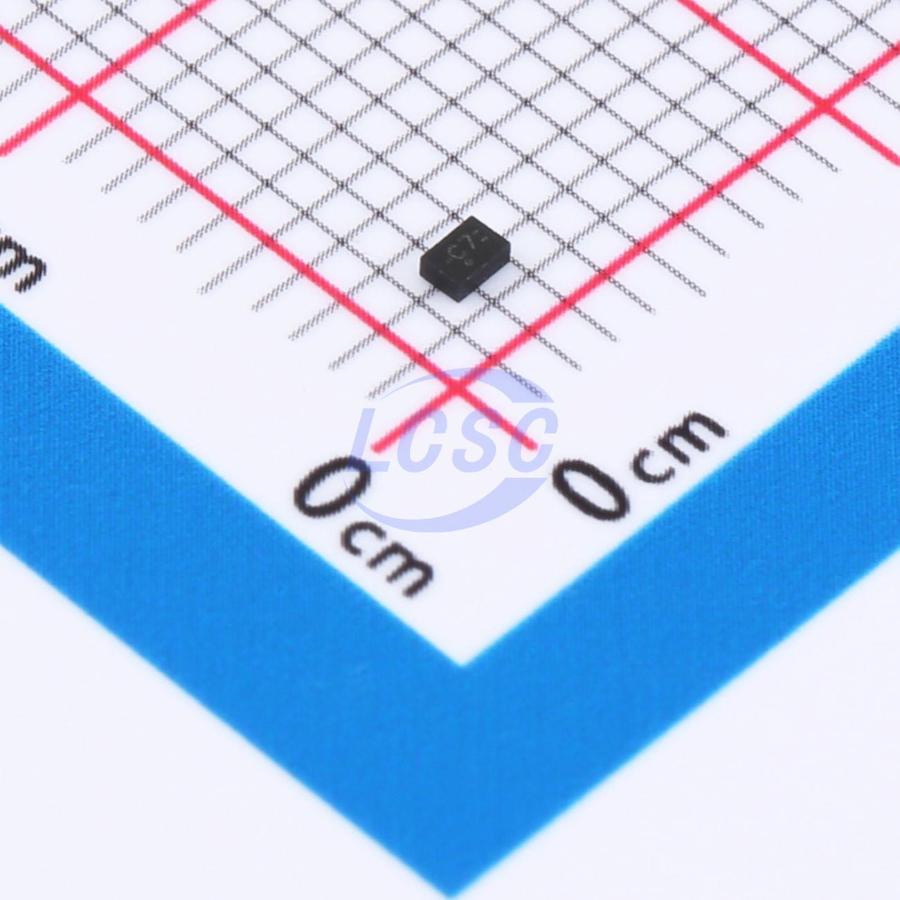

SN74LVC2G17DRYR
Schmitt trigger 1.65V~5.5V 2 2 2.2ns@3.3V,50pF DFN-6(1x1.5) Buffers, Drivers, Receivers, Transceivers
DFN-6(1x1.5)RoHSActive
DUAL SCHMITT-TRIGGER BUFFER
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC2G17DRYR
- Store part #
- C42370552
- Package / case
- DFN-6(1x1.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,190 in stock
#C42370552
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.64 | ₹86.40 |
| 100+ | ₹6.84 | ₹684.00 |
| 300+ | ₹5.93 | ₹1,779.00 |
| 1,000+ | ₹5.25 | ₹5,250.00 |
| 5,000+ | ₹4.71 | ₹23,550.00 |
| 10,000+ | ₹4.43 | ₹44,300.00 |
10 × ₹8.64
₹86.40
excl. GST
₹101.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SN74LVC2G17DRYR
₹86.40 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 2
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 2.2ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.018 g
Overview
A high-performance, low-power, low-voltage, Sigate CMOS device which provides two independent buffers with Schmitt trigger action. It is capable of transforming slowly changed input signals into sharply defined, jitter-free output signals.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
Key features
- Wide Supply Voltage Range From 1.65V To 5.5V
- 5 V tolerant input/output for interfacing with 5 V logic
- ±24-mA Output Drive at 3.3 V
- Latch-up performance exceeds 100mA
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
